VIZIO VX32L HDTV20A User Manual
Version 5/20/2008
www.VIZIO.com
23

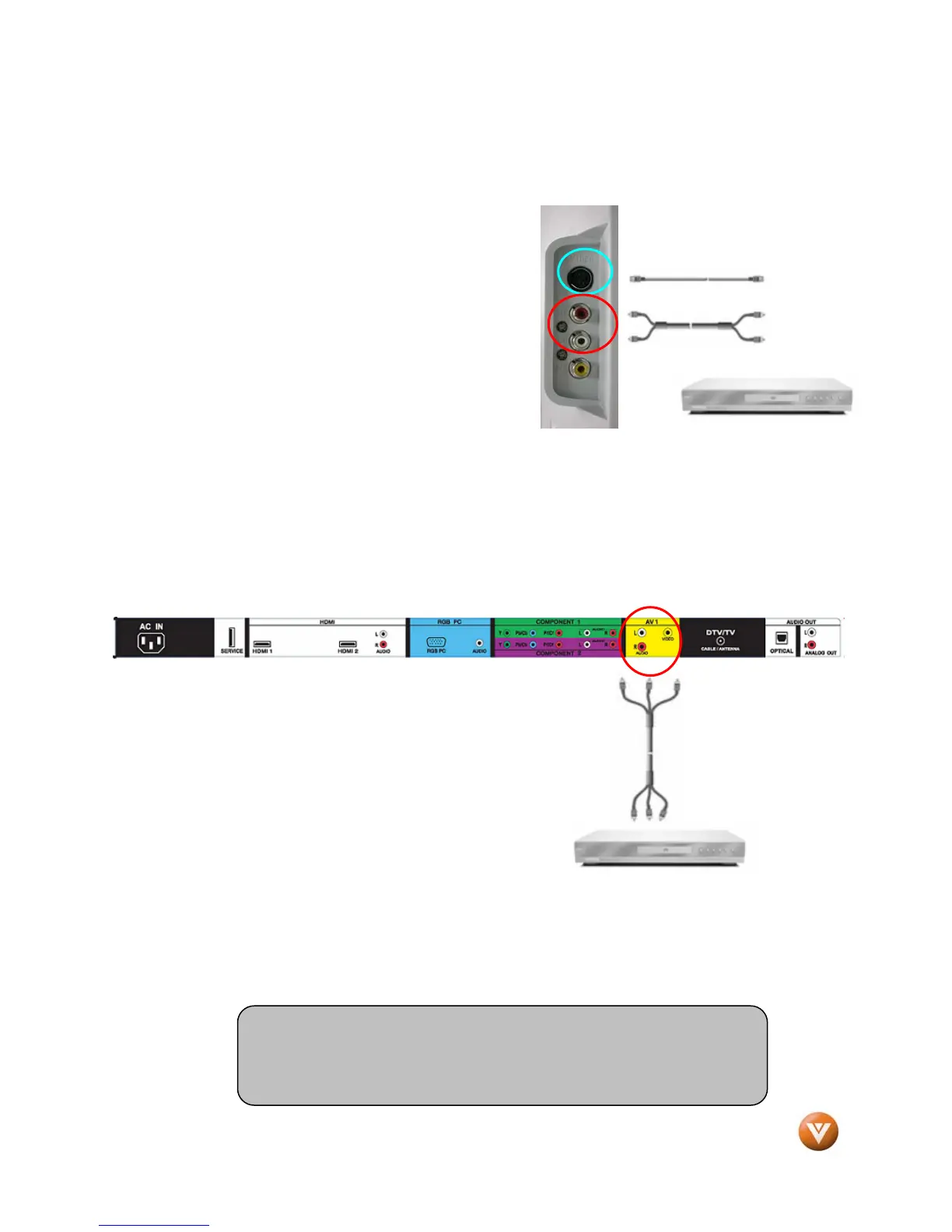

2.5.3 Using S-Video (AV2)
Connecting your DVD Player (Good):
1. Turn off the power to the HDTV and DVD player.
2. Connect the S-Video jack on the rear of your
DVD player to the S-Video jack in the AV2
group on the side of the HDTV.
3. Connect an audio cable (white and red
connectors) to the audio output connectors
associated with the S-Video output on your
DVD player and connect the other end to the
audio connectors associated with the AV2 input
on the side of the HDTV.
4. Turn on the power to the HDTV and DVD player.
5. Select AV2 using the INPUT button on the remote or side of the HDTV, or directly by
pressing the AV button on the Remote Control.
2.5.4 Using Composite (AV1, AV2) Video
Connecting your DVD Player (Good)
1. Turn off the power to the HDTV and DVD player.
2. Connect the Video (yellow color) connector on your
DVD player to the Video (yellow color) connector in the
AV1 group (yellow color area) at rear of the TV.
3. Connect the R (red color) and L (white color) audio
connectors on your DVD player to the
corresponding R (red color) and L (white color)
audio input connectors in the AV1 group (yellow
color area).
4. Turn on the power to the HDTV and DVD Player.
5. Select AV1 using the INPUT button on the remote or side of the HDTV, or directly by
pressing the AV button on the Remote Control.
6. If AV1 input is being used, use AV2 as the input and follow steps 1 through 4; and then select
AV2 in step 5.
Note:
Refer to your DVD player user manual for more information about
the video output requirements of the product.
