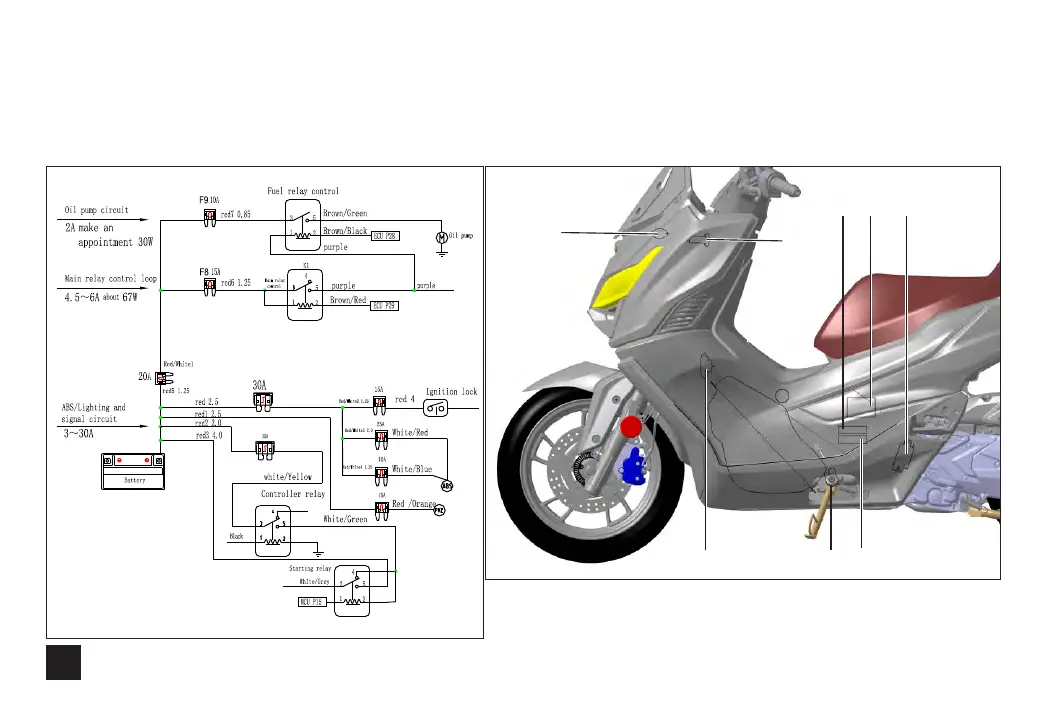

The simplified diagram of 4 fuses is show as below (The power supply of this model divides to 6 branches, in which each gets
power from positive terminal of battery, and each branch has its own fuse who are mutually independent without influence)
14. Fuse box
15 .Controlling relay
16 .Ignition coil
17 .Kill switch on side stand
18 .Horn
19 .Alarm of horn
20 USB power socket
21 Starting relay
F1
F2
F3
F4
F6
F5
F7
20
19
14
21
17
16
18
15
