Vogelsang VX186Q - Fig. 25: Components of Lobe Puller with Stabilisation

Repair
WBV.PU.002.EN VX186Q V2.0
63
VX186-368/390Q: part no. PBA.A001.T2
Alternatively:
Combination tool for lobe change and cartridge mechanical seal change for pump sizes
VX186-368/390Q: part no. PBA.A033.T2
1
Hexagon head bolt
2
Puller arm
3
Pressure rod
4
Stabilisation
5
Wing nut

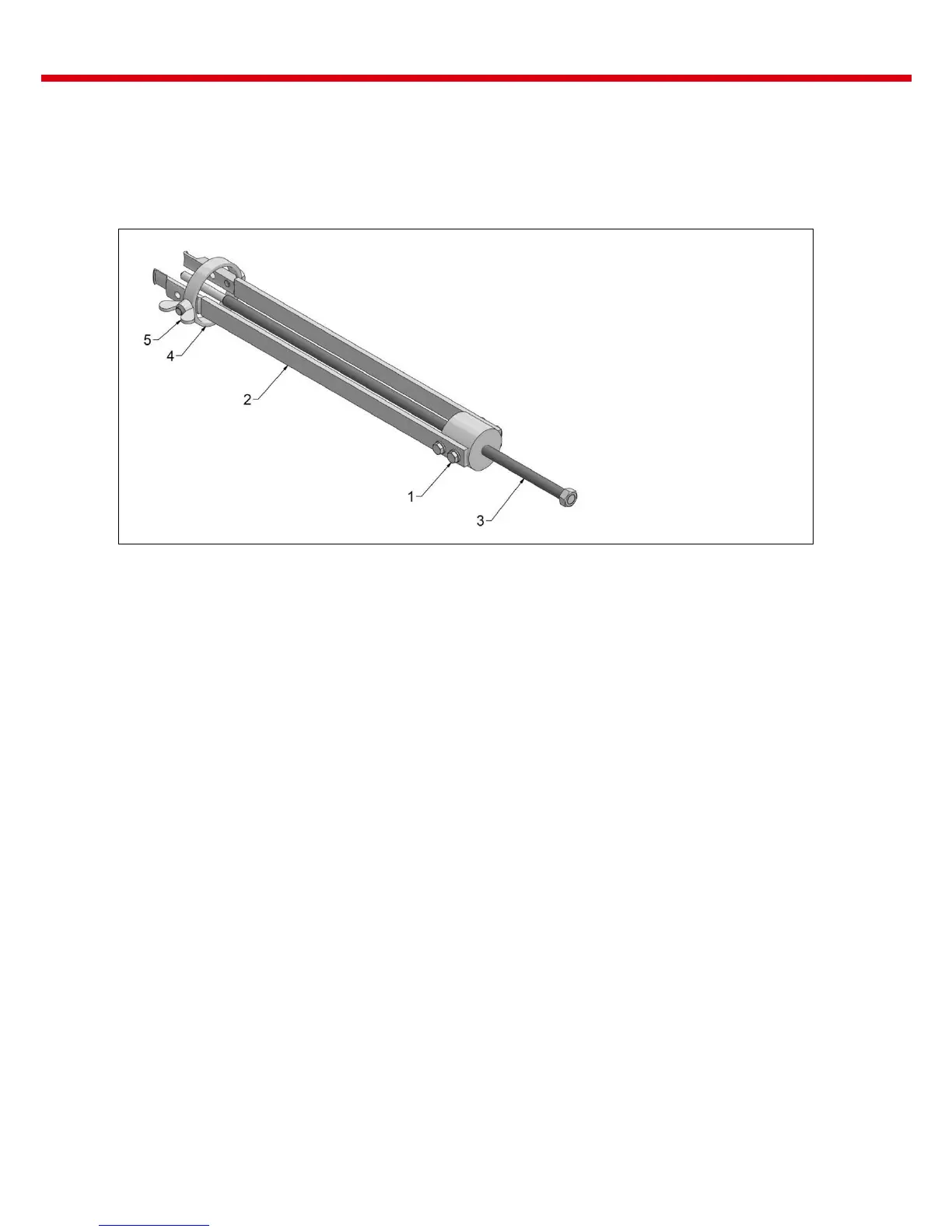

Fig. 25: Components of lobe puller with stabilisation
1. Undo the four hexagon head bolts (1) and the wing nut (5) so that the puller arms (2) can be moved.
2. Hook the two puller arms (2) into the groove provided on the lobe  Fig. "Hooking puller arm into
lobe".
3. Tighten the wing nut (5) and hexagon head bolts (1) with approx. 50 Nm.
4. Tighten the pressure rod (3) to dismount the lobe  Fig. "Pulling out the lobes with lobe puller".
