9.5 Change of wear plates
ATTENTION
The wear plates have a defined curvature. To prevent premature wear by the rotary lobes, the correct
installation position of the wear plate must be observed during installation  Fig. "Installation position of the
curved wear plates".
Tightening torque
Wear plate screws: 40 Nm
(1) Wear plate on the gearbox
(2) Wear plate on the cover
(3) Hexagon head screw with microencapsulation

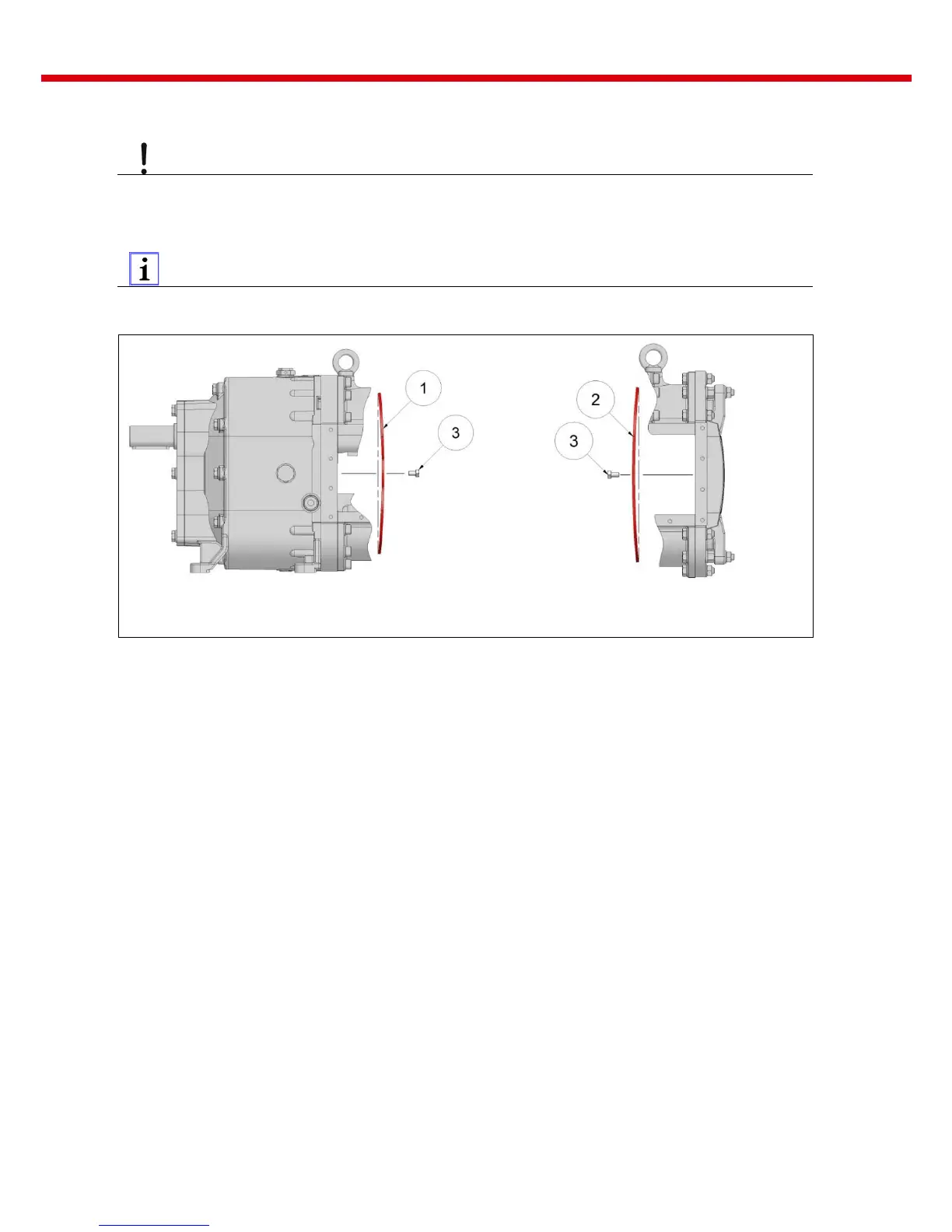

Fig. 28: Installation position of the curved wear plates
