Vogelsang VX215QD - Fig. 20: Gear Oil Change

Maintenance
52
WBV.PU.002.EN VX215QD V2.0
Upright installation
Horizontal installation
Vertical installation
Suspended installation

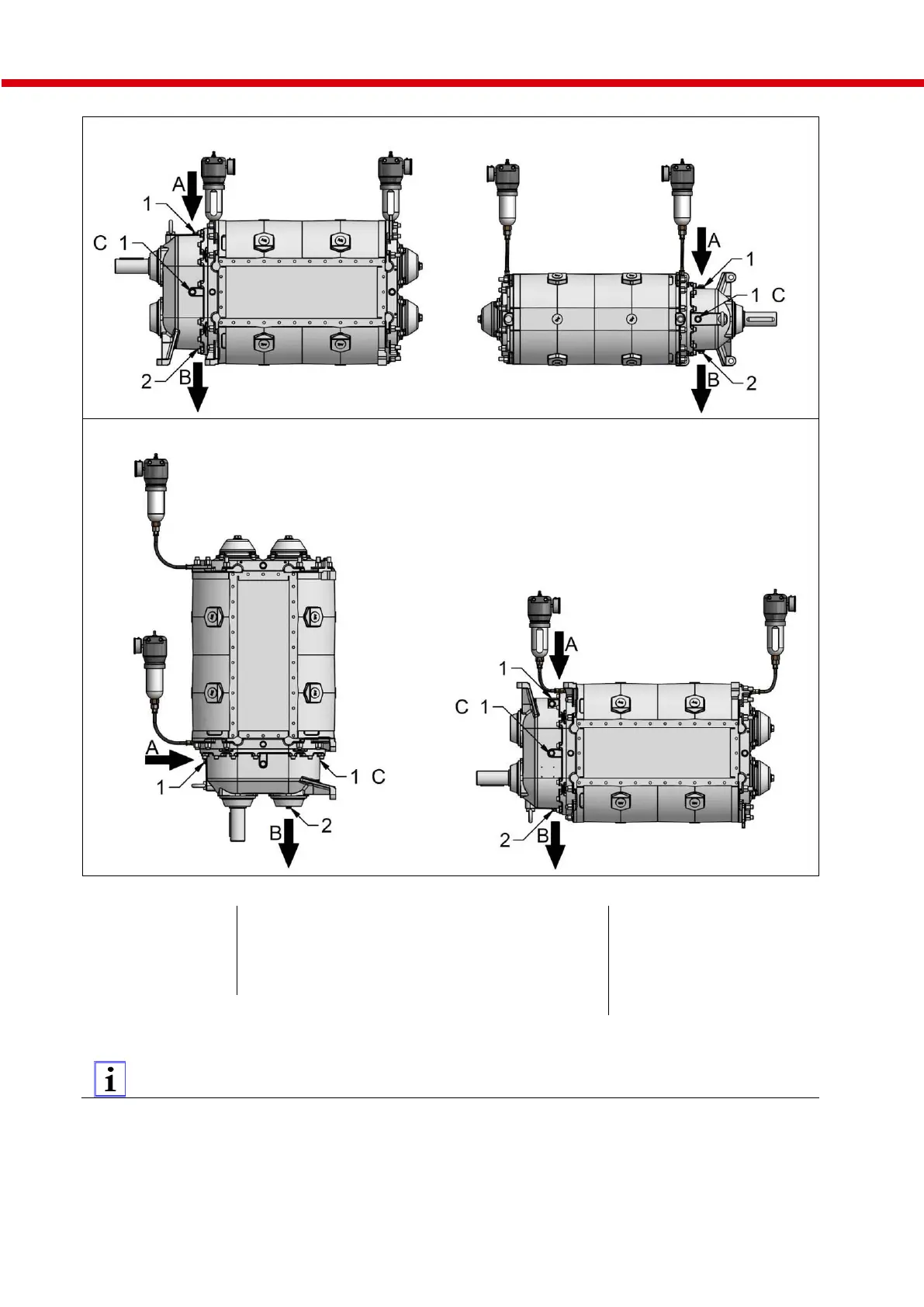

Fig. 20: Gear oil change
1
Screw
plug
A
Filling
2
Magnetic
screw
plug
B
Draining
C
Checking
The screw plug 1 must be at the top, the magnetic screw plug 2 must be at the bottom.
Tightening torque
ut @ 39\mod_1 25931521040 0_6.doc @ 14147 2 @
Tightening torque for mounting the screw plugs  60 Nm
