Vogt
®
VT Service Manual 9-3
Additional Product Information
Remote Switch Box
VT Remote Switch Box (Optional)
This small control panel (box) consists of Ice/Off/Clean selector switch, a Manual Harvest/Start button and two
indicator lights (power & fault) and can be added to any VT machine. This panel will contain both 208/230VAC
and 24VDC. Remote switch box for CE approved machines will have an Emergency Stop button.
Remote Switch Box Parts
PART # DESCRIPTION
R-PB1 12A7500E56 PUSH BUTTON, MOMENTARY, GREEN
12A7500E75 CONTACT BLOCK, 1 N.O. W/MOUNTING LATCH
R-PB2 12A7500E130 E-STOP, PUSH-PULL, RED (CE MACHINE ONLY)
12A7500E76 CONTACT BLOCK, 1 N.C. W/MOUNTING LATCH (CE MACHINE ONLY)
R-SS 12A7500E61 3 POS. SELECTOR SWITCH OPERATOR
12A7500E73 CONTACT BLOCK, 2 N.O. W/MOUNTING LATCH
R-1LT 12A7520E33 INDICATOR LIGHT, 250V, RED LENSE
R-2LT 12A7520E34 INDICATOR LIGHT, 250V, AMBER LENSE

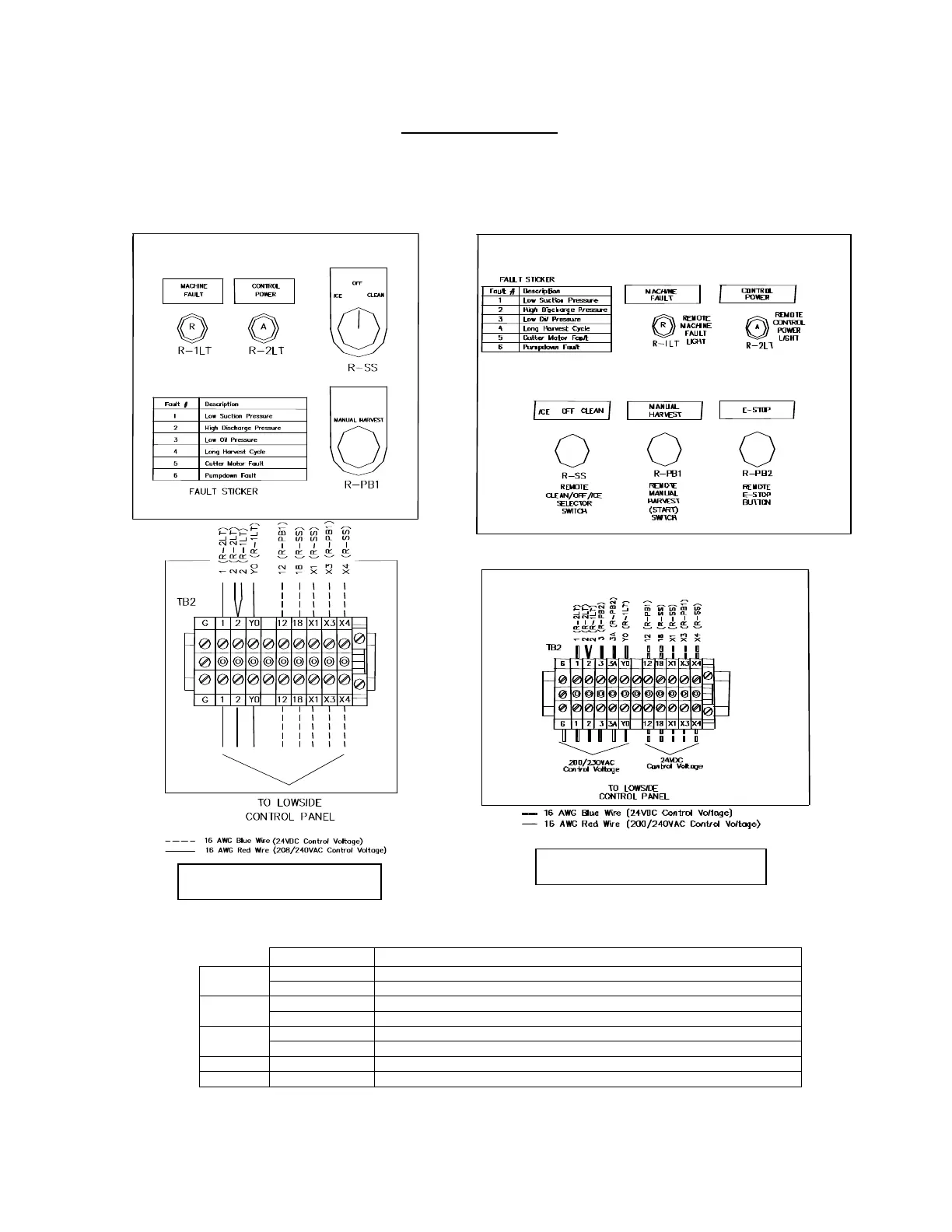

FIGURE 9-1
Remote Switch Box Layout
Standard
