Vogt VT40 Service Manual

8-10 Vogt
®
VT Service Manual
Service Operations
Description Vogt #
1 Chopper assembly 19T2161C03 (VT60, VT80 &VT100)
19T2161C04 (VT40)
2 Bearing, Nylon/Stainless Ball Bearings 12A2020M19
3 Bracket, for Gear Reducer 19T4001S0740
4 Gear Reducer, 5:1 12A4030R14
5 Motor, ½ HP, 3600 RPM, 56C Face, 208-230V, 1 Phase,
50/60Hz
12A2900M0511
(12A2900M0511CE – CE approved)
6 Plate, UHMW, for Gear Reducer Bracket 19T2150VT01

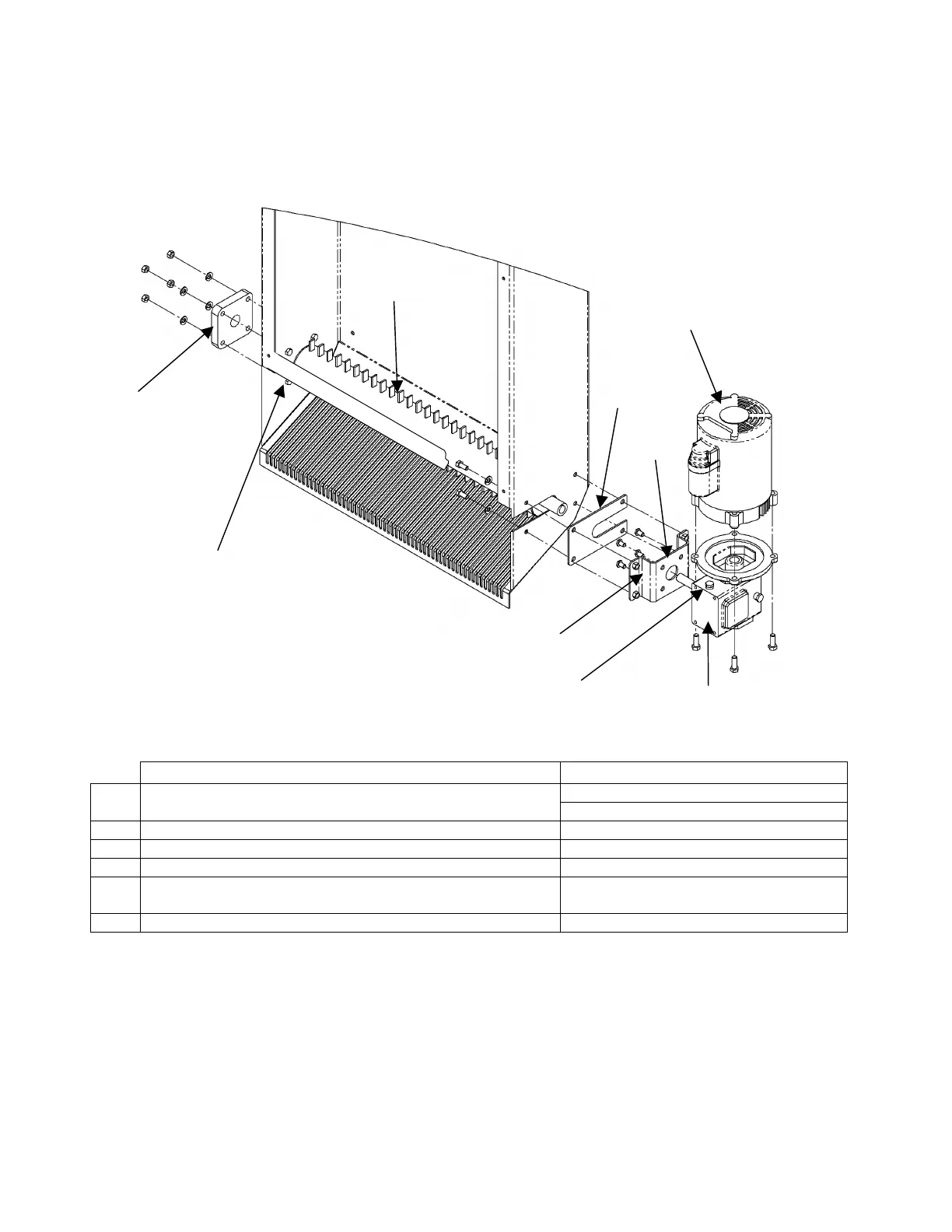

FIGURE 8-10
Chopper Assembly
4
1
2
3
5
6
Bolts welded on Evaporator Housing
Nuts welded on gear reducer bracket
Gear reducer vent plug
