Vogt VT40 Service Manual

8-6 Vogt
®
VT Service Manual
Service Operations

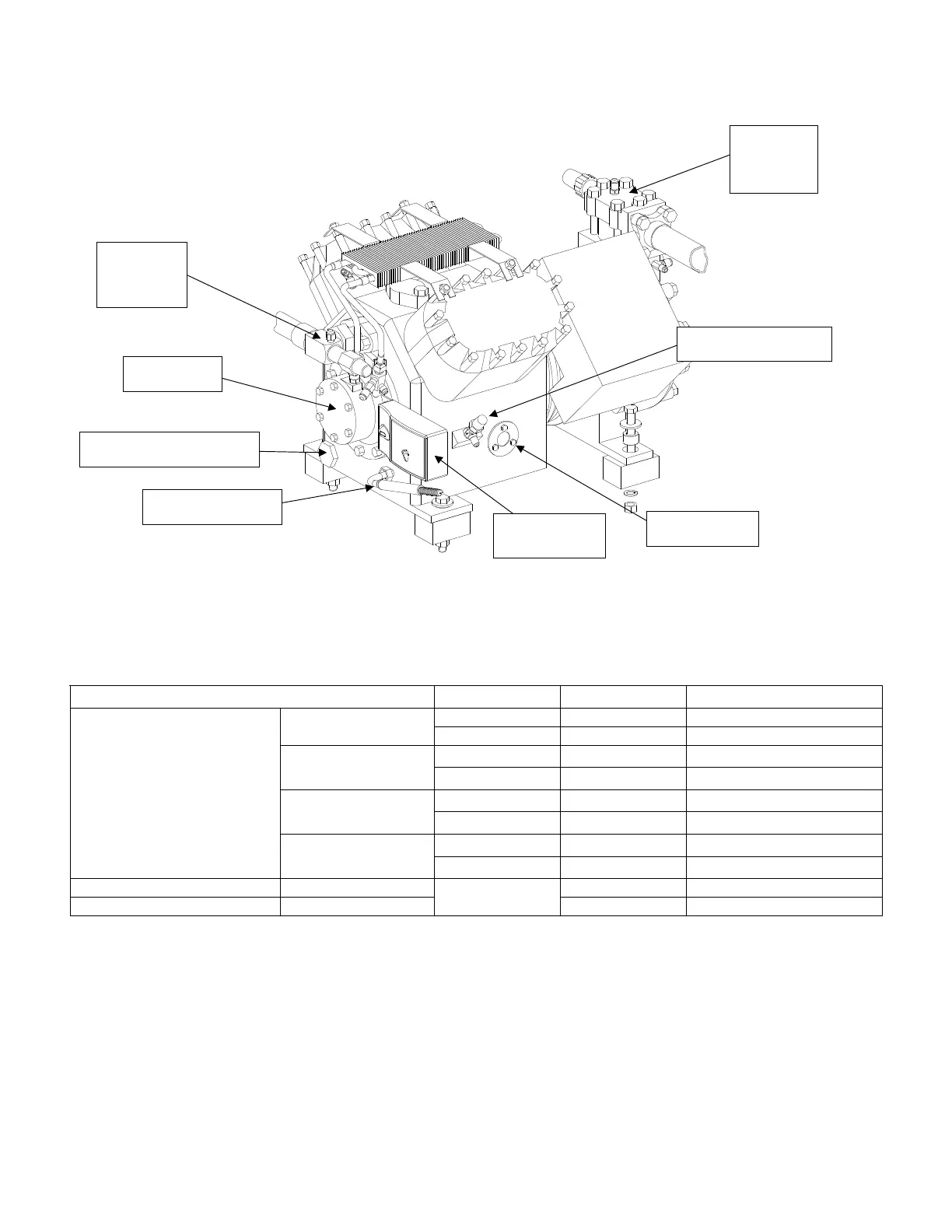

FIGURE 8-6
Copeland Discus Compressor (10HP Shown)
Description Refrigerant Vogt # Copeland #
Compressor VT-40 (5 1/2HP) R22 12A2110A117 3DB3F33K0-TFC-100
R404A 12A2110A130 3DB3F33KE-TFC-100
VT-60 (7 HP) R22 12A2110A110 3DS3F46K0-TFC-100
R404A 12A2110A131 3DS3F46KE-TFC-100
VT-80 (10 HP) R22 12A2110A122 4DL3F63K0-TSK-253
R404A 12A2110A128 4DL3F63KE-TSK-253
VT100 (12 1/2 HP) R22 12A2110A125 4DT3F76K0-TSK-253
R404A 12A2110A129 4DT3F76KE-TSK-253
Crankcase Heater 100 W (insert type) 12A7509E12 518-0028-01
Oil Pressure safety switch Sentronic
R22/R404A
12A2117A05 585-1066-02
TABLE 8-2
Compressor / Compressor Parts
Oil Sightglass
Discharge
Service
Valve
Suction
Service
Valve
Oil Charging Valve
Oil Pump
Crankcase Heater
Oil Pump Inlet Screen
Oil Pressure
Safety Switch
