Vogt VT40 Service Manual

Vogt
®
VT Service Manual 8-7
Service Operations
Description Vogt # Manufacture
Defrost Solenoid Valve (Hot gas valve) 1/2” Solenoid valve 12A4200A406 Sporlan
Defrost Loop Valve (Split VT40 & 1/2” (N.C.) Rebuild Kit 12A4199V53 Sporlan
VT60) Coil 12A2105C16 Sporlan
Suction Stop Valve – N.O. (VT80 & 1 5/8” Solenoid valve 12A4200A1104 Sporlan
VT100) 1 5/8” (N.O.) Rebuild Kit 12A4199V47 Sporlan
Coil (for N.O. valve) 12A2105C04 Sporlan
Liquid Line Solenoid Valve 5/8” Extended End (VT40) 12A4200A0504 Sporlan
(R404A machines only) 7/8” Standard length, B25S (VT60-100) 12A4200A0707 Sporlan
7/8” valve, B19S (after 4/2011) 12A4200A0708 Sporlan
5/8” (N.C.) Rebuild Kit 12A4199V38 Sporlan
7/8” (N.C.) Rebuild Kit – for B25S valve 12A4199V39 Sporlan
7/8” (N.C.) Rebuild Kit – for B19S valve 12A4199V43 Sporlan
Inlet Pressure Regulator Valve 1 1/8” Regulator valve 12A4200N0903 Parker
TXV R22 Machines 12A4200C0305 Sporlan
R404A Machines VT40, 60 & 80 12A4200C0320 Sporlan
VT100 12A4200C0321 Sporlan

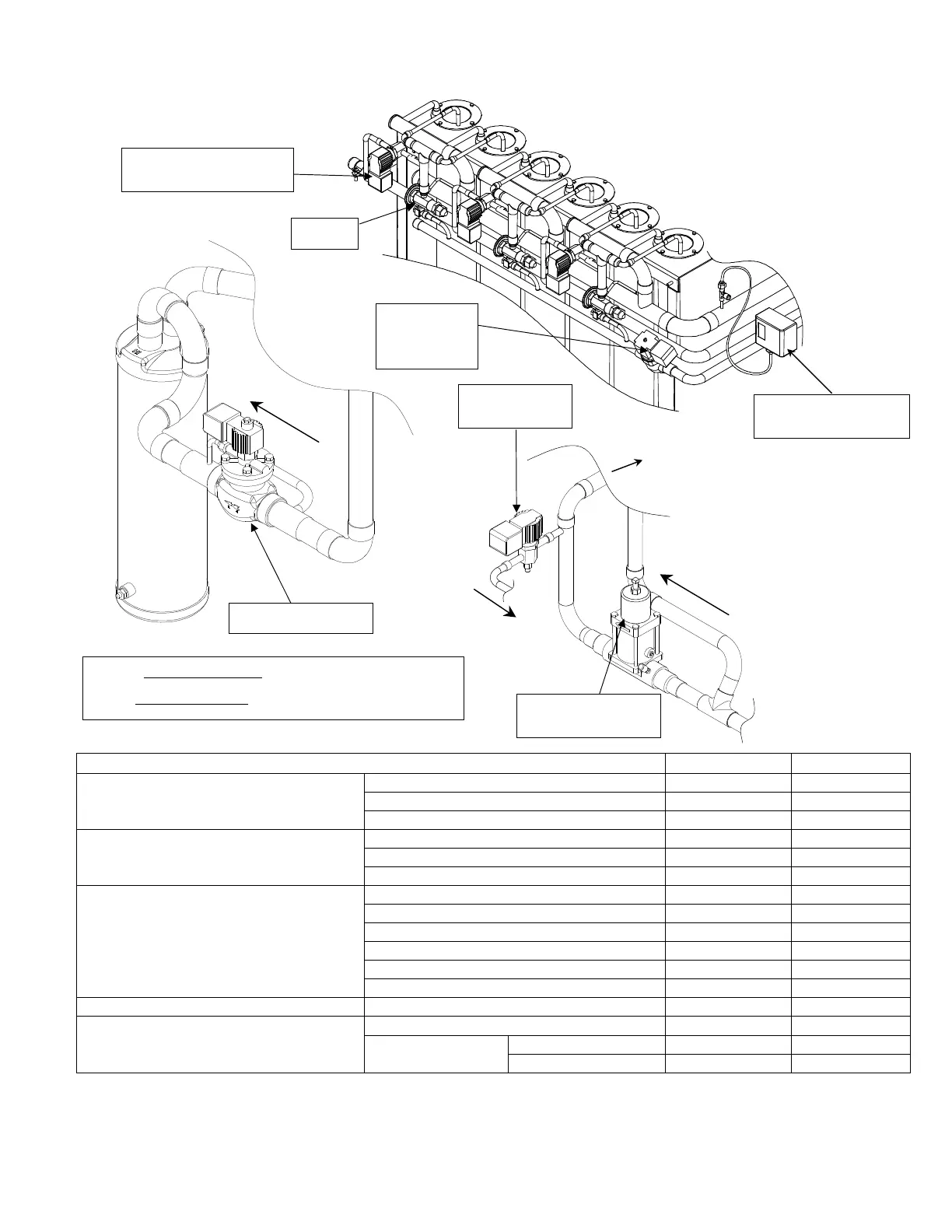

TABLE 8-3
TXV, Regulator Valve & Solenoid Valves
Defrost (hot gas)
Solenoid Valve
TXV
Suction Stop Valve
Flow
To
Suction
Line
Hot gas to
Condenser
Hot gas to
evaporators
Inlet Pressure
Regulator Valve
Defrost Loop
Valve
Note: Suction Stop Valve
used on VT80 & VT100 only
Defrost loop valve
used on Split VT40 & VT60 only
Liquid Line
Solenoid
(404A only)
Harvest Hold (HH)
Pressure Switch
