Void Bias Q5 - Page 5

Bias Q5 User Guide V1.0
Page 5
Bias Q5
A
I
J K L
B C D E F G
H

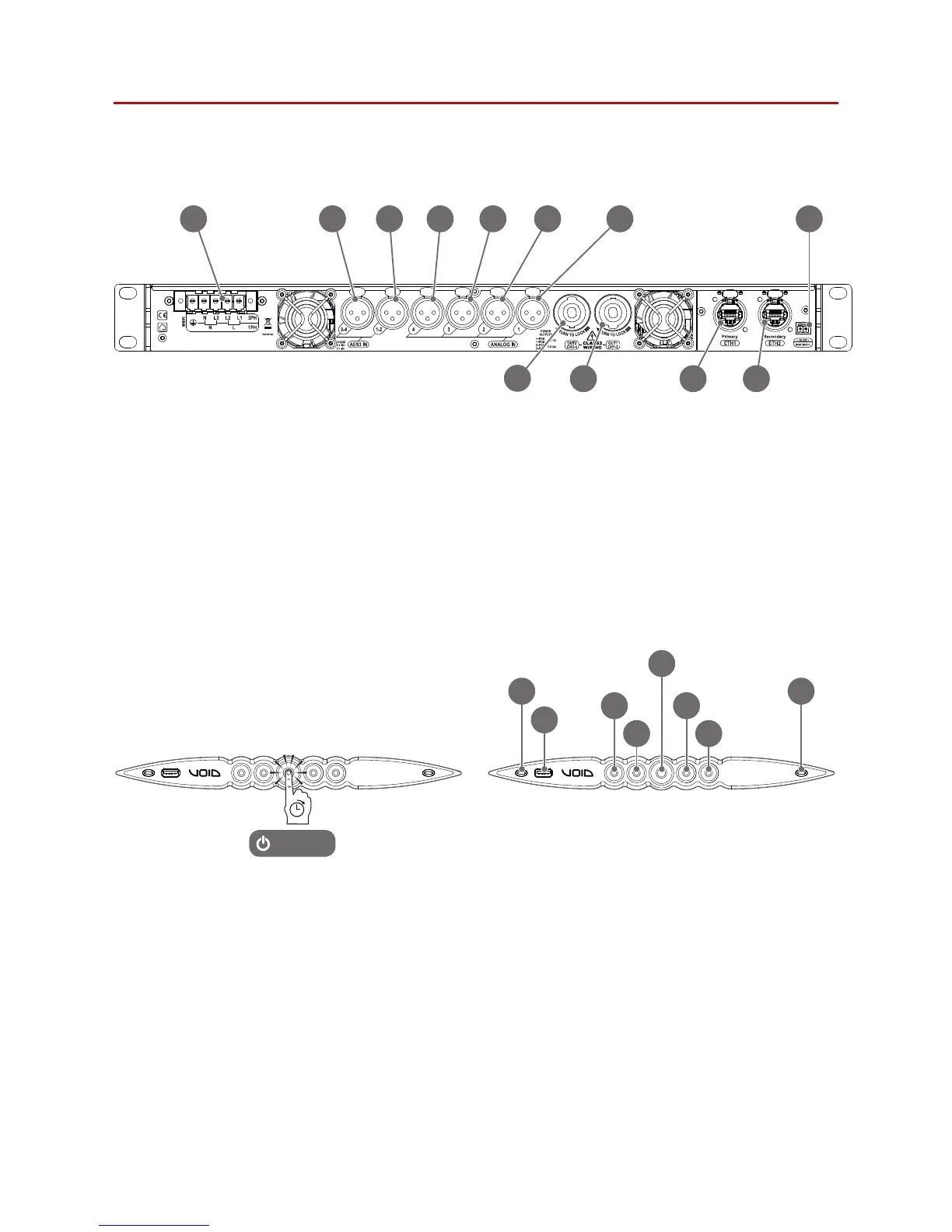

A. AC mains Phoenix connector
B. Input: channels 3 & 4 AES XLR
C. Input: channels 1 & 2 AES XLR
D. Input: channel 4 analog XLR
E. Input: channel 3 analog XLR
F. Input: channel 2 analog XLR
G. Input: channel 1 analog XLR
H. Remote ON/OFF Phoenix connector
I. Output: channels 3 & 4 speakON
J. Output: channels 1 & 2 speakON
K. Ethernet: etherCON secondary port
L. Ethernet: etherCON primary port
Bias Q5 Bias Q5
1 8
3
5
6
2
4 7
on/off
1. Wi-Fi on/o switch
2. USB port
3. CH1 Status LED and MUTE
4. CH2 Status LED and MUTE
5. Main on/o switch, status LED and MUTE ALL
6. CH3 Status LED and MUTE
7. CH4 Status LED and MUTE
8. Armonía callback
B
C
