5. LED check
There are 4 different LED lights that indicate the following information:
LED number 1: State of Fan
This LED is blue when the fan is running and red when there is a problem with the ventilation system.
LED number 2: State of Motor
This LED is blue when the Motor is running and red when there is a problem with the system.
LED number 3: State of SYNC
This “SYNC” LED operates as follows:
- Once the system is powered (but not synchronized), the SYNC LED will illuminate in red. The system starts as soon as it is connected to a power
source.
- Once the SmartCrystal™ Cinema receives the signal synchronization, the SYNC LED will illuminate in blue as follows :
o Blue continuous light: signal for 2D synchronization (less than 96Hz)
o Blue blinking light: signal for 3D synchronization (greater than 96Hz)
LED number 4: Power supply
This LED is blue when the system is properly powered and off when the system is not powered.
6. Rack interface description
The 3.5’ jack connector is used for external control for automation.
Remote plug – 3.5’ jack
This rack-mountable accessory allows the use of the SmartCrystal
TM
Cinema Horizontal when it is installed in a non-accessible area. In this case a
network crossover cable is needed to connect the SmartCrystal™ Cinema and the mountable rack.
7. BNC connector

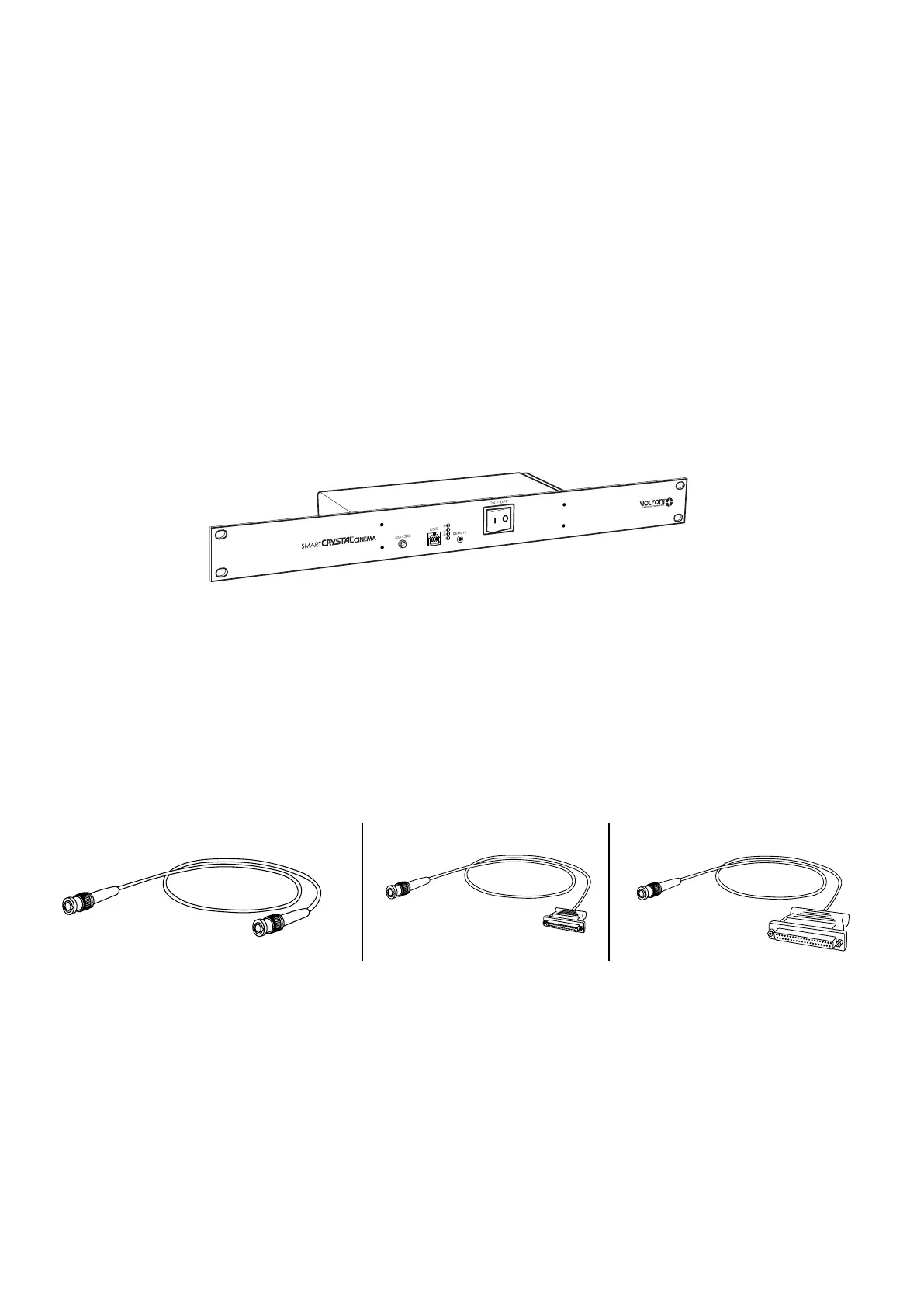

The BNC connector allows the user to synchronize the SmartCrystal™ Cinema Horizontal together with the cinema projector. Three cables are
supplied with the SmartCrystal™ Cinema Horizontal:
BNC/BNC cable (2 meters long) BNC/GPIO 15 cable (2 meters long) BNC/GPIO 37 cable (2 meters long)
8. Connect the power cable to SmartCrsytal™ Cinema.
Power IN
9. Snap hook
To increase safety, please use the snap hook when xing the SmartCrystal™ Cinema Horizontal.
