4. USING THE SMARTCRYSTAL
TM
CINEMA HORIzONTAL

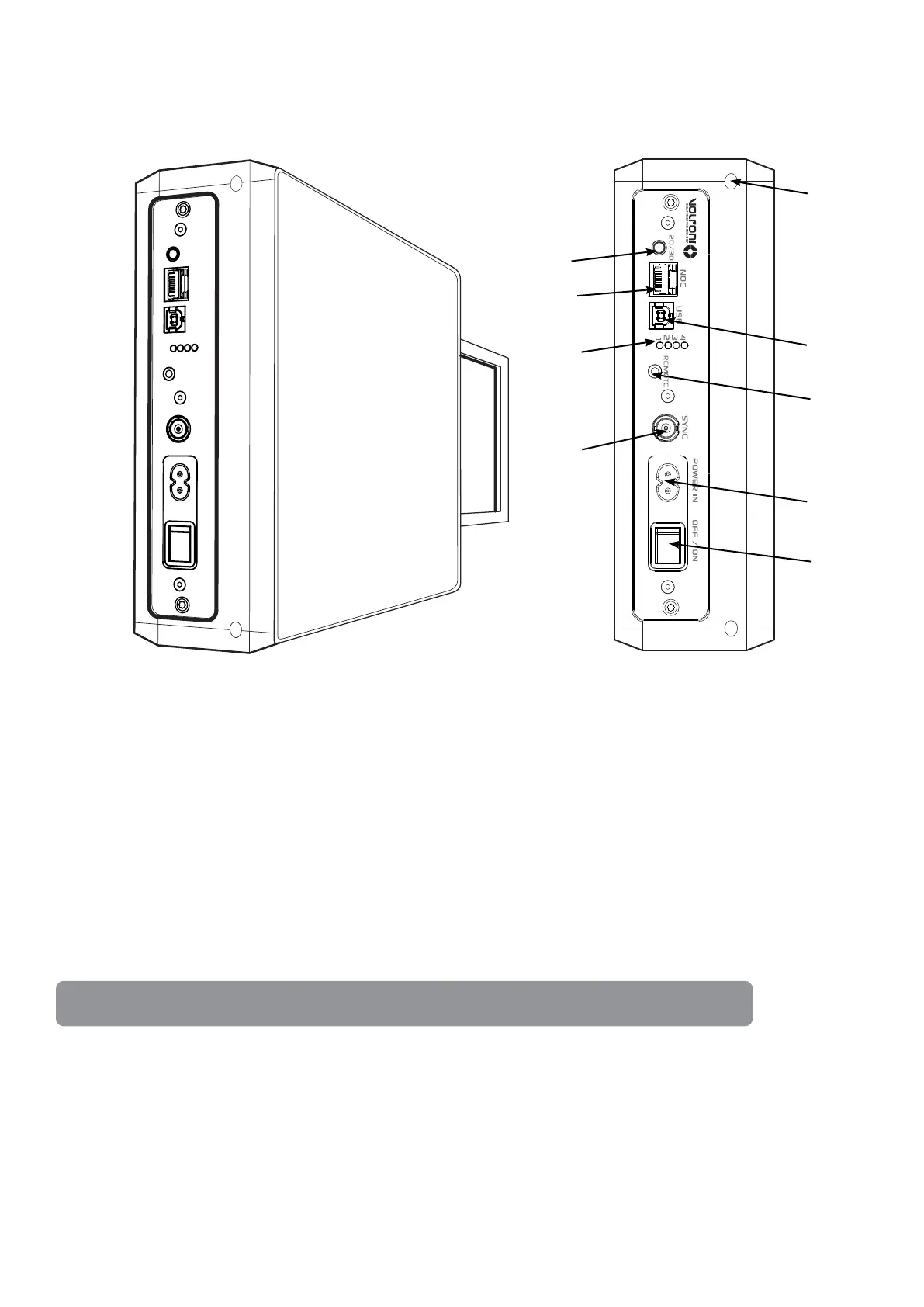

4.1 - User interface description
4.2 - Using the user interface
1. ON / OFF switch
Put this button on position ON to power the SmartCrystal™ Cinema Horizontal and begin operating the system. Put in position OFF when you
want to stop using the 3D system.
2. 2D / 3D mode
There is one button that moves the polarization window of the SmartCrystal™ Cinema Horizontal left and right. When the system is powered, press
this button and the polarization window will emerge from its encasement (3D mode). Press this same button when you want to stop using the
SmartCrystal™ Cinema, and the polarization window will go back inside its encasement (2D mode).
This button blinks in green when the polarization window is moving. Typically when you open or close the polarization window of the SmartCrys-
tal™ Cinema Horizontal.
This button is green continuously when the 3D system is open and the polarization window is out of the encasement.
This button is not illuminated when the polarization window is in 2D mode.
Security system: The polarization window will stay in 3D mode if the 3D sync is still detected. This is a security measure to prevent the closing of the
3D system during a 3D projection.
3. Network connection – RJ45 plug
The NOC connector allows the system to be connected to a central network in order to retrieve information and perform remote operations on
the SmartCrystal™ Cinema Horizontal (eg, monitoring, remote control, etc).
There are two different modes of use for the SmartCrystal™ Cinema :
- Manual mode: the user interface and the rack interface of the SmartCrystal™ Cinema directly control the operation of the 3D system.
- NOC mode: information and operations are automatically sent from the server via the central network.
4. Software update – USB port
Please referer page 10 of this user manuel (part 8).
1
2
3
4
5
6
7
8
9
When not using the SmartCrystal™ Cinema, put the system in 2D mode to protect the polarization window from dust
and damage, and thereby increase product longevity.
