❑ Do not apply additional lubricant or grease to the seal lip.
❑ Before installation, remove oil residues from crankshaft trunnion with a clean cloth.
❑ Use protective sleeve supplied when installing.
❑ First, remove the protective sleeve after installing the sealing flange on the crankshaft trunnion.
2.1 Crankshaft oil seal, pulley side - replace

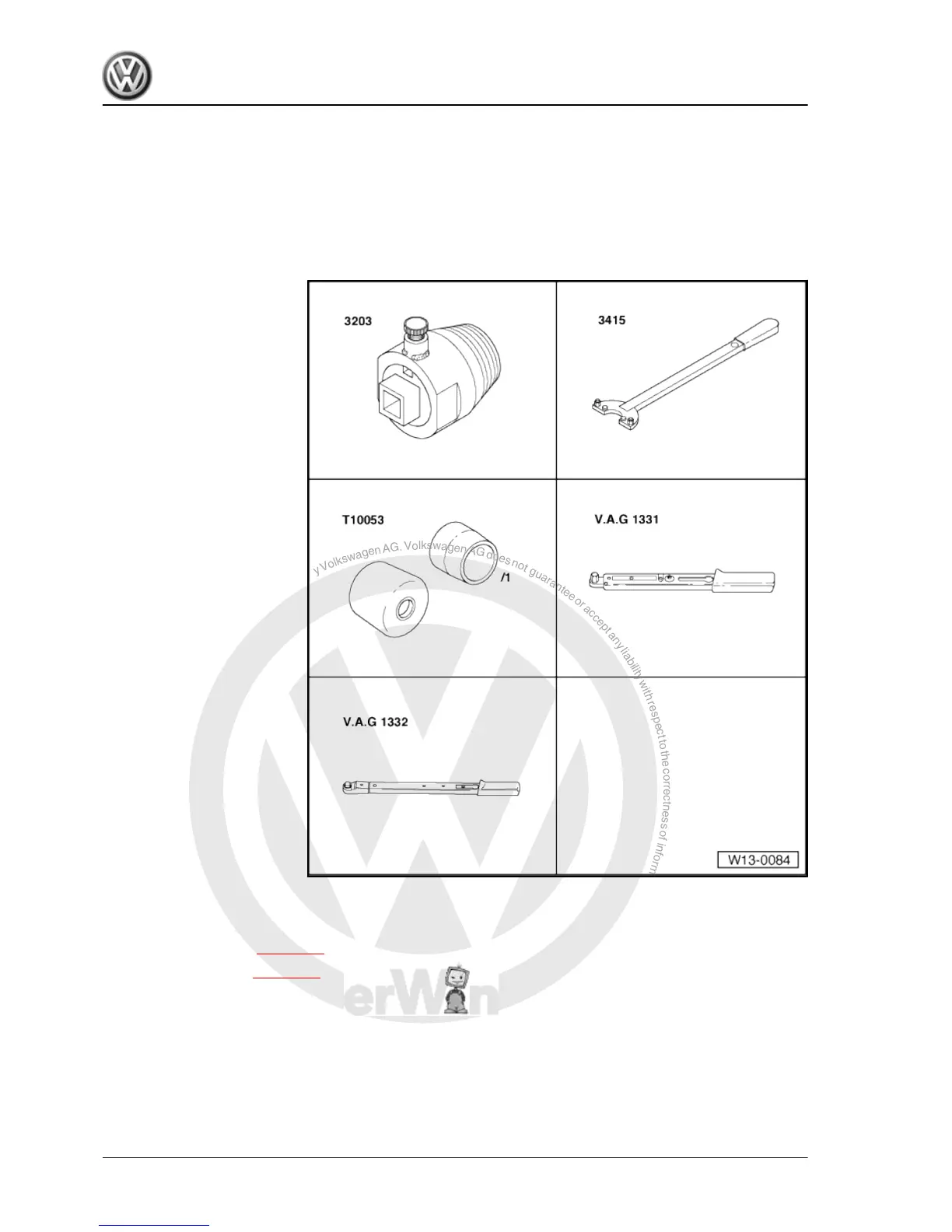

Special tools and workshop
equipment required
♦ Extractor -3203-
♦ Lock -3415-
♦ Assembly sleeve -T10053-
♦ Torque wrench - 5 to 50 Nm
(enc. 1/2") -VAG 1331-
♦ Torque wrench - 40 to 200
Nm (enc. 1/2") -VAG 1332-
2.1.1 Removal
– Remove Poly-V belt ⇒ page 14 .
– Remove timing belt ⇒ page 41 .
Fox 2004 ➤
3 - Cyl. diesel engine - Edition 02.2009
18 Rep. Gr.13 - Crankshaft, pistons
