– Check the housing and water drains for dirt and clean them if
necessary. Refer to
⇒ “4.40.4 Air Filter Housing, Cleaning”, page 122 .

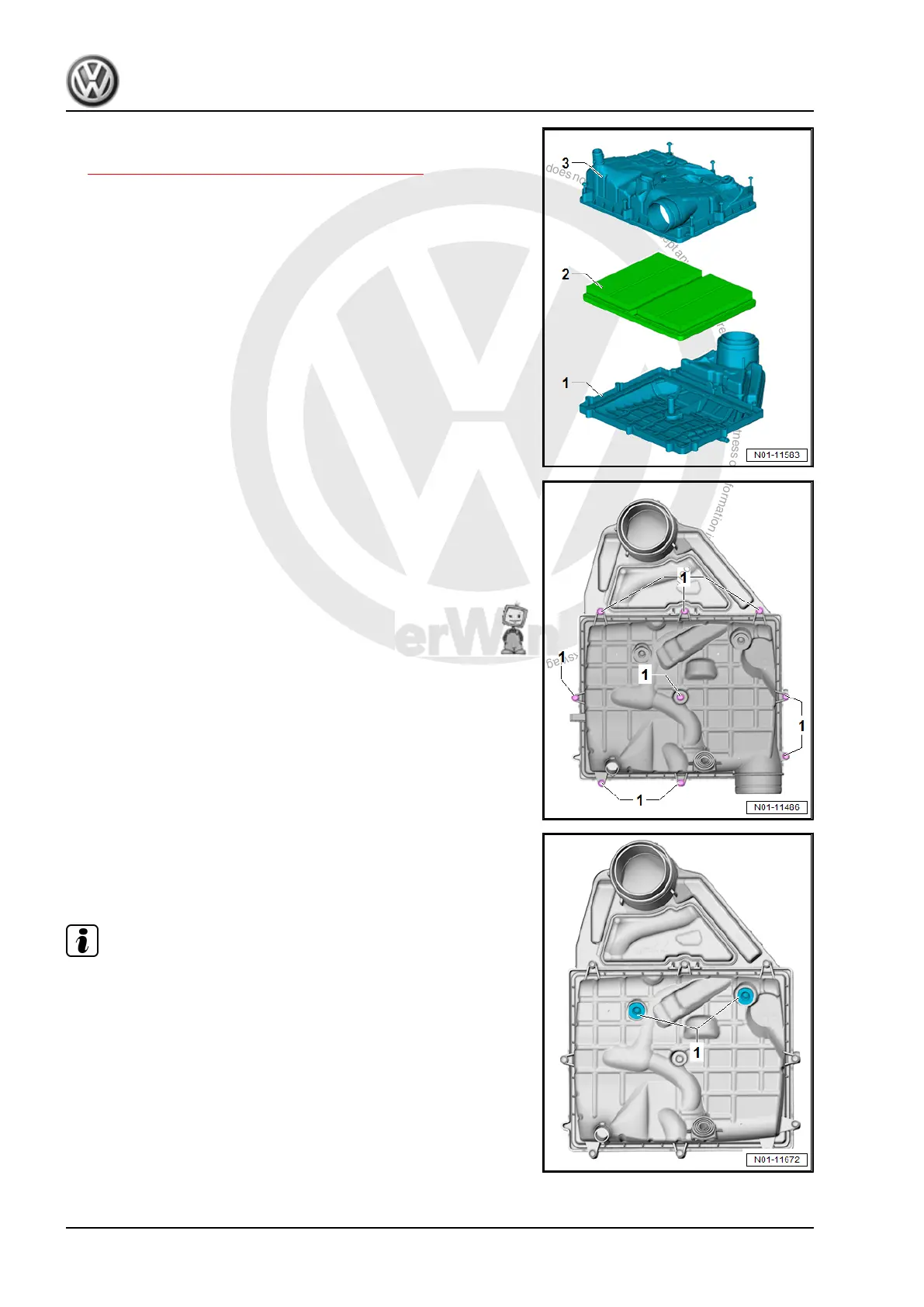

– Insert the air filter element -2- centrally into the mount in the
air filter upper section -1-.
– Place the air filter lower section -3- on the air filter upper sec‐
tion -1-.
– Assemble the air filter upper section and the air filter lower
section using the screws -1- and tighten to the tightening spec‐
ification.
Mounting Elements, Replacing
– Remove the mounting elements -1- upward.
– Press the new mounting elements into their guides.
Note
Do not grease or lubricate the mounting elements -1- before in‐
stalling.
– Continue to install the air filter housing in reverse order of re‐
moval.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
124 4. Procedure Descriptions
