4
5
-19
2
-
Spacer cap
Various versions
Page 45-25
3
-
Sealing ring
Always replace
4
-
Ci
r
clip
Always replace
5
-
Brake line
Brake master
cylinder/primary piston
circuit to hydraulic unit
6
-
Brake servo
7
-
Carrier plate
8
-
Sealing ring
9
-
Pin
10 -
Sec
u
r
ing clip
11 -
Brake fluid reservoir
Page
2
of
10

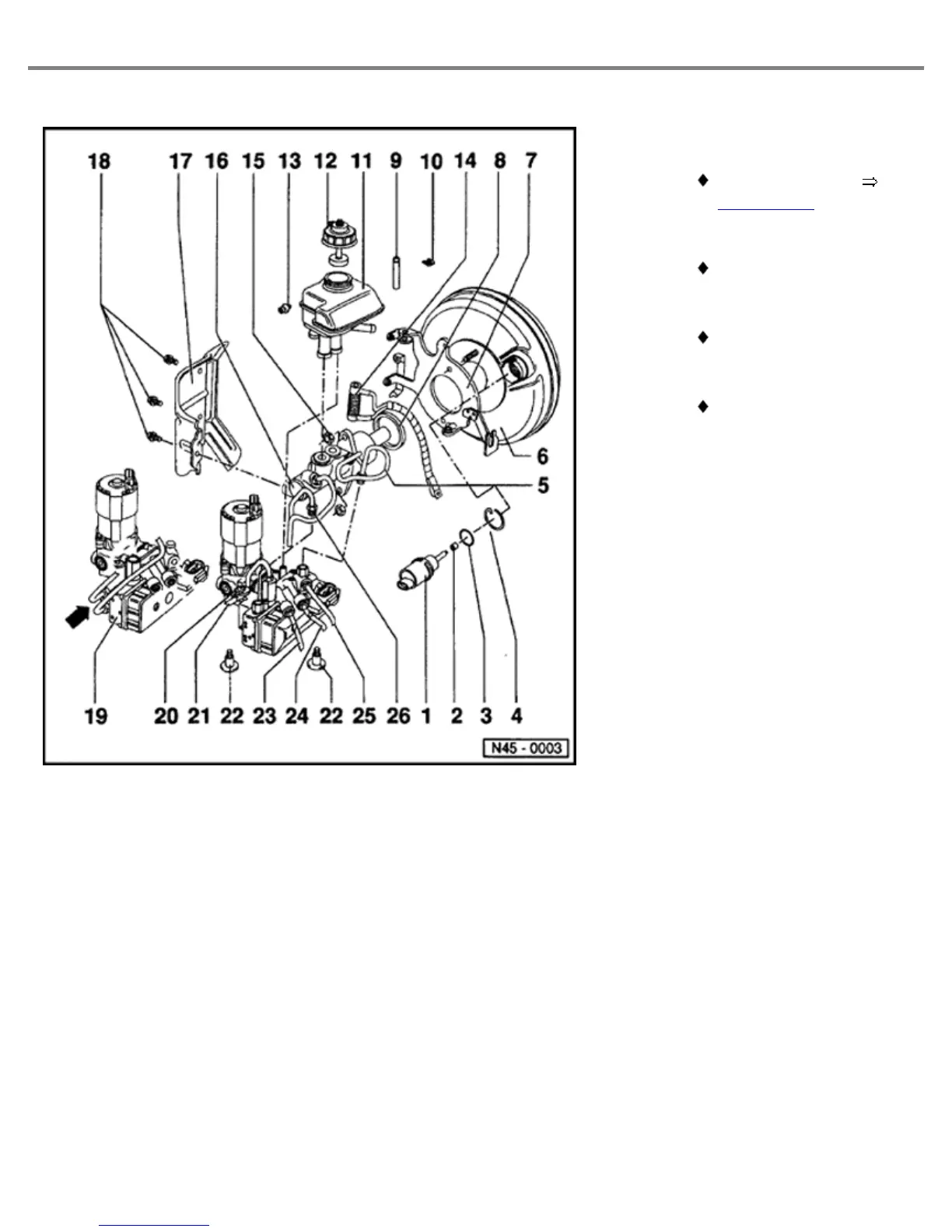

Assembly overview
-
hydraulic unit, brake servo/brake master cylinder
12/7/2004
http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&ty
p
e=repair&id=VW.B4.SU01.45.4
187
189
