Rear Wheel
Suspension, Shafts
and Axle
Rear axle, servicing
(vehicles with front wheel
drive)
Note:
The rear axle and wheel
bearings are identical on
Base and Plus suspension
versions.
Welding and straightening
of the axle beam is not
permissible.

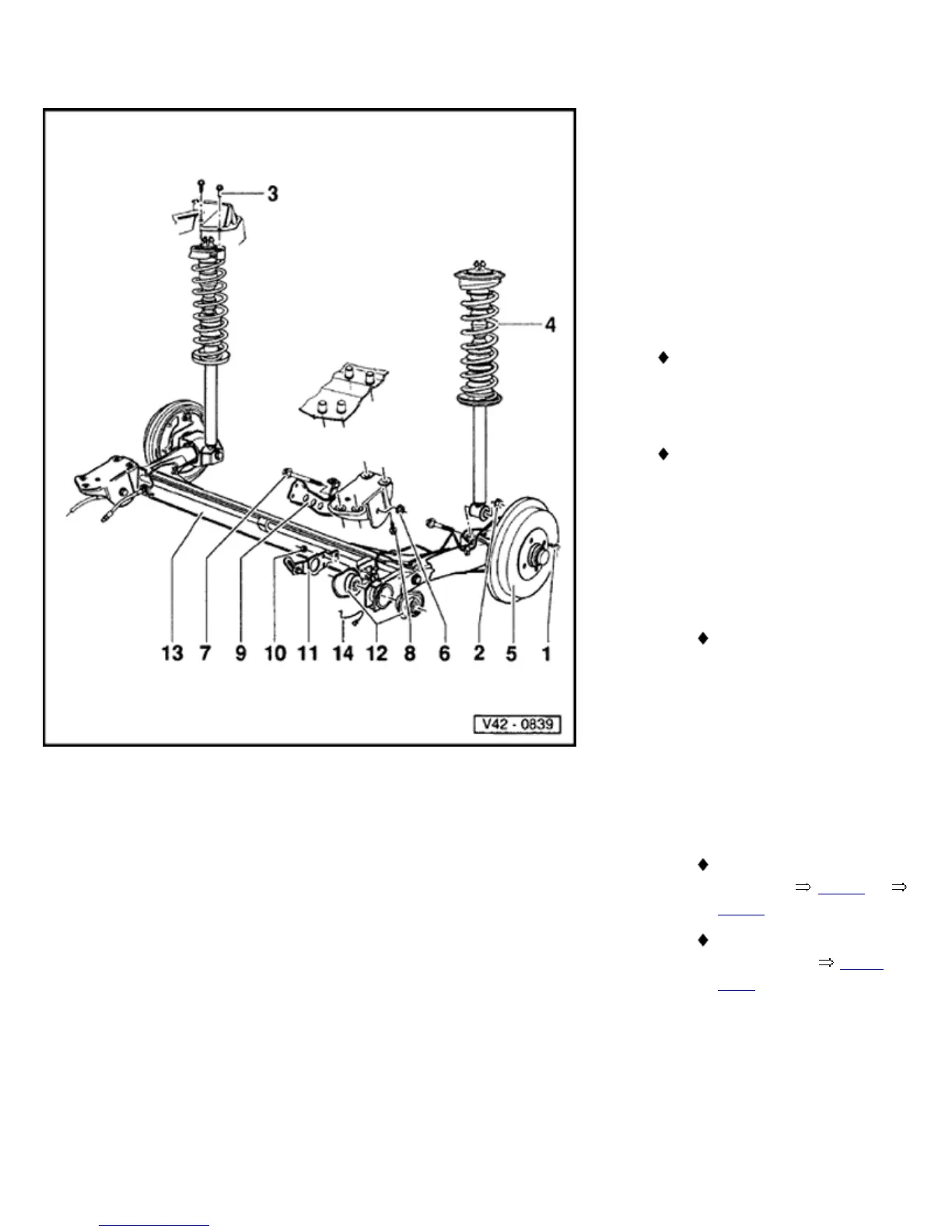

1 - Wheel bolt 110 Nm (81
ft lb)
2 - Self-
locking hex nut, 70
Nm (52 ft lb)
When tightening the
nut the axle beam
must be in the
horizontal position
(unladened vehicle
state)
3 - Hex bolt, 25 Nm (18 ft
lb)
4 - Suspension strut
Removing and
installing Fig. 1 to
Fig. 3
Disassembling and
assembling Page
42-9
Page
1
of
14
Rear Wheel Suspension, Shafts and Axle
12/7/2004
