48-51
Power steering gear, adjusting with new
toothed rod
If a new toothed rod was used, the steering play
should be adjusted according to the following
description.

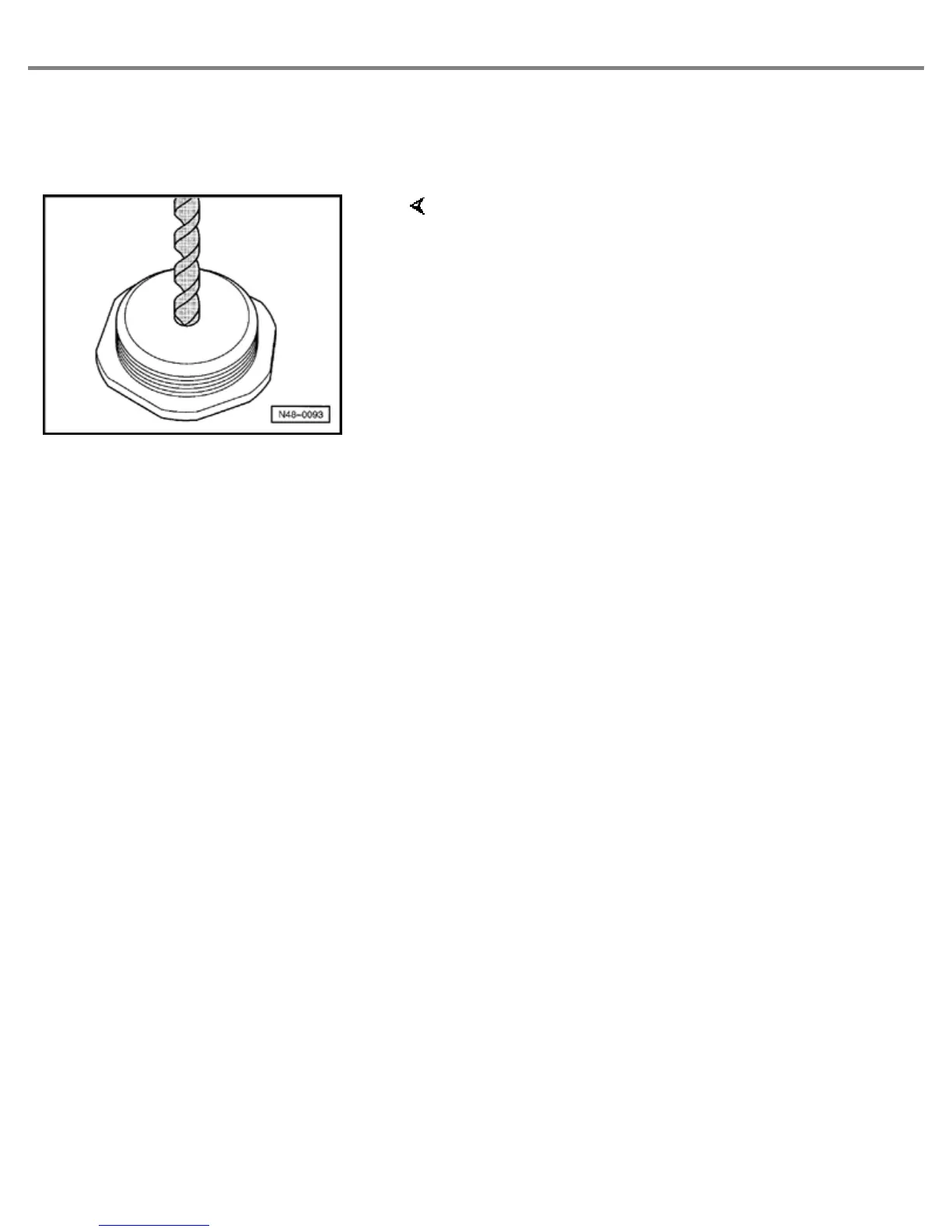

- Drill a hole 5.1 mm in diameter in the center of the
adjusting screw (on the back side center)
- Thoroughly clean adjusting screw
- Place toothed rod in center position (measure
toothed rod excess right and left)
- Install pressure piece and spring in housing if not
done yet
-
Screw adjusting screw and lock nut far enough into
the housing so that the markings match
Page
51
of
99
Steering
12/7/2004
http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.48.1
