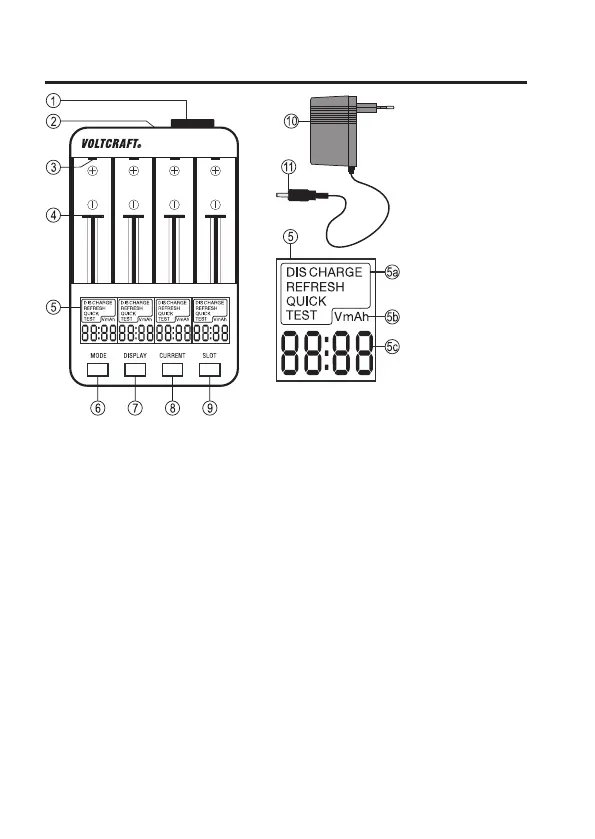

5. DESCRIPTION OF INDIVIDUAL PARTS
1 Temperature-controlled internal fan
2 Mains adapter socket
3 Charging contact plus pole
4 Movable charging contact minus pole
5 Display
5a Mode display
5b Display of the measuring unit
5c Display of the measured value and status (nuLL/FuLL)
6 “MODE” button to set the mode
7 “DISPLAY” button to switch the measured values
8 “CURRENT” button to pre-set the charge/discharge current
9 “SLOT” button to select the charging slot (1, 2, 3, 4 or 1 - 4)
10 Wall power supply
11 DC plug
