1 Battery type
2 Programme status
3 Charged capacity
4 Current parameters (cell voltage/charging current)
5 Programme run time
6 Cell parameters (cell resistance/temperature)
7 Charging voltage curve/display of battery parameters after switching
8 Task bar for the corresponding slots. If horizontal slots are used, the task bars are displayed on the
left hand side of the screen.
9 Rednumbereld=percentageofbatterycharge
10 Pinknumbereld=percentageofbatterydischarge
11 Greeneldwithcheckmark=chargingnished
12 Bluenumbereld=percentageofcycle

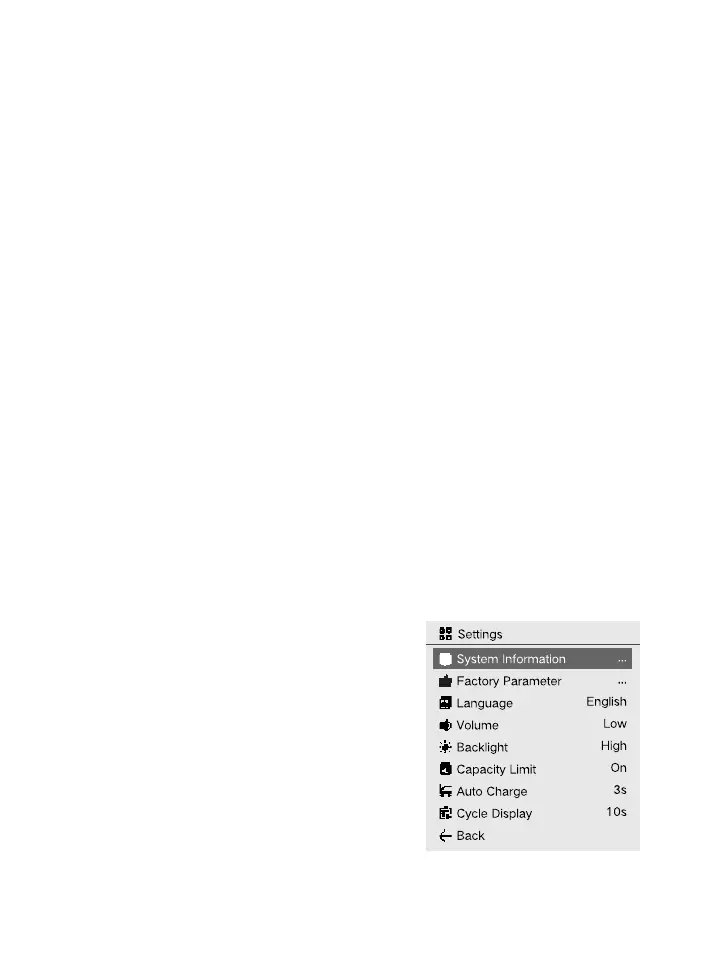

c) System settings
The charger allows the system data relevant to the user to be set via a menu. These data include, for
example, menu language or programme settings, etc.
• Put the charger into operation and remove all rechargeable battery cells.
• To open the system menu, all charging slots must be free. Press and hold down the middle button
with the circle for approx. 2 seconds. The menu will appear on the display.
• Press the cursor buttons (Up/Down) to select the corresponding menu item.
• Only 6 menu areas can be displayed due to the display
size. Use the cursor buttons to move the menu. The se-
lected menu item will be highlighted in colour.
• To enable the menu item or change the parameter, press
the middle “Circle” button.
• To exit the menu, use the “Back” menu item.
35
