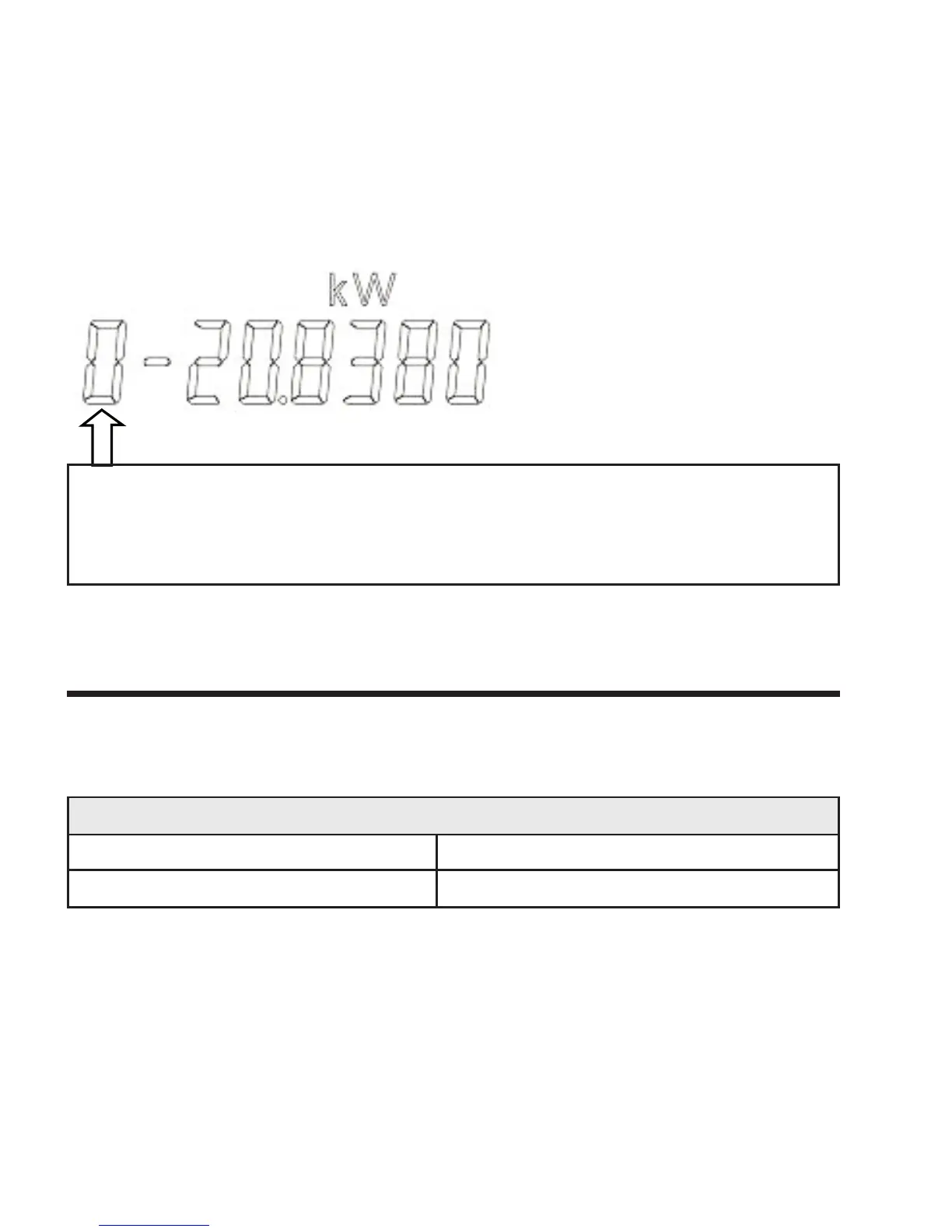

Display of the currently infed power P (P1+P2+P3)
Negative prefix; the power fed into the mains is displayed but not counted.
0: Sum of the power currently fed into the mains on all three phases in kilowatt
1: currently power fed into the mains on phase 1
2: currently power fed into the mains on phase 2
3: currently power fed into the mains on phase 3
RS 485 DATA INTERFACE
The meter has a bidirectional RS 485 interface that can be used for reading data.
This interface is galvanically isolated from the meter electronics
RS-485 Interface
Terminal connection A Terminal connection B
uninverted signal line Inverted signal line
