OUTPUT VOLTAGE LED
FAST FLASHING: Output Voltage between 12.5V & 13.5V
SLOW FLASHING: Output Voltage <12.5V
SOLID: Battery Voltage > 13.5V
FAULT LED
No input Voltage present.
Input Voltage out of range.
Fault in unit.
AUTO START MODE:
Low voltage Disconnect <9V Input
BATCH STARTING WITH SERIAL#s G5016
Start Charge: 13.4V (26.8V for 24V) input
Stop Charge: 12.8V (25.6 for 24V) input
BATCH STARTING WITH SERIAL#s G1516
Start Charge: 12.8V (25.6V for 24V) input
Stop Charge: 12.2V (24.4V for 24V) input
IGNITION MODE:
Low Voltage Disconnect <9V Input (18V for 24V) input
Low Voltage Reconnect: > 11V (22V for 24V) Input
CONNETION:
1. The unit is in auto start mode by default.
2. connect both input and output to the unit.
3. Unit can take input from either a 12V or 24V vehicle.
4. Or you can take a Voltage signal 12V or 24V from any source.
5. The unit will always start in bulk mode when connected or mode changed (refer to Charging status LED)
6. 1 min delay for Start Charge & 10 sec delay for Stop Charge in AUTO START MODE. 10 sec delay in IGNITION MODE
7. IGNITION MODE ONLY: Apply 9-32V to ignition pin, the unit will go into IGNITION MODE. THE SETTING WILL BE
SAVED UNTIL RESET.

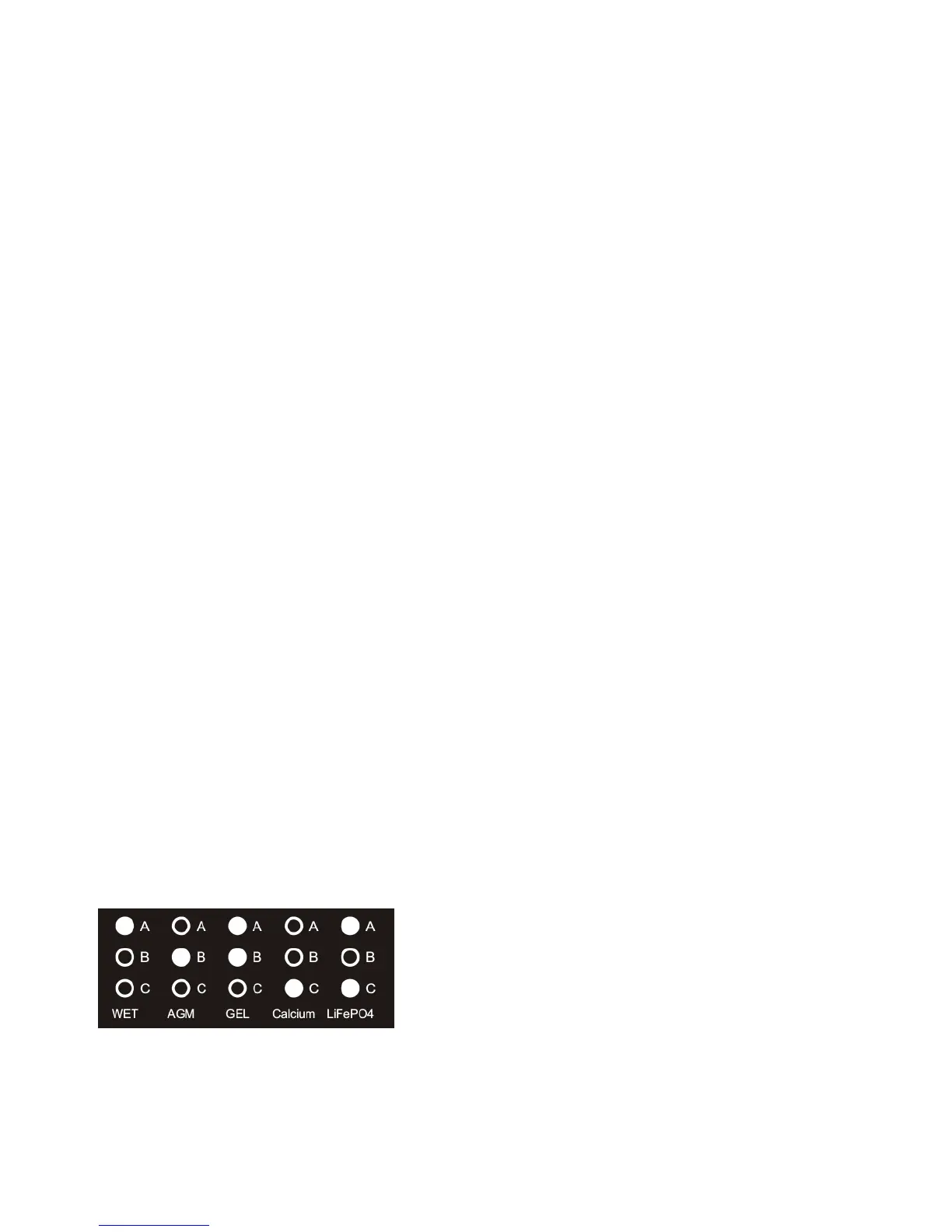

BATTERY SELECTION:
1. Hold down the Battery Select button for 5 seconds until the LEDs flash
2. Only the battery type combination of LEDs as below will flash (not all 3)
3. Wait for 10 seconds for the LEDs to stop flashing.
4. The battery type is now saved.
LITHIUM:
• This unit is suitable for LiFePO4 batteries
• The float is set to stop charge. The output will pulse in this mode.
