AUTO START MODE:
1. DISCONNECT IGNITION PIN: IF IN IGNITION MODE, UNIT WILL NOT CHANGE TO AUTO START IF THERE IS VOLTAGE
ON IGNITION PIN.
2. Hold down the Battery Type Select button for more than 15 sec.
3. ALL A.B.C. LEDs will flash, and the unit will stop charging while they are flashing.
4. Release the button, the unit will then charge in AUTO START MODE.
5. THE SETTING IS SAVED UNTIL VOLTAGE IS APPLIED TO THE IGNITION PIN.
6. The unit will operate ONLY at the pre-set Voltages.
7. The unit will not charge below Stop Charge Voltage.
8. AUTO START MODE not suitable for Vehicles with low Voltage Charging systems < 12.8V charge.
(use IGNITION MODE) or (OK FOR VEHICLES > 12.8V CHARGE OR OK FOR BATCH STARTING WITH SERIAL#s 1516)
IGNITION MODE:
1. To change to IGNITION MODE supply 9-32V to the ignition pin (at any time, even in AUTO START MODE)
2. There is no need to Press and hold the Battery Select button for this mode.
3. THE SETTING IS SAVED UNTIL THE UNIT IS RESET TO AUTO START MODE.

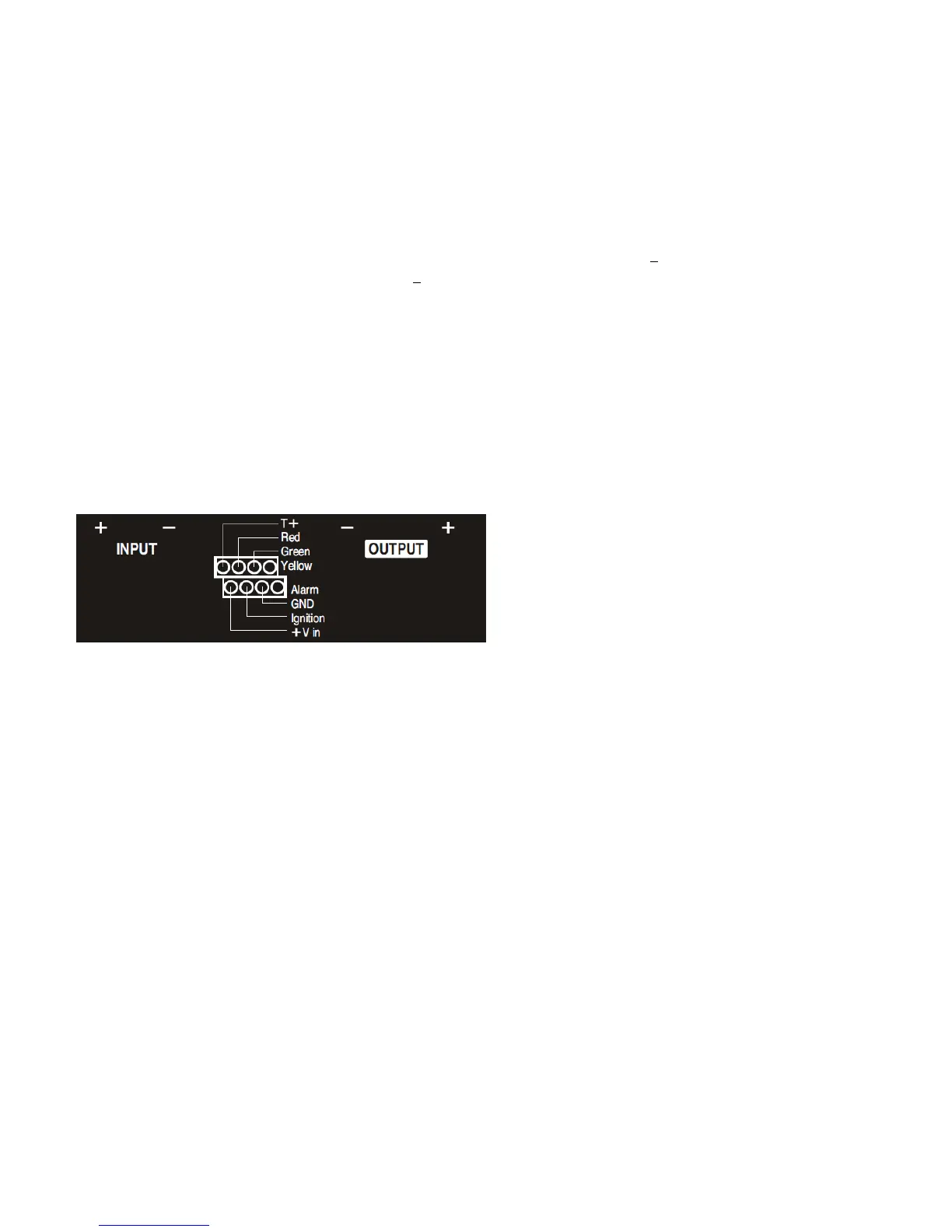

TERMINAL BLOCK
+V IN: The V+ pin has the same voltage as the input terminal (+/- 0.2V, you can trigger the unit and use a relay without
running power all the way to the trigger source.
IGNITION: Ignition trigger wire.
GND: Ground pin for Remote Display. Connect to display black wire.
ALARM: Alarm output pin. Alarm output voltage equals to system input voltage with max 200mA current.
YELLOW: Connect to display yellow wire.
GREEN: Connect to display green wire.
RED: Connection to display red wire.
T+: Not used.
