10

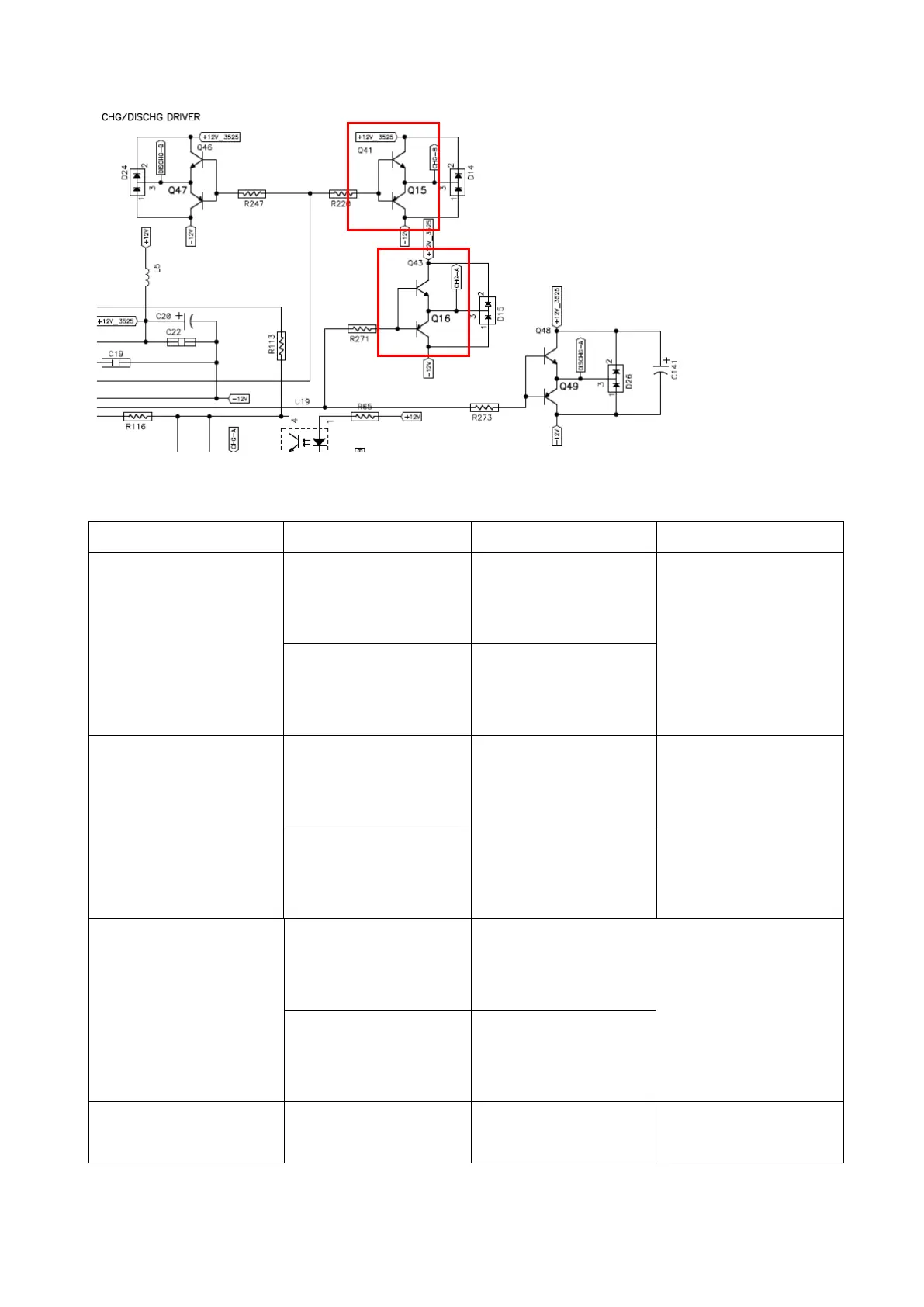

The Q41and Q43 are (2SC2655 2A 50V NPN TAP TO-92)
The Q15and Q16 are (2SA1020L-Y-T9N-B 2A 50V PNP TAP TO-92NL)
Parts
Attribute
Reference values
Failure status
Q46/Q48
Resistor
BE: 430k
BC: 430k
EC: 16k
Short or explosion
Diode
BE: 0.65V
BC: 0.65V
CE: 0.28V
Q41/Q43
Resistor
BE: 430k
BC: 425k
EC: 104k
Short or explosion
Diode
BE: 0.65V
BC: 0.65V
CE: 0.28V
Q47/Q49
Resistor
BE: 430k
BC: 430k
EC: 8k
Short or explosion
Diode
BE: 0.65V
BC: 1.75V
CE: 0.20V
Q15/Q16
Resistor
BE: 430k
BC: 430k
Short or explosion
