Voltronic Axpert VM IV - Total Wiring Diagram

38

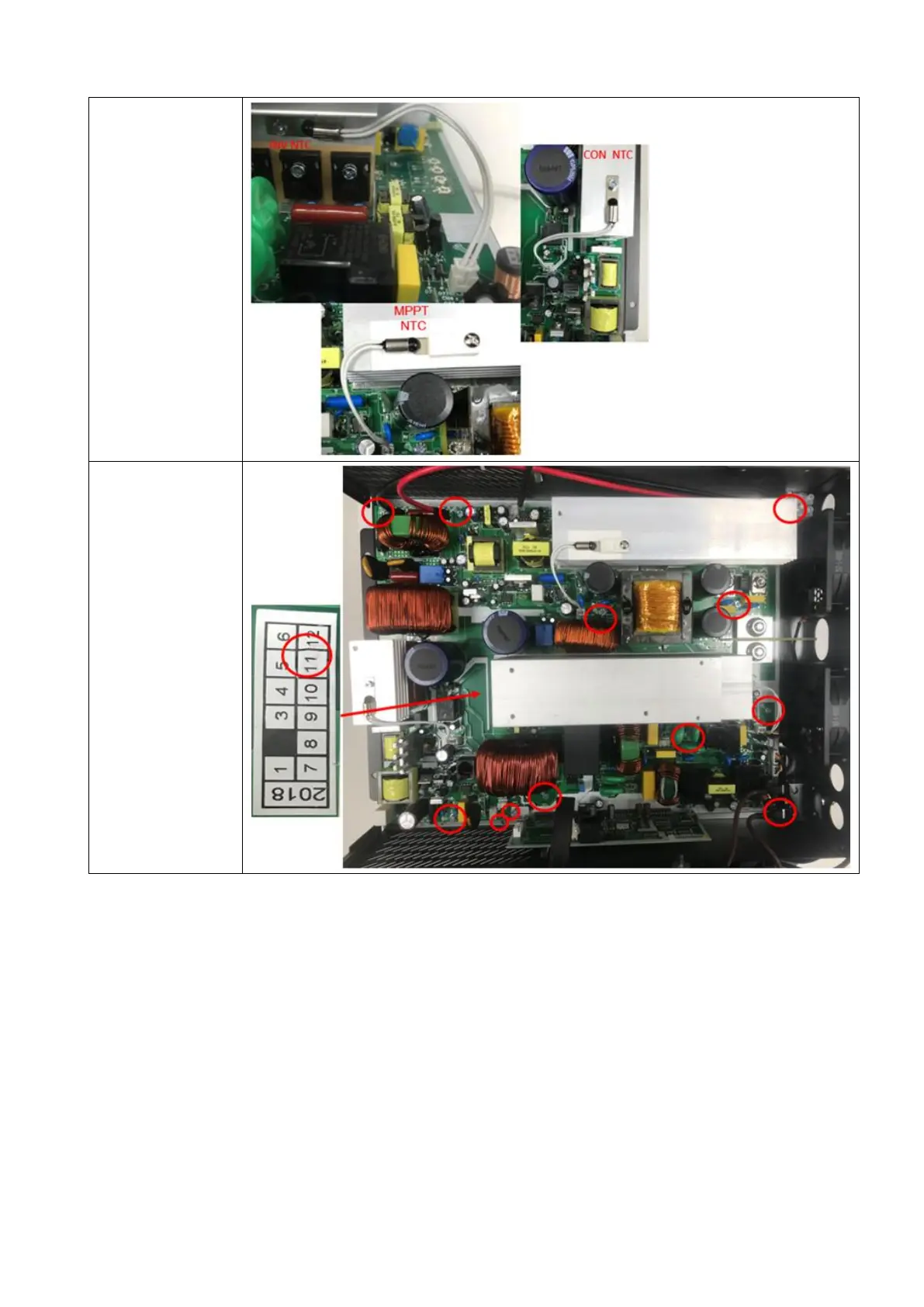

MPPT NTC and
Converter NTC
and INV NTC
Remove 13
screws on main
board, and take
out the main
board
1.1 Total wiring diagram:
Note: Wrong connection of wires may cause inverter damage!
Please connect wires with care!
