Voltronic Axpert VM IV - Checking and Measuring Guide; Check the Battery Side Components on Main Board

4
3. Checking and measuring guide
3.1 Check the battery side components on MAIN board

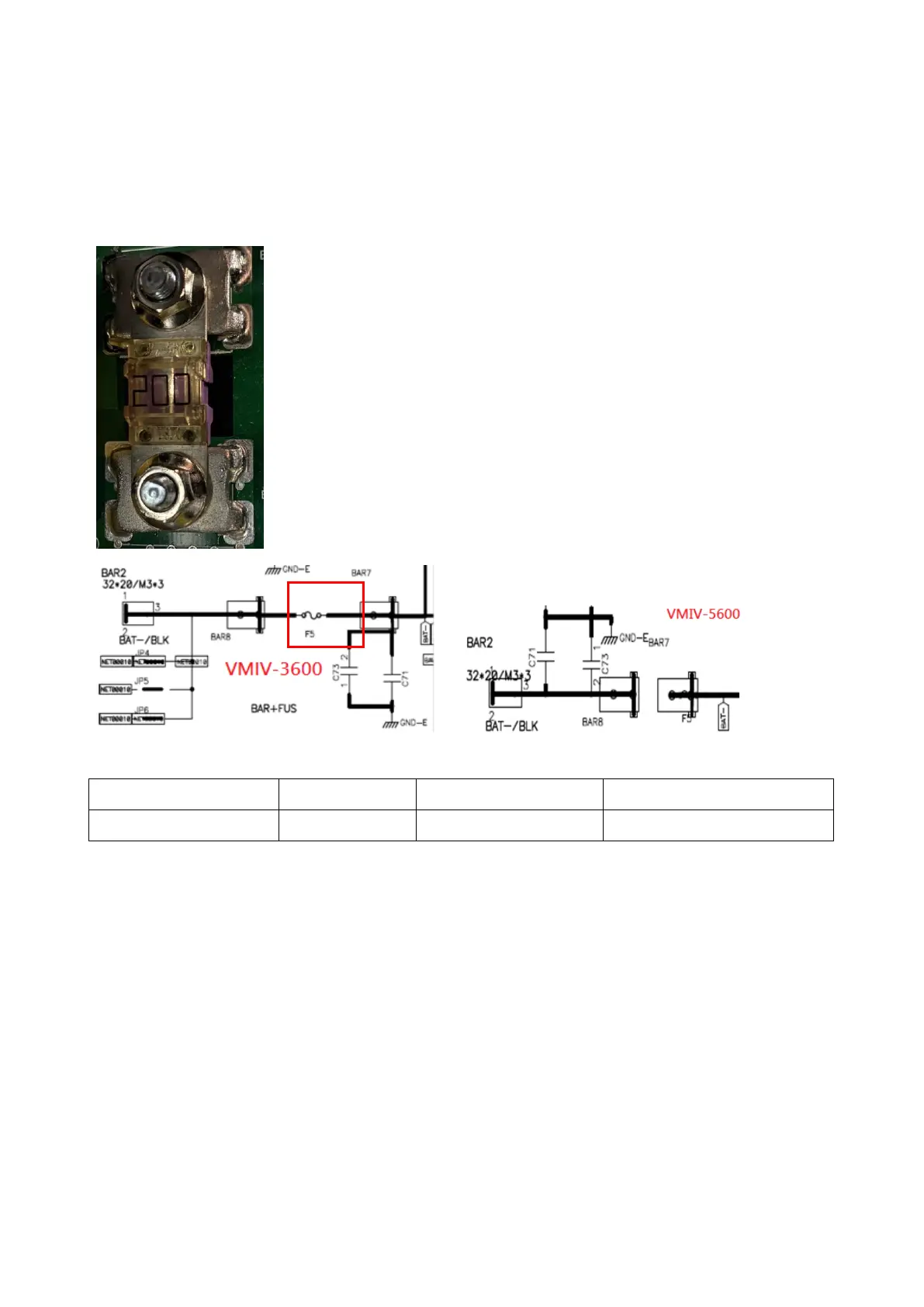

Fuse and capacitors
For VMIV-3600 FUCE 200A
For VMIV-5600 FUCE 200A
Parts
Attribute
Reference values
Failure status
F5
Resistor
0.1 ohm
Open
For VMIV-3600 C9/C11/C12/C196/C152: (4200uF 35V)
For VMIV-5600 C9/C18/C196: (6800uF 63V)
