Voltronic Axpert VM IV - Page 14

12
Diode
BE: 0.64V
BC: OL
CE: 1.09V

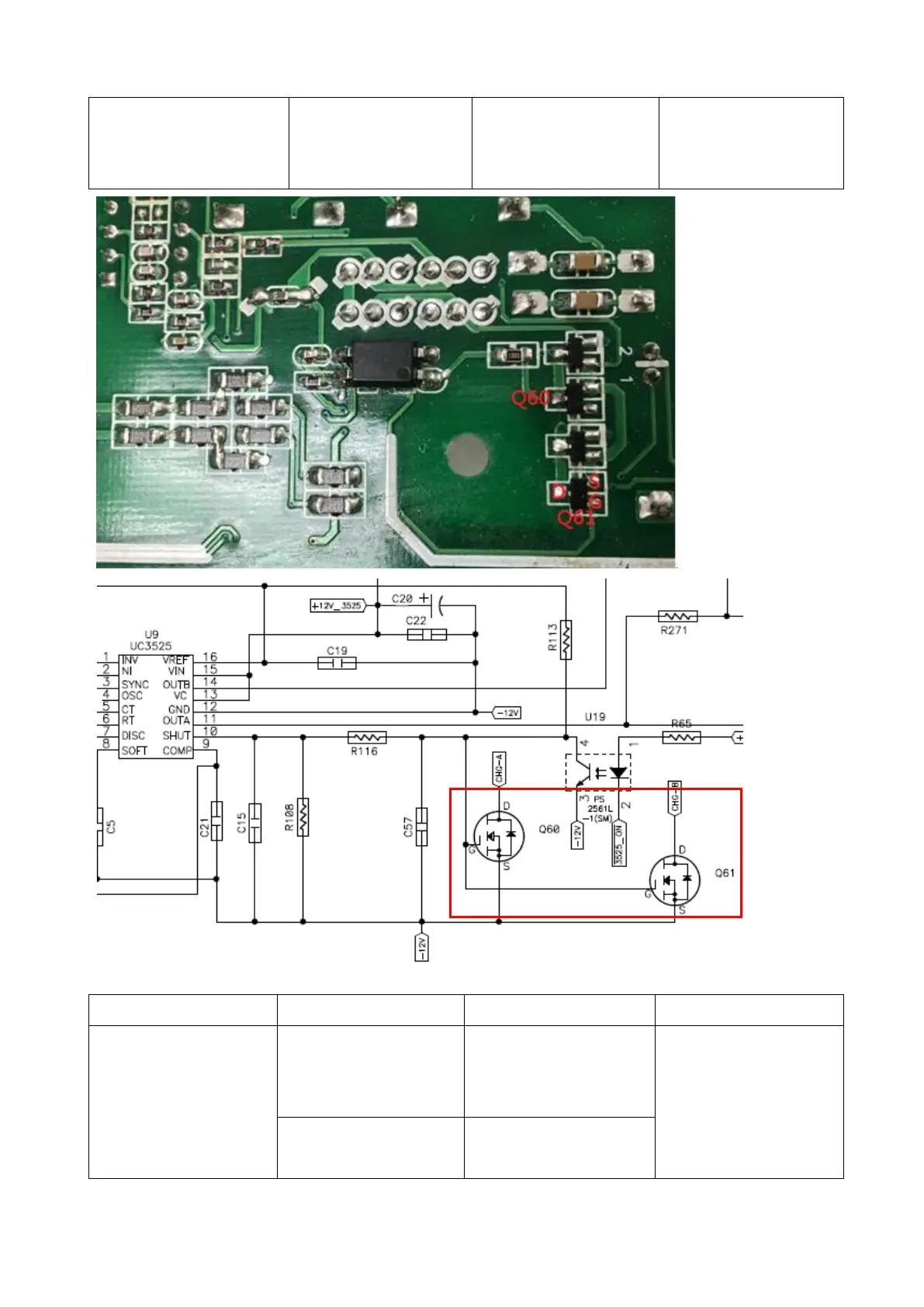

The Q60 and Q61 the MOSFET are (UT3404G 5.8A 30V NPN SOT-23 SMD)
Parts
Attribute
Reference values
Failure status
Q60/Q61
Resistor
GS: 5.637k
GD: 107k
SD: 98k
Short or explosion
Diode
SD: 0.28V
DS: 1.14V
