Voltronic Axpert VM IV - Page 25

23

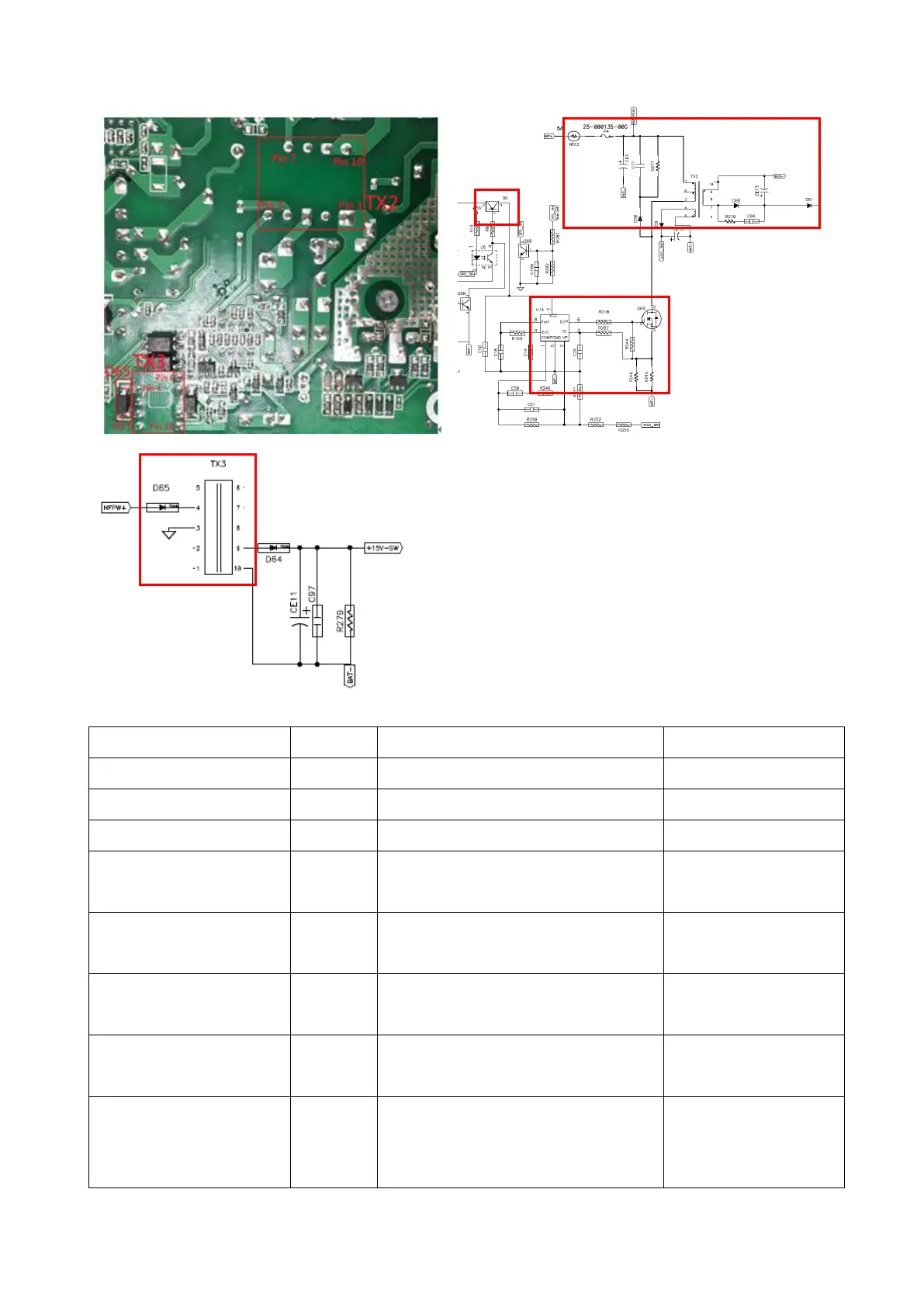

Parts
Attribute
Reference values
Failure status
F4
Resistor
0 ohm
Open or explosion
VMIV-5600 NTC2
Resistor
5.48ohm
Open or explosion
VMIV-3600 NTC2
Resistor
5 ohm
Open or explosion
D61
Diode
+ to -: 0.468V
- to +: OL
Short or explosion
D60
Diode
+ to -: 0.435V
- to +:OL
Short or explosion
VMIV-3600 R245
VMIV-5600 R245
Resistor
0.65ohm
Open or other
values
VMIV-3600 R246
VMIV-5600 R245
Resistor
0.65ohm
NC
Open or mother
values
Q69
1
Resistor
GS: 45.51k
GD: 57k(VMIV-5600)
GD: 44.6k(VMIV-3600)
Short or explosion
