Features
Your Volvo Penta product consists of three components: the engine, transom shield and the sterndrive. There are
certain parts on each component that you, the owner, must take care of to make sure that your Volvo Penta
product stays in optimum running condition. The important parts of each component are shown in the illustrations
on the following “Features” pages. Explanations of these parts and systems are described below; the maintenance
procedures are found in the Maintenance section.

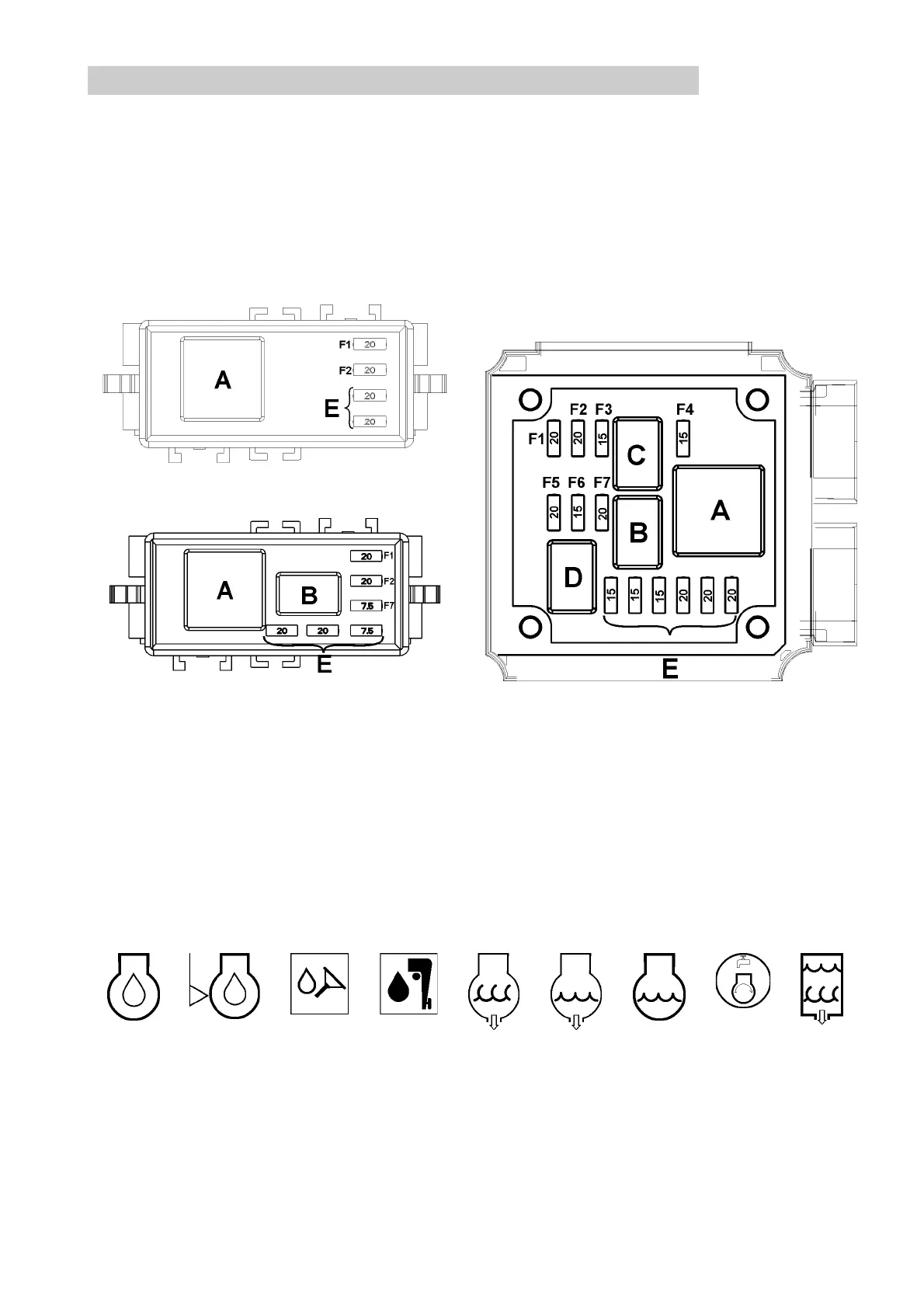

Circuit Breakers and Fuses
3.0GLP-C (Carb Engines)
22870
4.3GL-D, 5.0GL-E (Carb Engines)
22871
A Starter Relay
B Fuel Pump Relay
C Ignition Relay
D Spare Relay
E Spare Fuses (15 & 20 Amp)
F1 20 Amp Instrument Panel Accessory
4.3GXi-E, 4.3GXi-EF, 5.0GXi-E, 5.0GXi-EF, 5.7Gi-E,
5.7Gi-EF, 5.7GXi-F, 5.7GXi-FF, 8.1Gi-E, 8.1Gi-EF,
8.1GXi-D, 8.1GXi-DF (EFI Engines)
22872
F2 20 Amp Instrument Panel Accessory
F3 15 Amp Ignition/Fuel Fuse
F4 15 Amp Engine Control Module (ECM) Fuse
F5 20 Amp Spare Accessory Fuse
F6 15 Amp EVC Fuse
F7 7.5 Amp (Carb) or 20 Amp (EFI) Fuel Pump
Fuse
Legend of Symbols Used in Engine Diagrams
12 3456789
22341 22874 22343 22342 22345 22372 22873 22346 22377
1 Engine Oil
2 Engine Oil Level
3 Power Steering Fluid
4 Sterndrive Oil
5 Engine Raw Water Drain
6 Engine Coolant Drain (Closed Cooling)
7 Engine Coolant
8 Engine Flush
9 Heat Exchanger Raw Water Drain
Features
