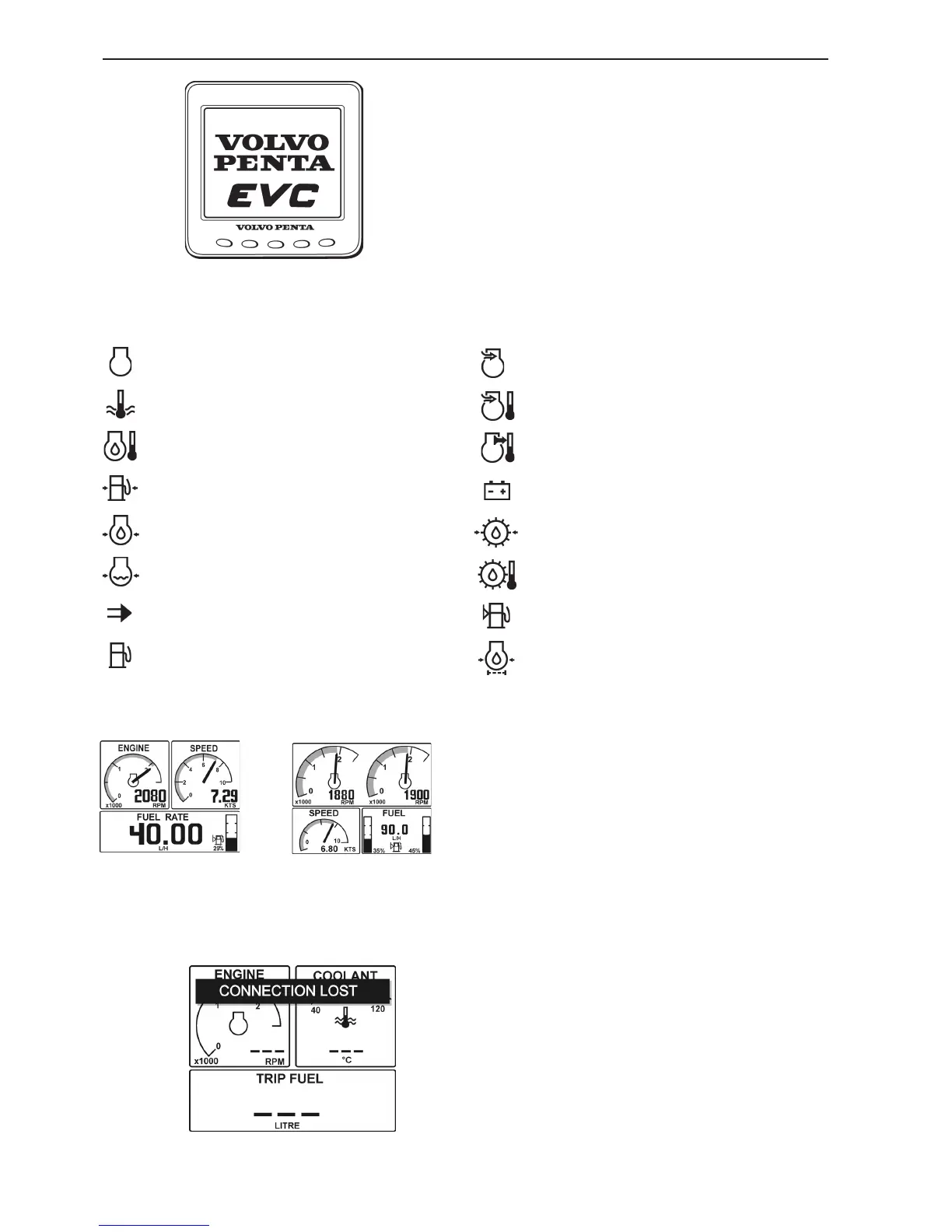

Display after starting screen
Display mode ENGINE (button 1) is always shown
after the starting screen when the display is first star-
ted up (more information about this display mode can
be found below in the instructions). Once the display
has been used, it will always show the display mode
when it starts up, that was selected when the display
was last switched off.
Figure for single engine
installation
Figure for twin engine
installation
Connection fault
If the display does not register transfer of operating
information from the electrical system, the pop-up
window will flash CONNECTION LOST When opera-
ting information has been registered/reset, the pop-
up window disappears.
Start image
This is the starting image that is shown on the display
for a brief period after starting.
If the unit gives a constant audible warning after star-
ting, the self-test has failed. The unit will still work, but
may behave in an unexpected manner.
Symbols for operating information
Turbocharge pressure (current)
Induction air temperature
Exhaust temperature
Voltage
Oil pressure, reverse gear
Oil temperature, reverse gear
Fuel level
Differential pressure, oil filter
Engine speed
Coolant temperature
Engine temperature
Fuel pump pressure
Oil pressure
Coolant temperature
Speed
Fuel consumption/time
