75
Maintenance. Fuel system
Change the filter elements

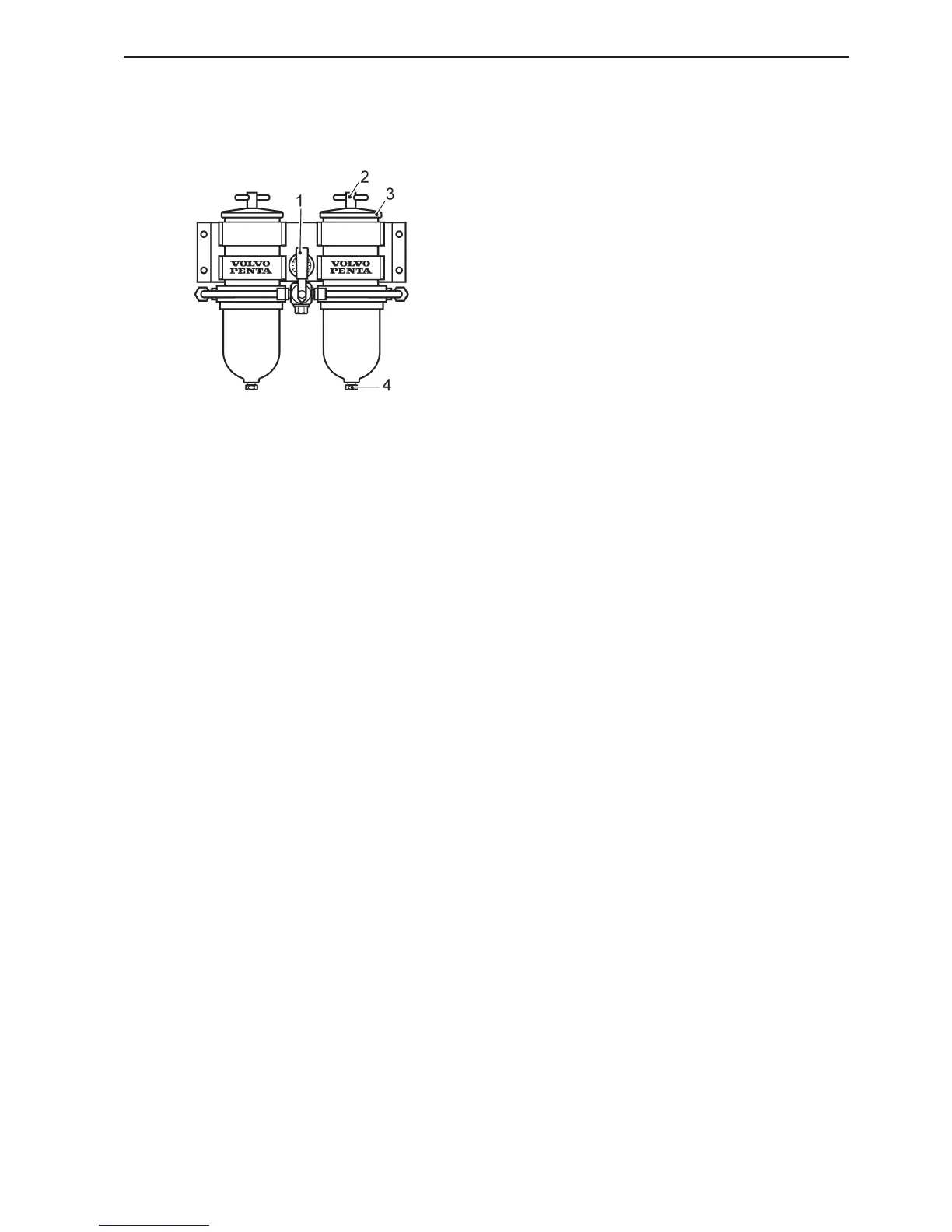

If the engine is not running close the fuel cocks on
the tank before changing filters. If the engine is run-
ning cut off the flow of fuel with the handle (1) on the
filter itself.
1. Place a receptacle under the filters and shut off
the filter to be changed.
2. Undo the T-bolt (2) and remove the cover (3).
3. Take out the insert carefully while turning it.
4. Drain off water and contaminants through the
drain plug (4).
5. Fit a new filter insert and fill the container with
clean fuel.
6. Change the gasket on the cover and the O-ring
on the T-bolt. Moisten the gasket and O-ring with
fuel before assembling.
7. Fit the cover and tighten it by hand.
8. Wipe off any fuel from the heat shield.
9. Change the other filter in the same way.
10. Open the fuel cocks and put the handle in posi-
tion for normal running. Make sure there are no
leaks.
