Controls
This section describes the controls Volvo Penta sells
for your engine. Contact your dealer if your boat is
equipped with controls other than those described
here, and you feel uncertain about their function.

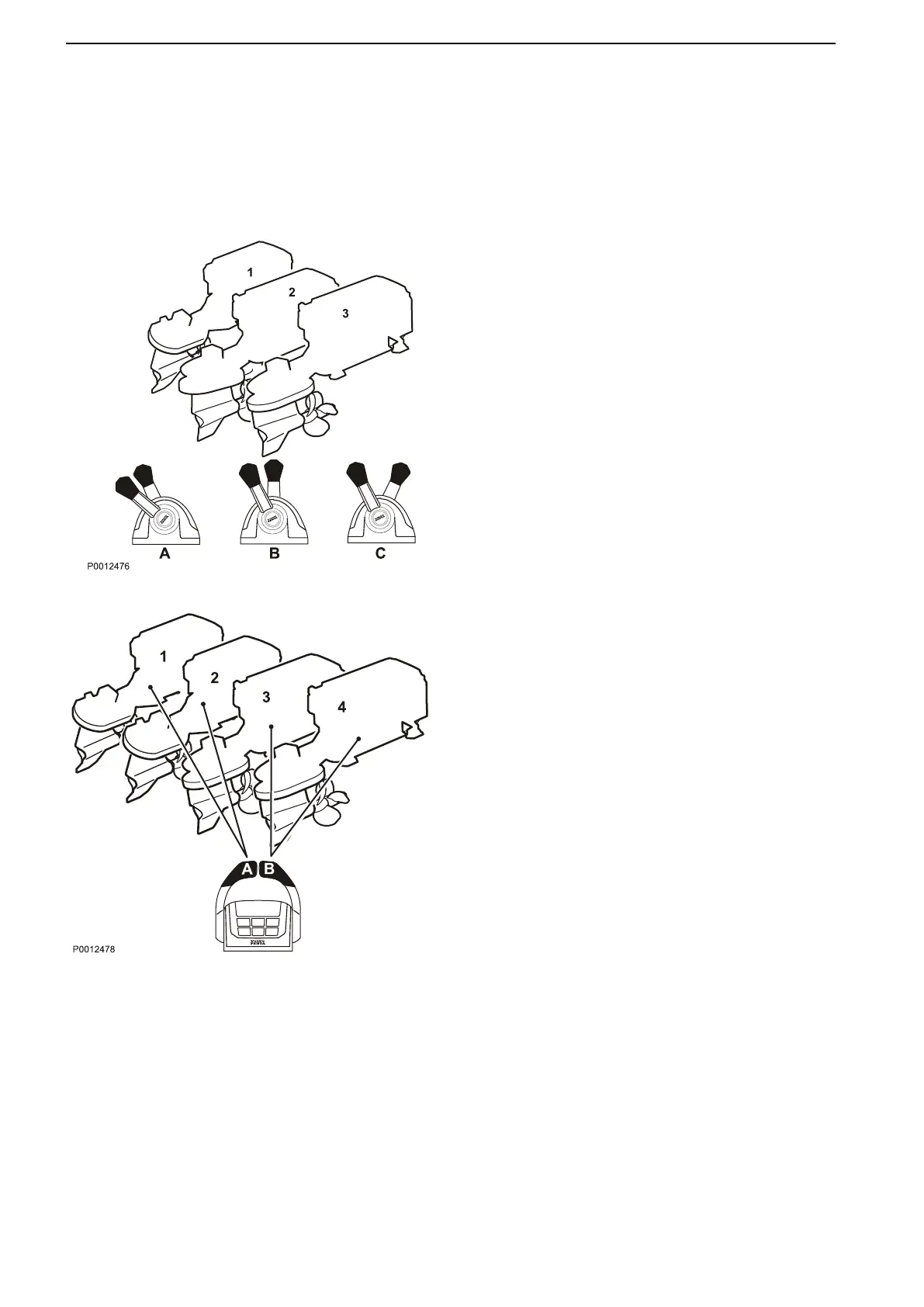

Triple installation
Both
the
adjustment of engine speed and the gear shift
function are controlled using the control levers. The
two control levers controls all engines and propulsion
units.
A If the control levers are in different positions the
centre engine (2) will operate in this range of revo-
lutions.
B If one of the control levers is in neutral propulsion
the centre propulsion unit (2) is also in neutral.
C Are the control levers in different positions, one
engaged for forward motion and the other for reward
motion, the centre propulsion unit will be in neutral.
Quadruple Installation
Both the adjustment of engine speed and the gear shift
function are controlled using the control levers. The
port side control lever (A) controls the port side engines
and propulsion units 1 and 2. The starboard control
lever (B) controls the starboard engines and propul-
sion units 3 and 4.
