Maintenance
This chapter contains general technical information and instructions on how the prescribed maintenance items
must be carried out. Read through the instructions carefully before starting work. The times when maintenance
items must be carried are indicated in the Maintenance Schedule page 72
.
Read through the safety precautions for maintenance and service in the Safety Information page 4 chapter before
work on the engine is begun.
WARNING!
Care and
maintenance work should be done with the engine stopped unless otherwise specified. Stop the engine
before opening or removing the engine hatch/hood. Make it impossible to start the engine by removing the start
key and cutting the system voltage with the main switches.

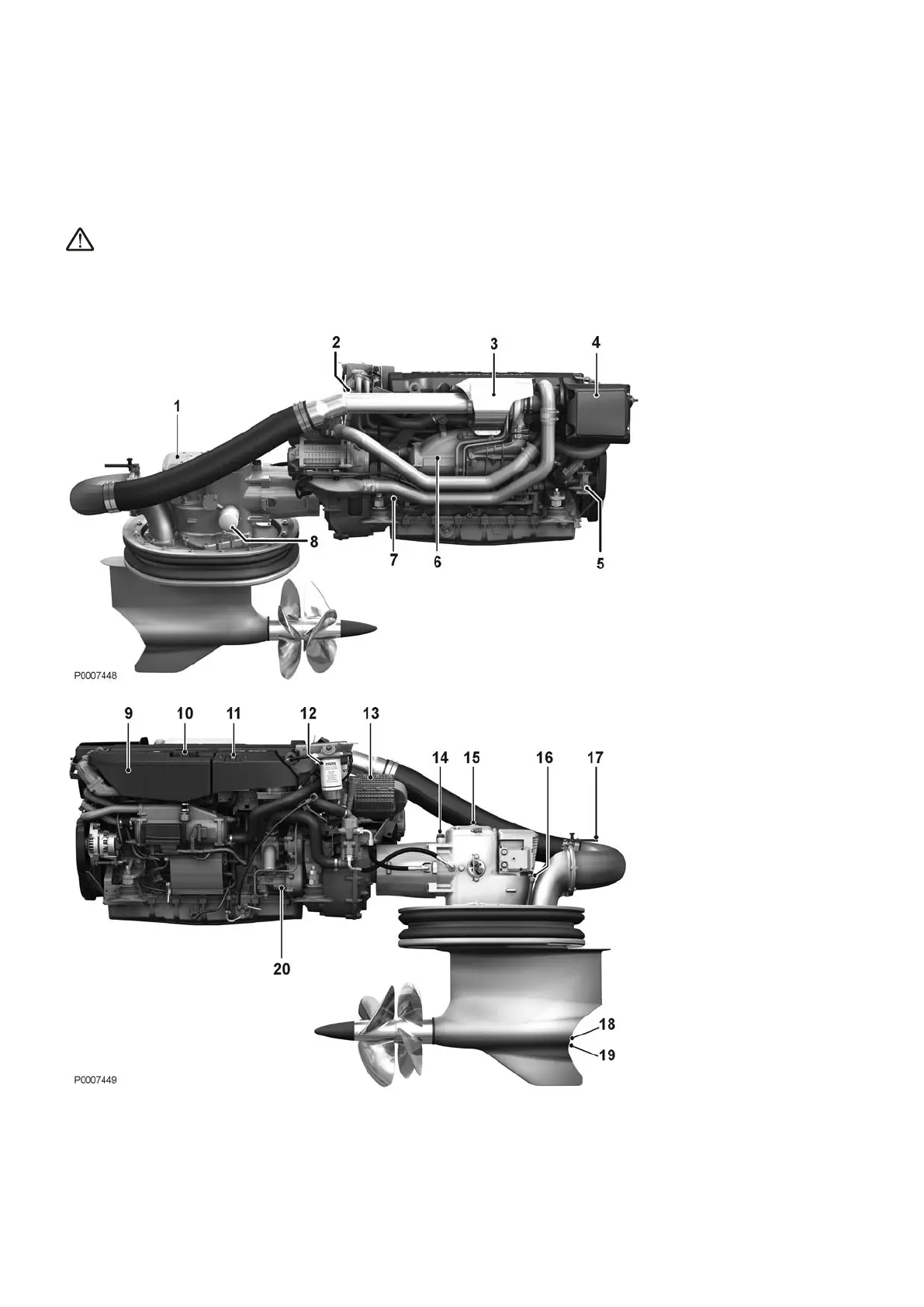

1 Volvo Penta IPS,
Servo Unit
2 Engine oil filter and
by-pass oil filter
3
Turbocharger
(located under the
heat protection)
4 Air filter
5 Circulation pump
6 Charge air cooler
7 Starter motor
8 Oil filter, IPS
9 Expansion tank
10 Coolant filler cap
11 Auxilary stop
12 Fuel filter
13 Charger
14 Oil filler cap, IPS
15 Oil drain, IPS
16 Oil dipstick, IPS
17 Exhaust tap, IPS
18 Anode, IPS
19 Oil drain, IPS
20 Seawater pump
