11

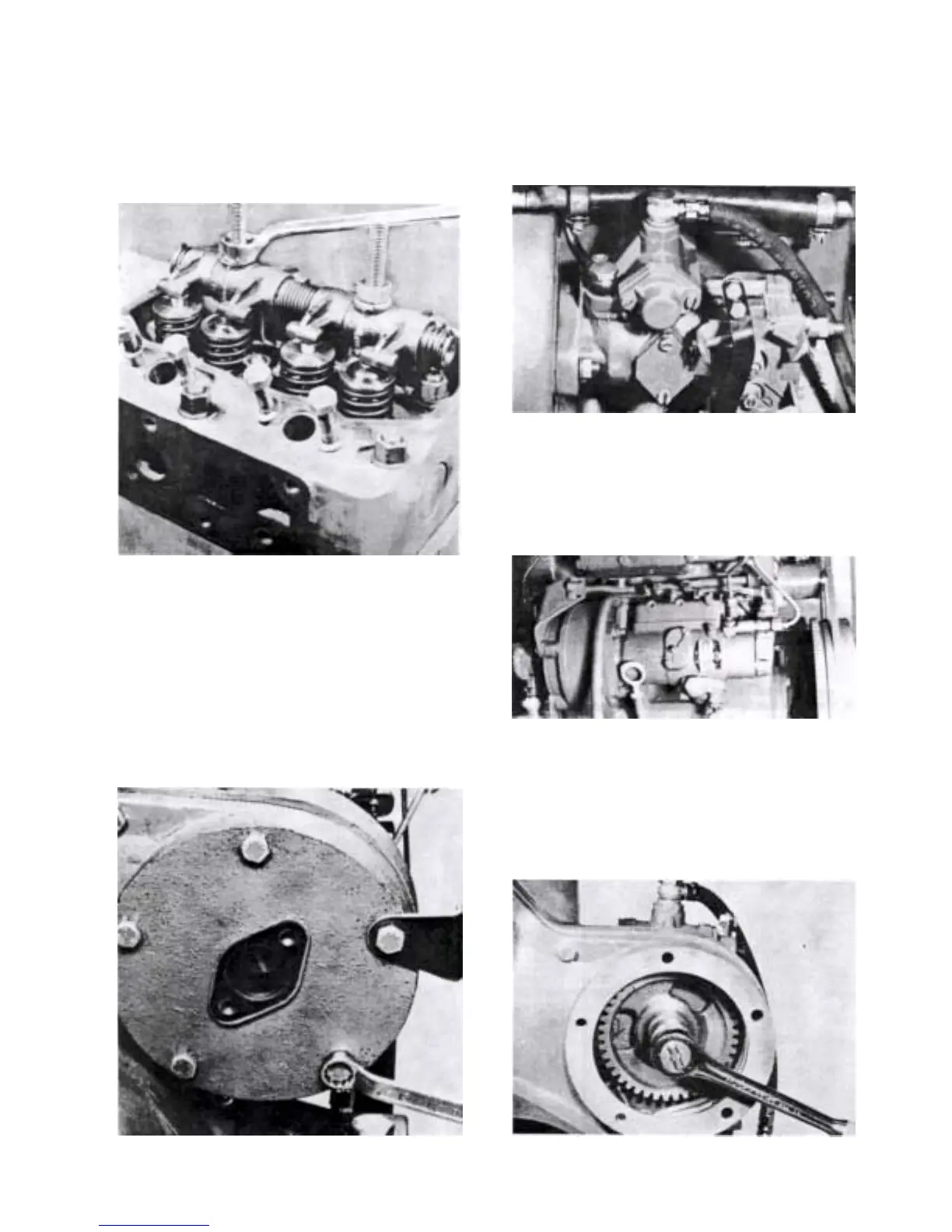

5. Remove the rocker arm cover (2 nuts), the intake
manifold (4 bolts), the rocker arm (2 nuts) and
the cylinder head (9 bolts). Take care of the
washers.
6. Remove the cover on which the water pump is
mounted. NOTE! Two of the five bolts are
shorter than the other three and are placed
towards the centre of the engine. Take care of
the control bracket. Discard the old gasket.
7. a. (BOSCH pump) Disconnect the pipe from the
fuel filter and remove the nuts for the fuel
injection pump.
7. b. (CAV pump) Disconnect the pipe from the fuel
filter and remove the nuts for the fuel injection
pump.
8. Remove the nut which drives the water pump.
Use the flywheel as a counterhold. Remove the
fuel injection pump and the gear wheel.
