12

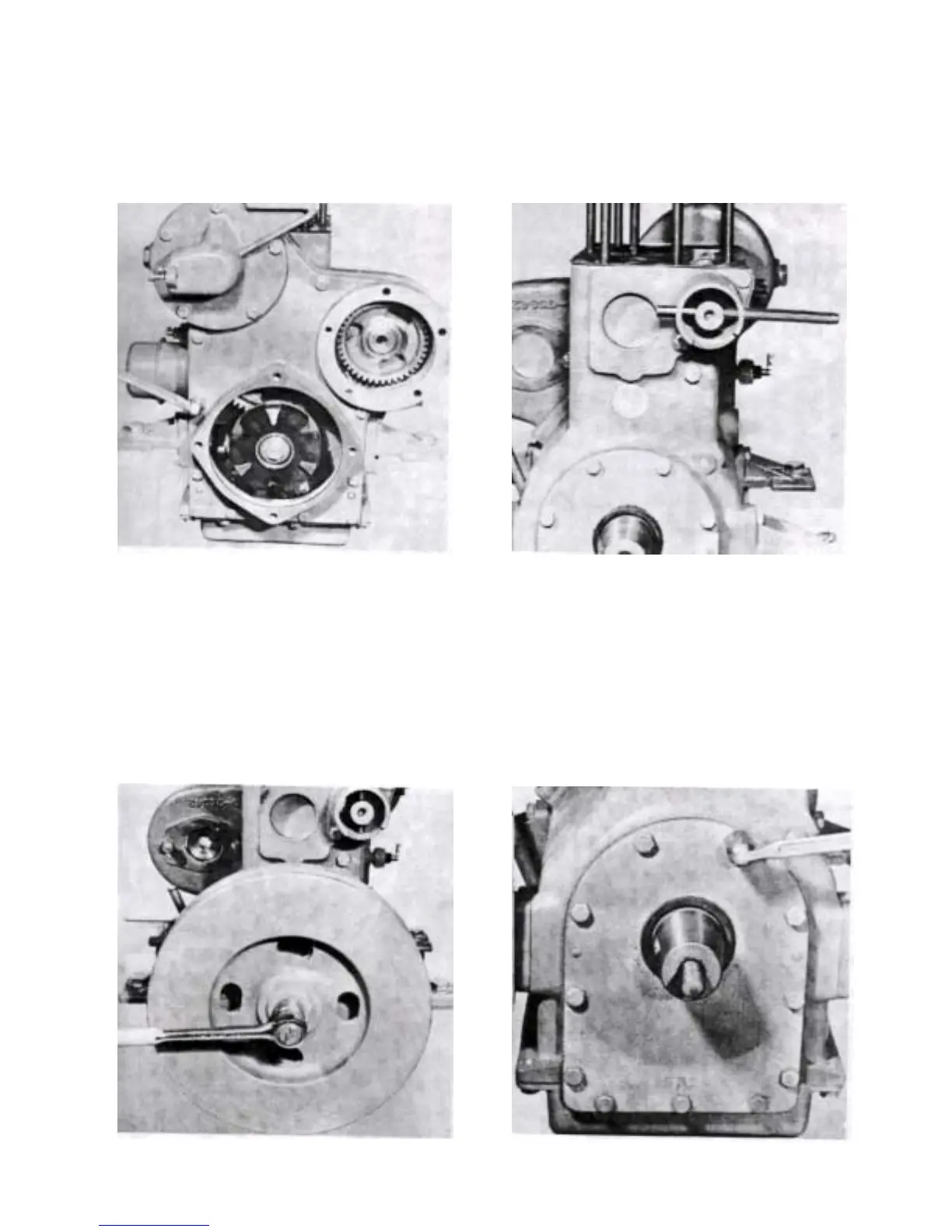

9. Remove the timing gear cover. NOTE! The small
round cover on which the fuel pump is mounted
has bolts with 3 different lengths. The bolts for
the large casing has two lengths. The two bottom
bolts are shorter than the others. Carefully lever
loose the timing gear casing from its guide pins.
Discard the gasket.
10. Remove the flywheel. Remove the nut and use a
puller. The axle is tapered and provided with a
key. Use a counterhold when releasing the nut.
11. Knock out the hand starter pin in the camshaft.
Remove the protective cover (2 bolts). NOTE!
Scrap the sealing ring and fit a new one.
12. Remove the front cover behind the flywheel (11
bolts). Note the guide pins. Carefully tap all
round. Replace the gasket and the sealing ring.
