34
DP
DPX

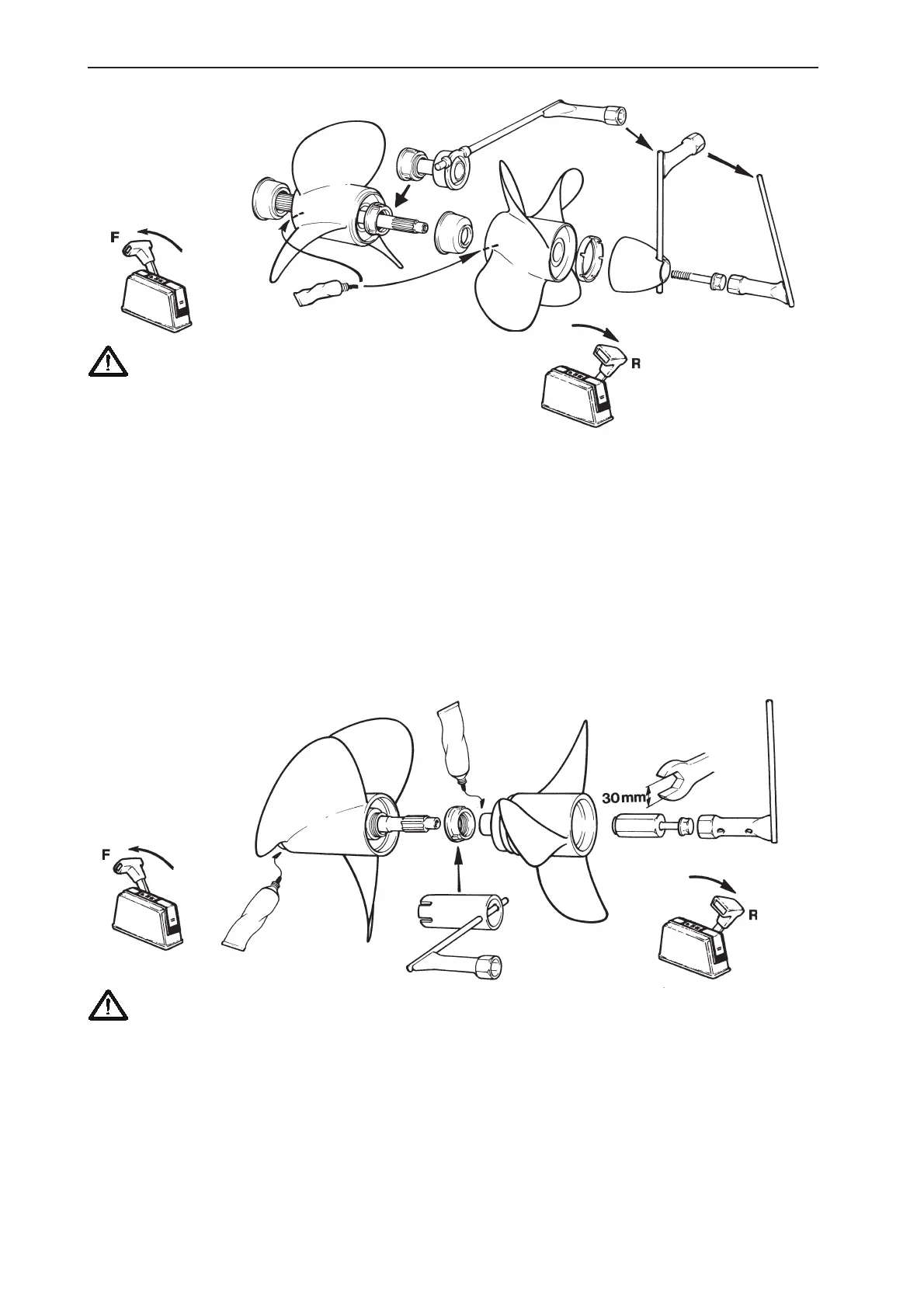

Set controls to “Reverse”.
Fit the rear propeller anti-fouling ring. Slide on the
rear propeller and then the plastic washer and spa-
cer ring, if this was previously fitted.
Screw on the propeller cone and tighten it hard. Fit
the centre screw and washer and tighten them hard.
WARNING! Remove the key from the igni-
tion lock before fitting the propellers.
Set the controls to “Forward”.
Use the tools supplied to dismantle and fit the pro-
pellers.
Lubricate both propeller hubs. Use Volvo Penta
grease 828250-1.
Slide on the front propeller. Screw on the large lock
and tighten with the tool. Tightening torque 50-70
Nm (5-7 kpm).
Set controls to “Reverse”.
Slide the rear propeller onto the shaft and tighten
with the nut. Use a 30 mm socket and tighten to
25-35 Nm (2.5-3.5 kpm).
Screw in the lock screw and tighten to 70-80 Nm (7-
8 kpm).
WARNING! Remove the key from the igni-
tion lock before fitting the propellers. Hand-
le the anti-fouling rings (fishing-line cutters)
with care, the edges are sharp and can
cause injury.
Set the controls to “Forward”.
Use the tools supplied to dismantle and install the
propellers.
Lubricate both propeller hubs. Use Volvo Penta
grease 828250-1. Slide on the anti-fouling ring (fish-
ing-line cutter) and the front propeller. Screw on the
nut and tighten with the tool. Tightening torque 50-
75 Nm (5-7.7 kpm).
Fitting propellers
