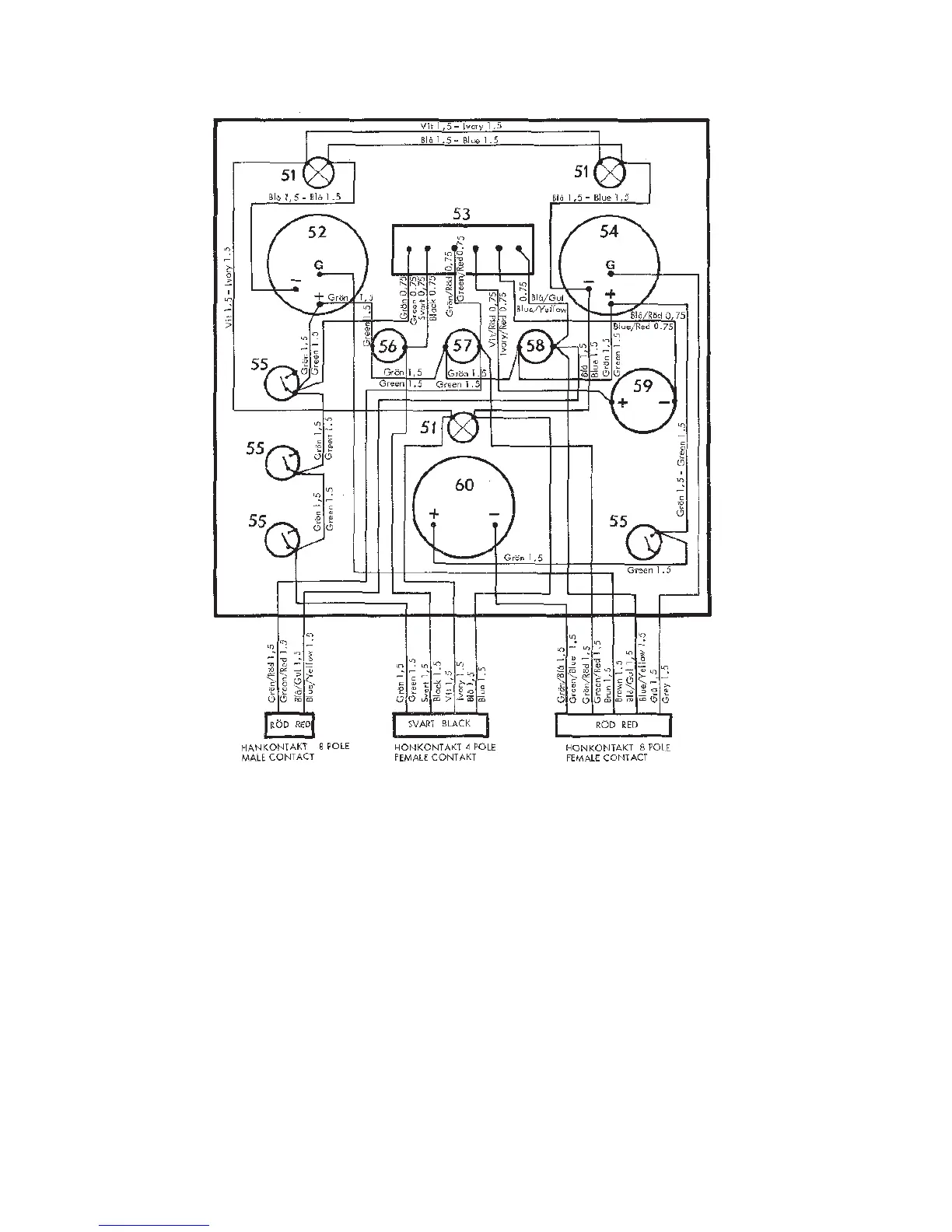

Fig. K4. Wiring diagram. Panel with supplementary instruments (alarm, etc)
51. Instrument lighting
52. Oil pressure gauge – reverse gear
53. Alarm separator
54. Pressure gauge – turbo
55. Extra switches (max. 5 A per switch)
56. Charging warning lamp
57. Oil pressure warning lamp – engine
58. Engine coolant temperature warning lamp
59. Siren
60. Hour meter
