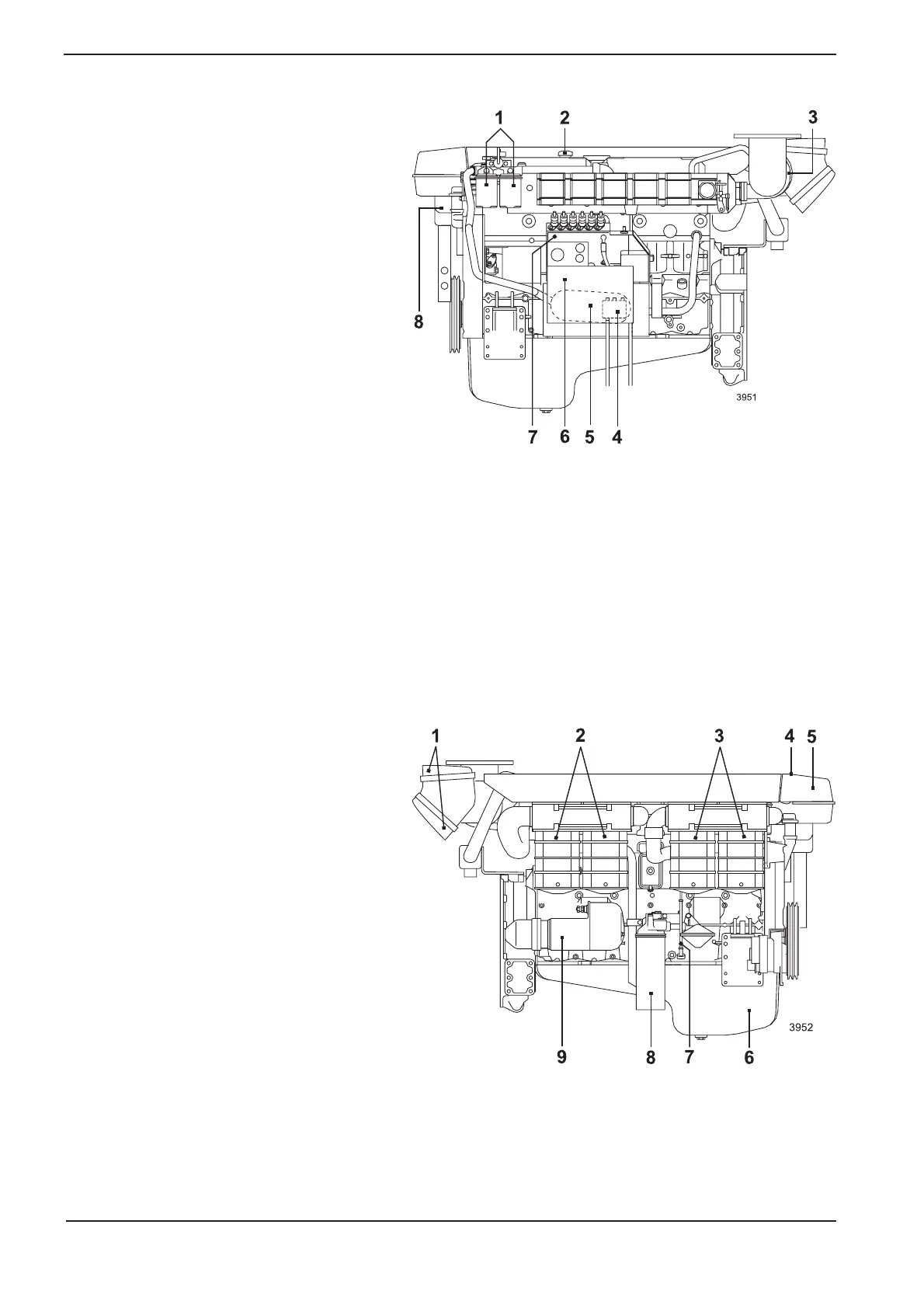

Fig. 3.2 TAMD71B (auxiliary engine variant)
turboside
1. Fine fuel filters, switchable
2. Oil filler cap
3. Turbocharger
4. Fuel shut-off valve
5. Oil cooler
6. Electrical box
7. Injection pump
8. Circulation pump
Fig. 3.3 TAMD71B (auxiliary engine variant) not
turboside
1. Air cleaner (ACL)
2. Charge air coolers (CAC)
3. Heat exchangers
4. Coolant filler cap
5. Expansion tank
6. Oil sump
7. Oil dipstick
8. Lubricating oil filter
9. Starter motor
