AB Volvo Penta / Diesel Engine TAMD71B

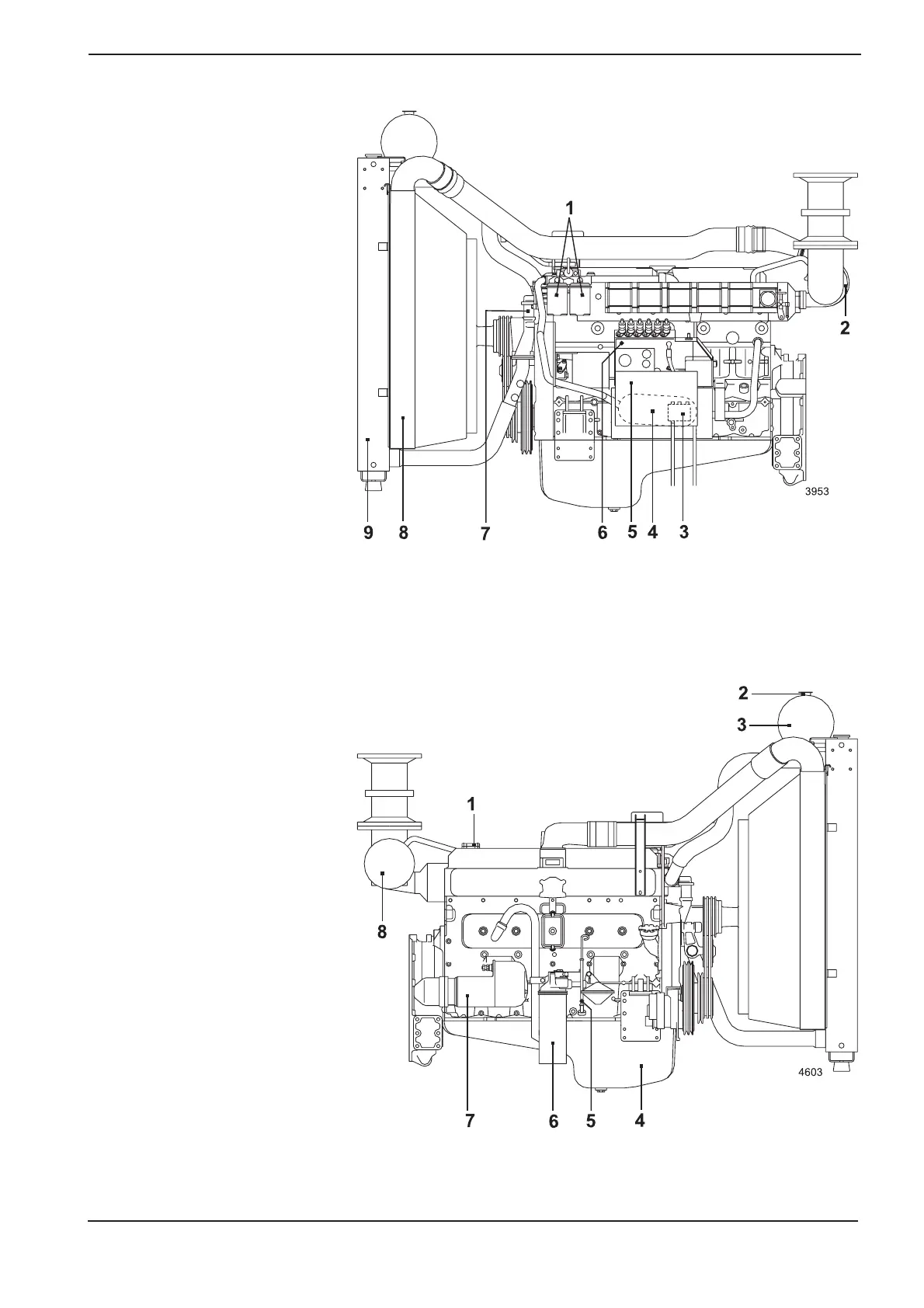

Fig. 3.4 TAMD71B RC (emergency engine with
radiator variant) turboside
1. Fuel filters, switchable
2. Turbocharger
3. Fuel shut-off valve
4. Oil cooler
5. Electrical box
6. Injection pump
7. Circulation pump
8. Charge air cooler (CAC)
9. Radiator
Fig. 3.5 TAMD71B RC (emergency engine with
radiator variant) not turboside
1. Oil filler cap
2. Coolant filler cap
3. Expansion tank
4. Oil sump
5. Oil dipstick
6. Lubricating oil filter
7. Starter motor
8. Air cleaner (ACL)
