23

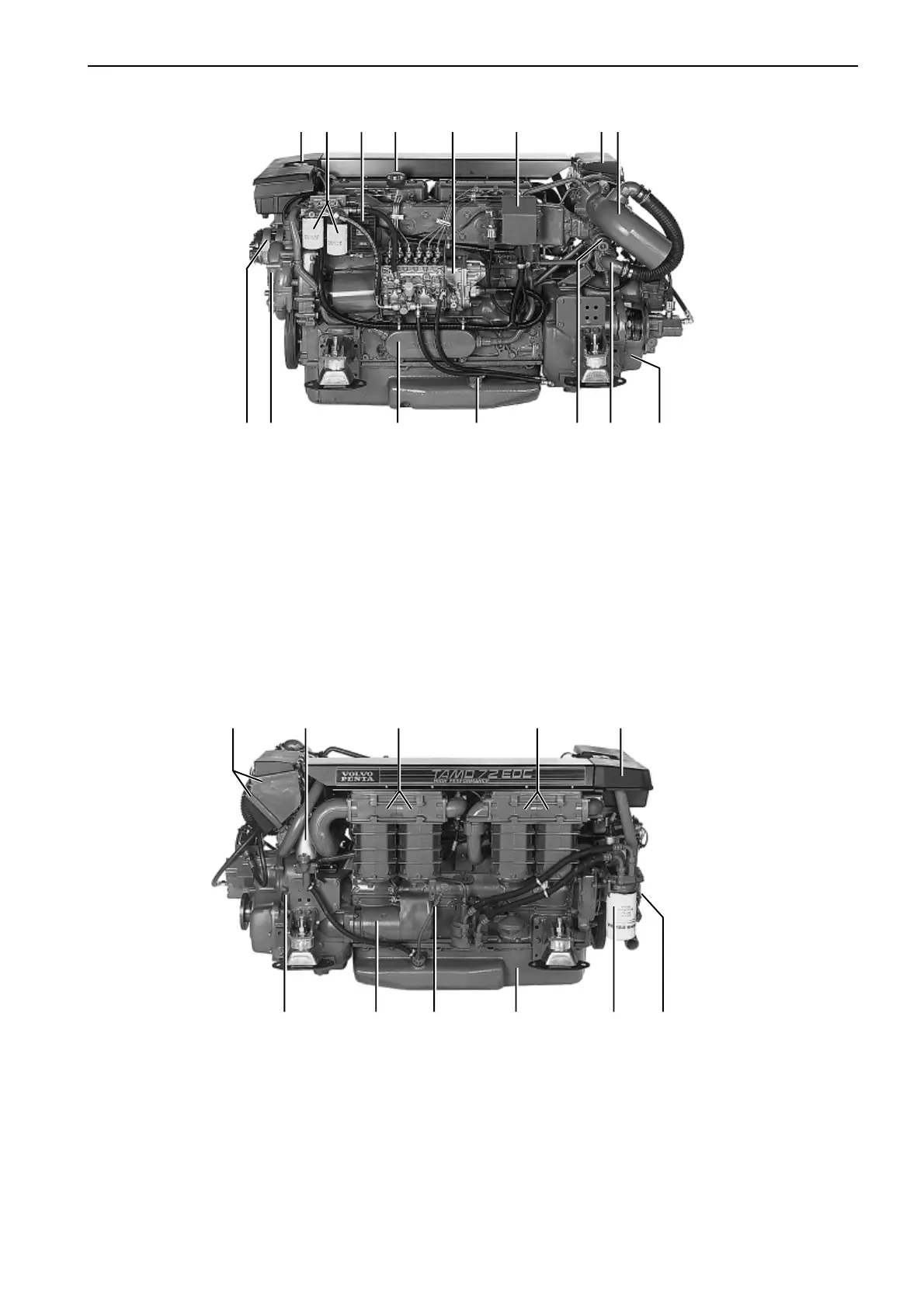

Design and function
TAMD72P-A (EDC)
1 Coolant filler cap
2 Fuel filter, fine
3 Control unit (EDC)
4 Oil filler cap
5 Injection pump
6 Junction box with circuit breakers
7 Turbocharger
8 Water cooled exhaust riser (extra equipment)
1 Air filter
2 Filter for crankcase breather
3 Aftercooler
4 Heat exchanger
5 Expansion tank
6 Sea water pump
7 Lubrication oil filter, engine (alt. location at left-
hand rear of engine as extra equipment)
8 Sump
9 Dipstick
10 Start motor
11 Dipstick, reverse gear, TD MG507-1
9 Reverse gear, TD MG507-1
10 Oil cooler, reverse gear
11 Wastegate valve (by-pass valve)
12 Alt. dipstick location
13 Oil cooler, engine
14 Circulation pump
15 Alternator
12 3 4 5 6 7
13 12 11 10 9
8
15 14
23 45
11 10 9 8 7 6
1
