31
Repair instructions
Engine stand attachment
Jig no. 9996787 is used to attach the engine to the
engine stand. The jig is screwed to the right-hand side
of the engine, as in the illustration below.
NOTE! It is important that the note about the numbers
and dimensions of screws is observed, for safe at-
tachment of the engine.
Screws required:
6(x) series 7(x) series
3 no. M8x30 mm M8x30 mm
2 no. M10x30 mm M10x30 mm
2 no. M12x40 mm
Before the engine jig can be fitted, and the engine at-
tached to the engine stand, the following components
must be removed from the engine:
TAMD61/62
Heat exchanger, aftercooler, start motor, oil filter
bracket, front engine mounting and rear hatch for
valve lifter.
TAMD63
Heat exchanger, aftercooler, start motor, oil filter
bracket, front engine mounting, rear hatch for valve
lifter, air filter and expansion tank
TAMD71/72
Heat exchanger, aftercooler, start motor, oil filter
bracket, rear hatch for valve lifter and oil filter hous-
ing.

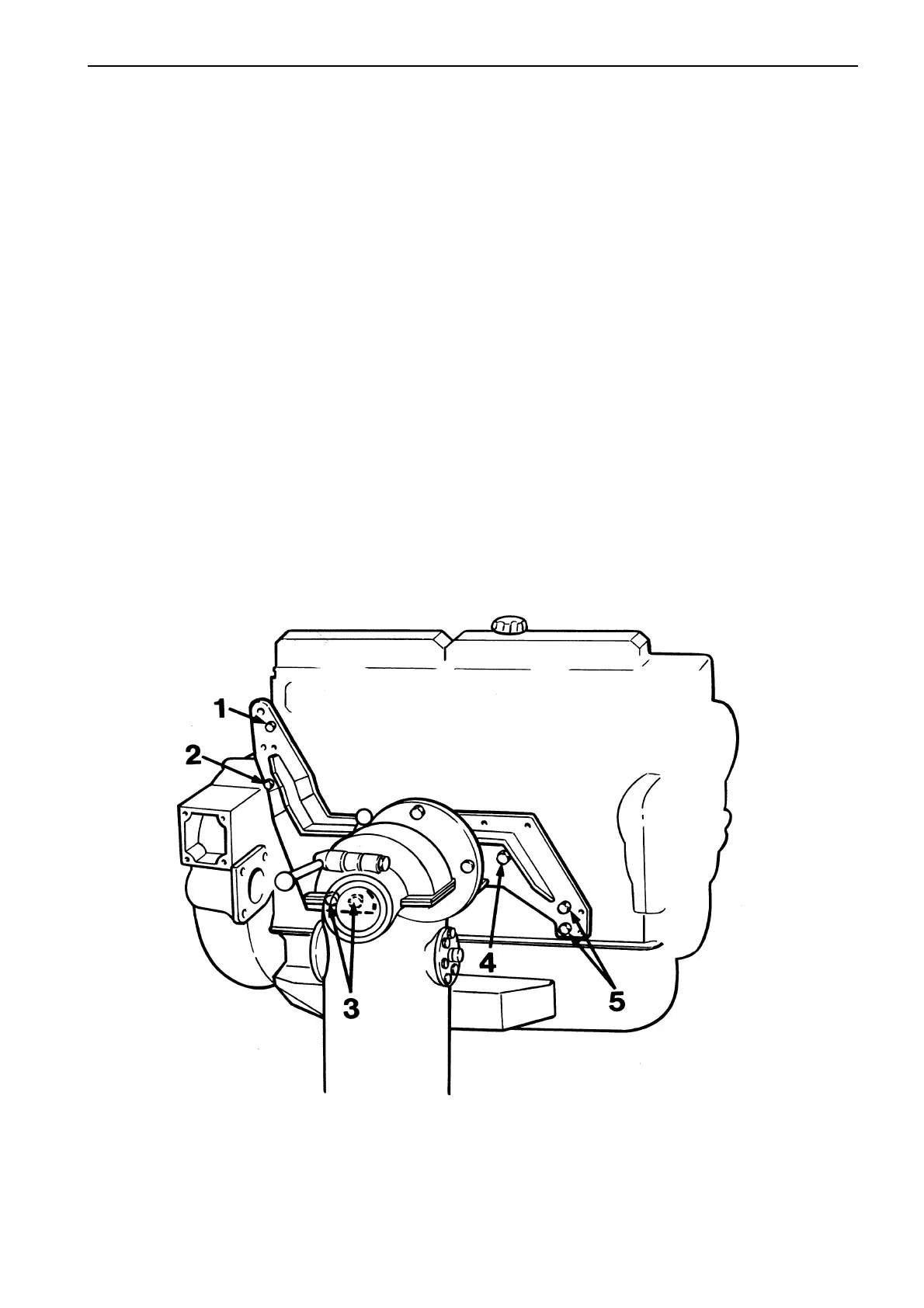

1 M8x30 mm 4 M10x30 mm [6(x) series]
2 M10x30 mm [6(x) series] 5 M12x40
3 M8x30 mm
