9

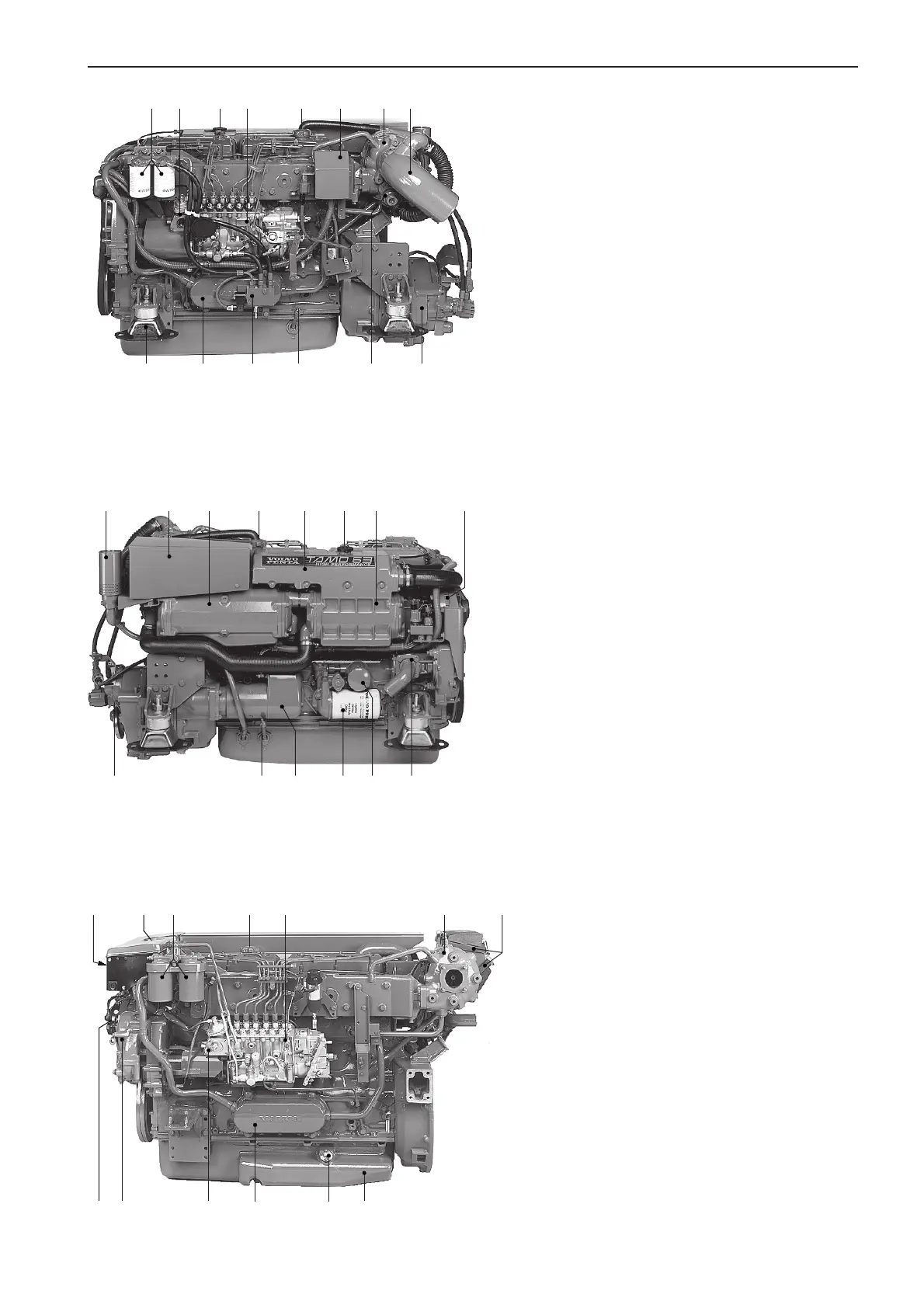

Fig. 1. TAMD63L-A, TAMD63P-A
1. Fine fuel filters
2. Smoke limiter
3. Engine coolant filler cap
4. Injection pump
5. Oil filler cap
6. Terminal box with semi-automatic fuses
7. Turbocharger
8. Water-cooled exhaust bend (accessory)
9. Reverse gear MPM IRM 220A-1
10. TAMD63P: Wastegate valve (by-pass valve)
11. Oil dipstick, engine
12. Solenoid valve (fuel cut-off valve) for
stopping engine
13. Oil cooler, engine
14. Flexible engine mounting (accessory)
Fig. 2. TAMD63L-A, TAMD63P-A
1. Crankcase ventilation filter
2. Air Cleaner (ACL)
3. Charge air cooler (CAC)
4. Oil filler cap
5. Expansion tank
6. Engine coolant filler cap
7. Heat exchanger
8. AC generator
9. Seawater pump
10. By-pass filter for lubricating oil
11. Lubricating oil filter, engine
12. Starter motor
13. Oil dipstick, engine
14. Oil dipstick, reverse gear.
Fig. 3. TAMD71B (auxiliary engine variant)
1. Terminal box with semi-automatic fuses
2. Engine coolant filler cap
3. Fine fuel filters, interchangeable
4. Oil filler cap
5. Injection pump
6. Turbocharger
7. Air Cleaner (ACL)
8. Oil sump
9. Alt. location of oil dipstick
10. Oil cooler, engine
11. Smoke limiter
12. Circulation pump
13. AC generator
12 34 5 6 78
14 13 12 11 10 9
14 13 12 11 10 9
1234567 8
123 45 6 7
13 12 11 10 9 8
