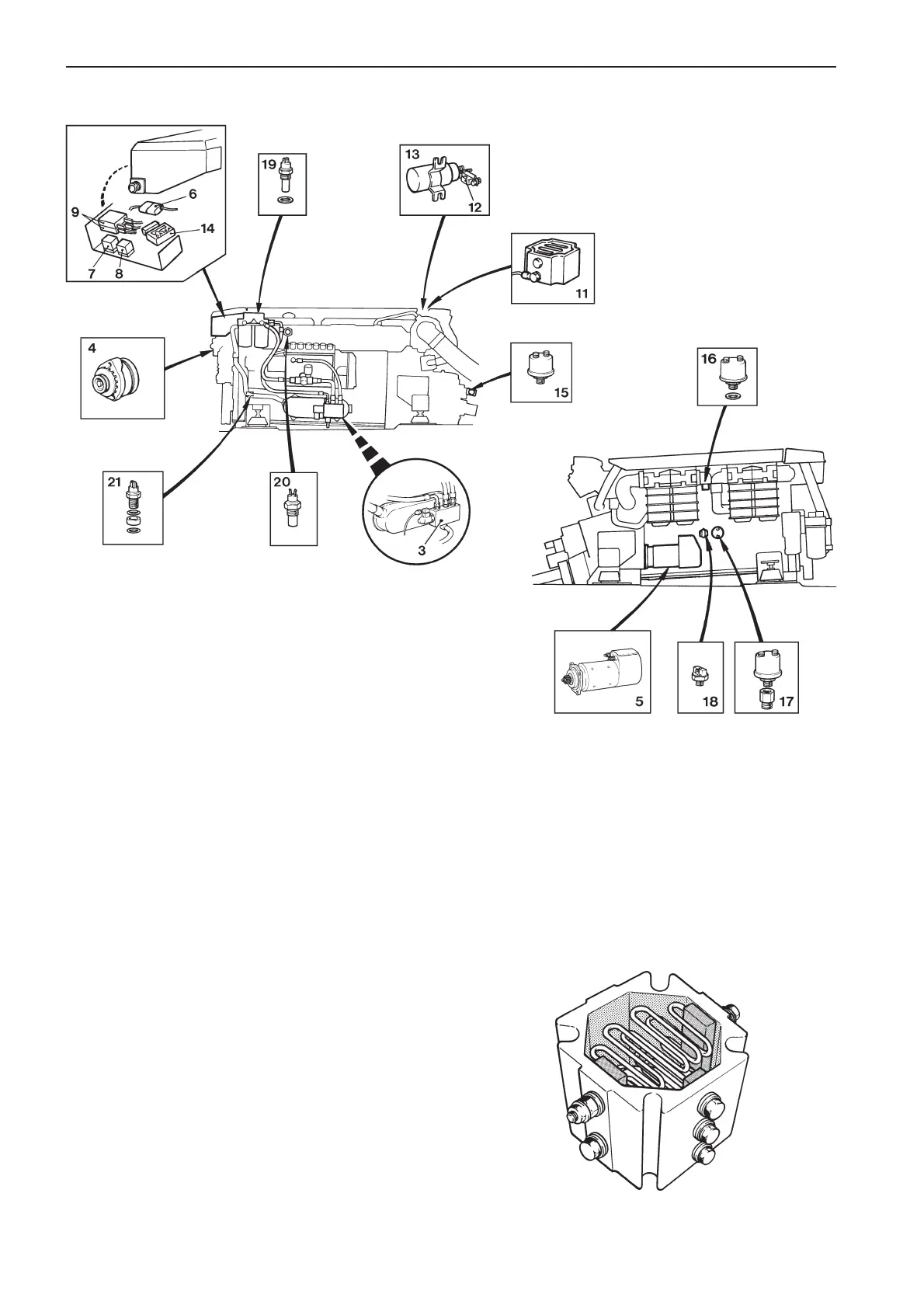

Note. The components in the figures are numbered the same
as in the engine’s wiring diagram on page 77.
3. Solenoid (fuel shut-off valve) 13. Relay for starter element
4. Generator 14. Time relay
5. Starter motor 15. Oil pressure sender, reverse gear
6. Fuse for fuel shut-off valve 16. Pressure sender, Turbo boost pressure
7. Stop relay 17. Oil pressure sender, engine
8. Starter relay 18. Oil pressure switch, engine
9. Semi-automatic fuses 19. Engine coolant temperature sender
11. Starter element 20. Coolant temperature switch
12. Fuse for starter element 21. Engine speed (rpm) sender
Starter element (TAMD71B)
The starter element heats the inlet air to the engine.
The element consists of three series connected wire
elements installed in a connecting pipe. It is located
between the turbocharger and the engine intake
manifold. The element is automatically engaged when
starting when the starter key is turned to and passes
the pre-heating position (II). This sends a voltage
pulse to a time relay, which in turn controls engage-
ment of the element via a control relay. The engage-
ment time is approx. 50 sec.
See wiring diagram on page 77. Starter element
