Volvo Penta TAMD74A - Component Identification TAMD74

12
Presentation

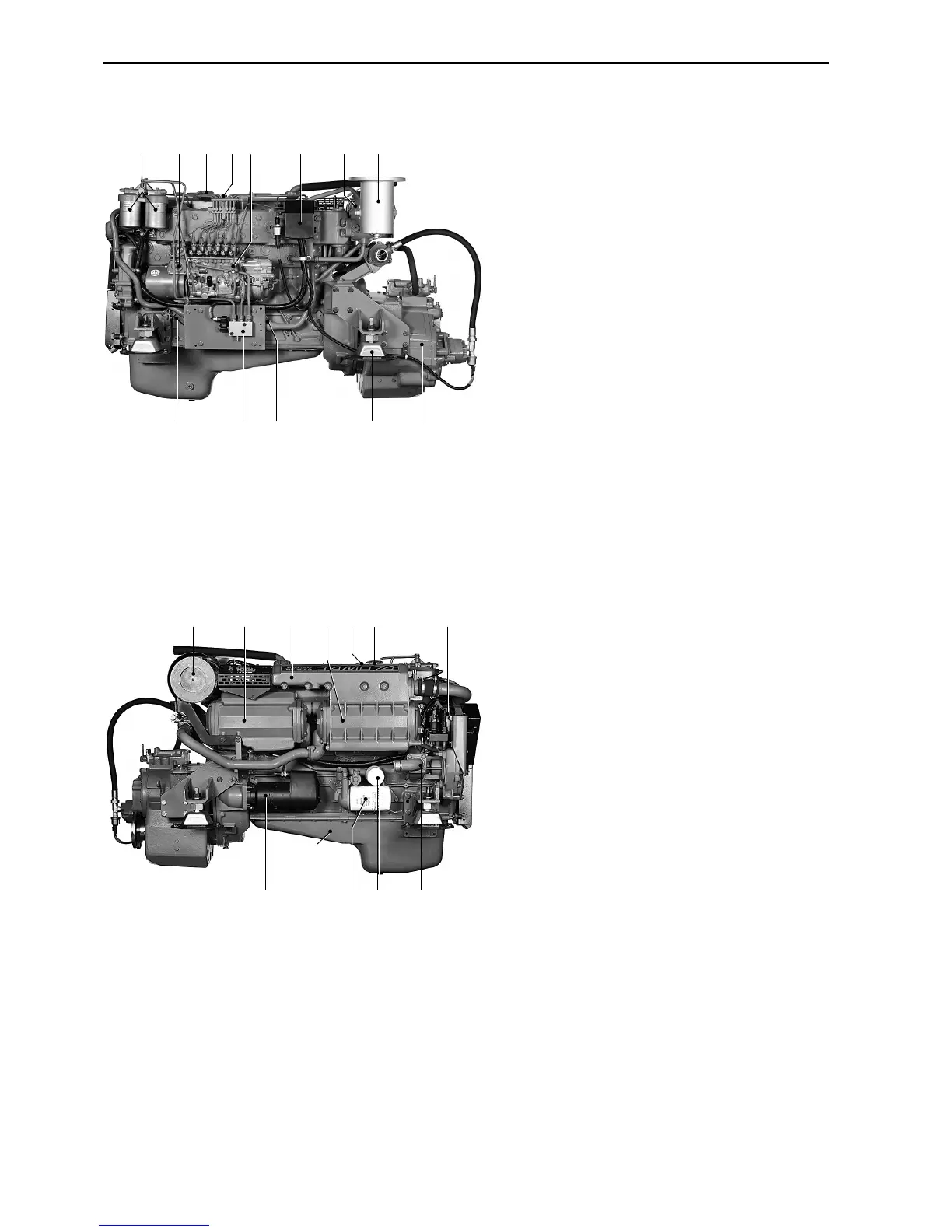

TAMD74A-A, TAMD74A-B
1. Fuel fine filters
2. Smoke limiter
3. Oil filler cap
4. Coolant filler cap
5. Injection pump
6. Distribution box with semi-automatic
fuses
7. Turbocharger*
8. Exhaust pipe elbow
9. Oil dipstick, engine
10. Fuel shut-off valve
11. Oil cooler, engine
12. Flexible engine mounting (option)
13. Reverse gear (TD MG5091DC)
* TAMD74A-B: With wastegate.
TAMD74A-A, TAMD74A-B
1. Air filter
2. Charge air cooler
3. Expansion tank
4. Heat exchanger
5. Coolant filler cap
6. Oil filler cap
7. Alternator
8. Starter motor
9. Oil sump
10. Oil filter, engine
11. By-pass filter for engine oil
12. Sea water pump
