Volvo B10M - Page 82

80
24 V 10/20A
0332204204
BOSCH
24 V 10/20A
0332204204
BOSCH
24 V 10/20A
0332204204
BOSCH
24 V 10/20A
0332204204
BOSCH
8
8
8
8
24 V 10/20A
0332204204
BOSCH
24 V 10/20A
0332204204
BOSCH
3024-2
3024-1
3025 3044
3046
3045
40
41
If anything happens

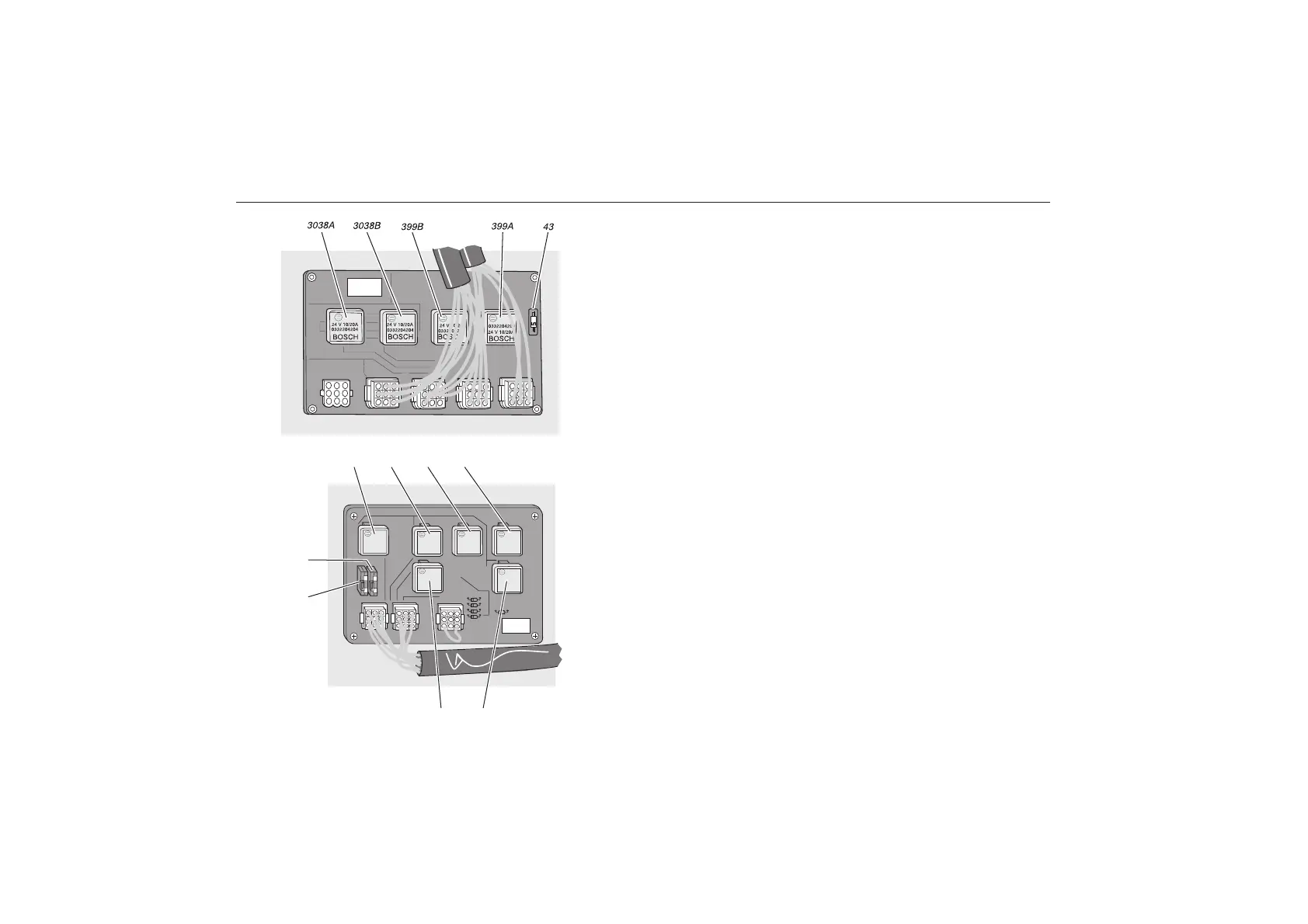

Fuses and relays on EGS circuit board
Fuse Amperage Circuit
43 5A Control unit supply
(EGS control system is supplied from fuse ”10” on
the main circuit board)
Relay Circuit
399A Safety relay, neutral position
399B Control unit supply
3038A Polarity reverse, start inhibitor
3038B Polarity reverse, reverse light
Fuses and relays on ABS circuit board
Fuse Amperage Circuit
40 8A Control unit supply 1
41 8A Control unit supply 2
(ABS control system is supplied from fuse ”15” on
the main circuit board)
Relay Circuit
3024-1 Control unit supply 1
3024-2 Control unit supply 2
3025 Indicator light
3044 Block for gearbox lock-up (automatic)
3045 Block for gearbox lock-up (automatic)
3046 Retarder disengagement
