81
If anything happens
Control units

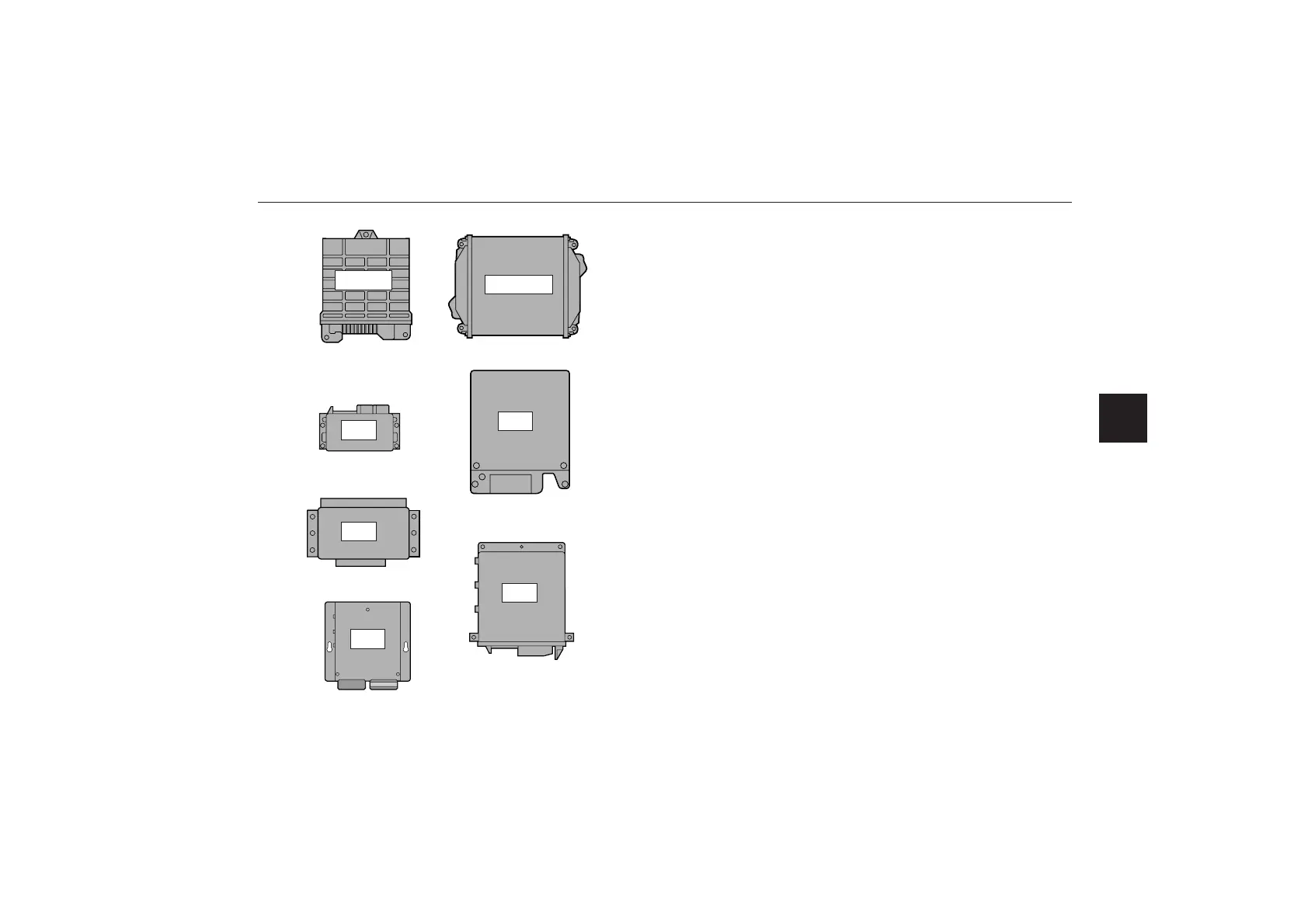

The electronic control units normally present on a B10M
chassis are shown here in silhouette and to the same scale.
909 Automatic gearbox
9002 ECS suspension system
9008 ABS (ASR)
9054 Hydraulic retarder
9058 EDC fuel control system
9064 Electromagnetic retarder
9059 Gearbox G8 EGS. Usually located behind the
driver. See control unit on page 92.
Other fuses and relays
On additional electrical distribution box
Fuse Amperage Circuit
44 5A EDC controls
45 10A EDC system, supply
Relay Circuit
354B* ECS supply
397 Cruise function, hydraulic retarder 1
398 Cruise function, hydraulic retarder 2
3014 Indicator light, levelling control
3060 EDC relay box
3104 Injection timing adjuster, DH10A-360 engine
909 (Voith)
909 (ZF)
9008
9058
9002
9054
9064
