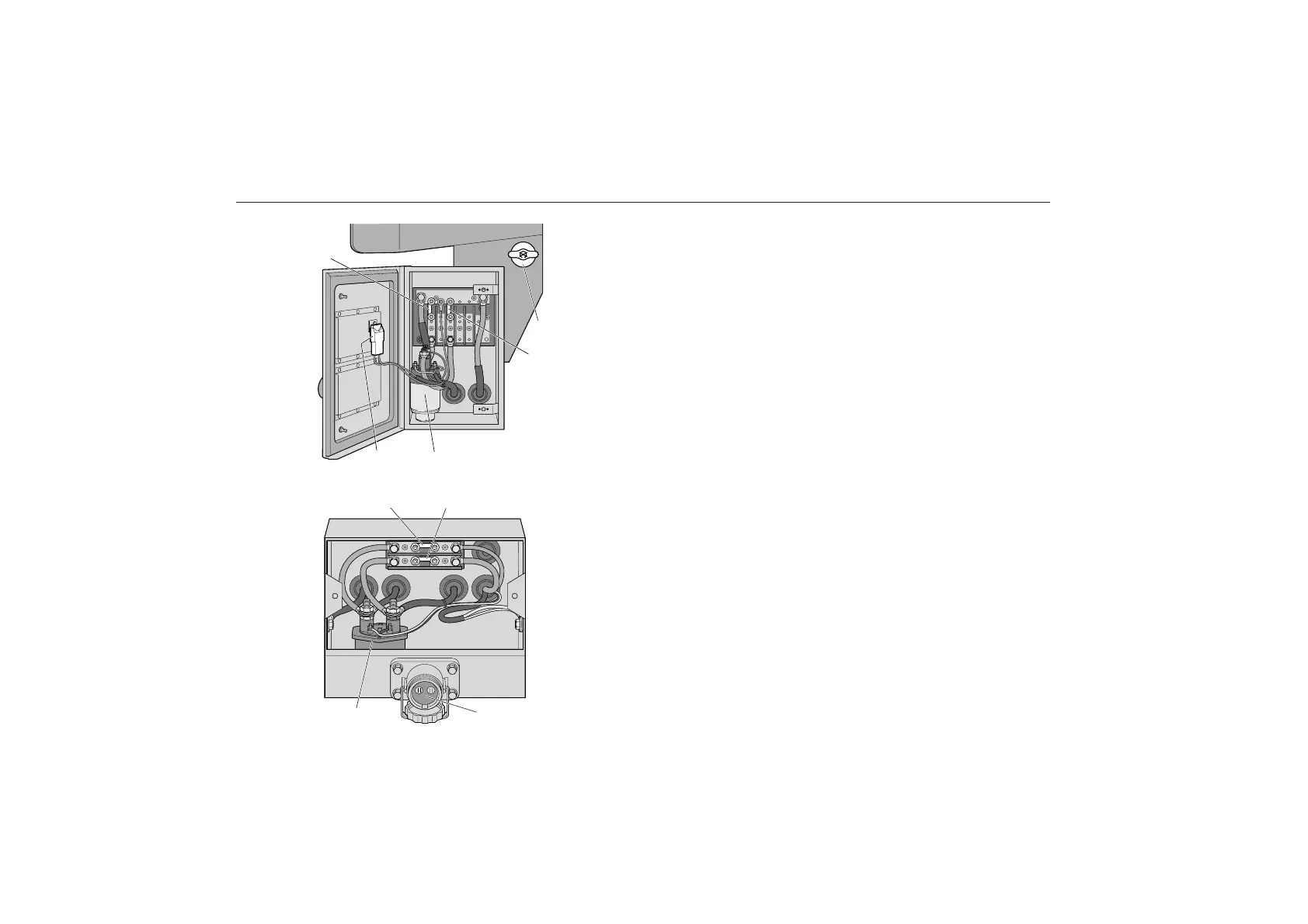

Fuses and relay in junction box in front of
core assembly
Fuse Amperage Circuit
33 150A Starting heater
37 200A Electric retarder
46 10A Reserve supply EDC
Relay Circuit
312 Starting heater
No. Description
X Mechanical engine shut-down
Fuses and relays in electrical distribution box
in front end of battery box
Applies to buses with original battery box (located under the
driver’s position).
Fuse Amperage Circuit
34 80A Supply to electrical distribution box
after battery master switch (”+30”)
35 80A Supply to electrical distribution box
before battery master switch (”+”)
Relay Circuit
342A Electric battery master switch
No. Description
85 Rapid charge socket
ENGINE STOP
46
37
33
312
X
342A 85
34
35
