Section 01: ENGINE
PA1578 SECTION 01 REVISED AUGUST 2012 7

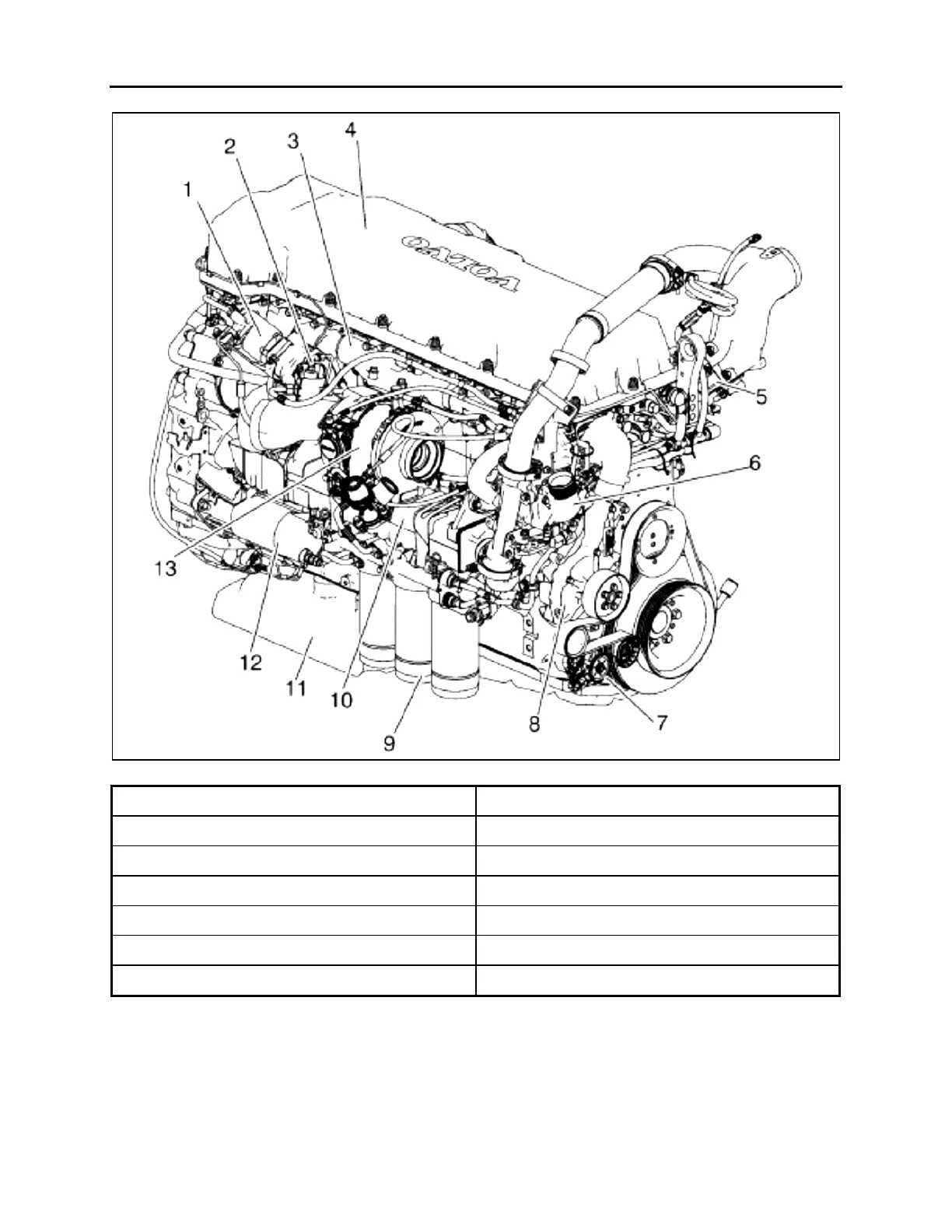

FIGURE 3: D13F ENGINE, TURBO SIDE (TYPICAL)
1. EGR Valve 8. Coolant Pump
2. Aftertreatment Fuel Injector 9. Oil Filters
3. Exhaust Manifold 10. EGR Cooler
4. Valve Cover 11. Oil Pan
5. Engine Preheater Element 12. Starter Motor
6. Thermostat Cover 13. Turbocharger
7. Belt Tensioner
1.3 ENGINE OIL
1.3.1 General
Keep the engine oil at the proper level and change it at the recommended intervals. Always replace the
oil filters at the same time as when the oil is changed.
