Section 01: ENGINE
PA1578 SECTION 01 REVISED AUGUST 2012 11

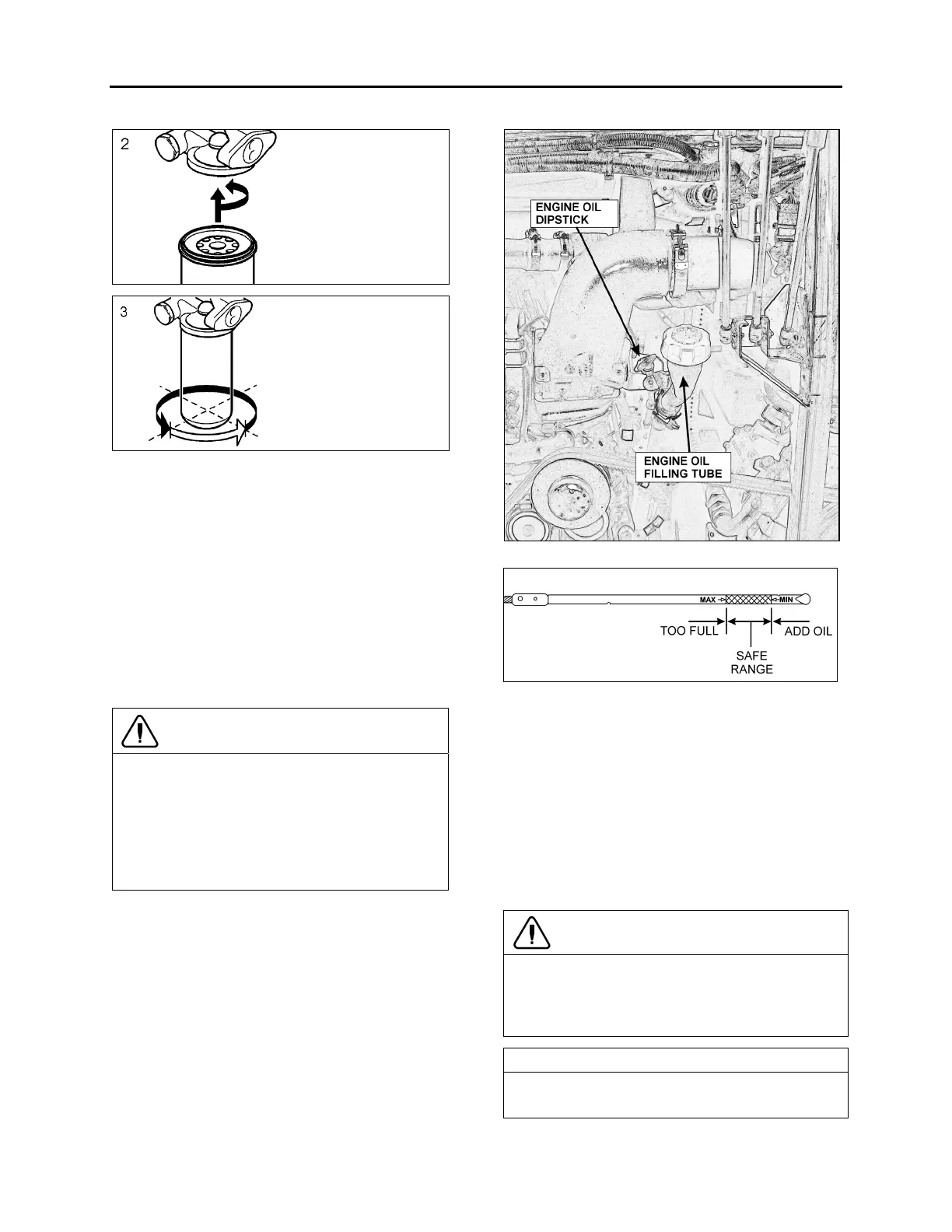

FIGURE 6: OIL FITER REPLACEMENT
• Start the engine and check for leaks
around the oil filter housing and filters.
• Check the oil level. Add approved engine
oil to the recommended level, if
necessary. Do not overfill.
1.3.11 Checking the Oil Level
Ensure that the vehicle is parked on level
ground before checking the oil level. Wait five
minutes after shutting off the engine and then
proceed with checking the oil.
CAUTION
DO NOT let the oil level fall below the marking
on the dipstick. DO NOT overfill so the level is
above the upper marking on the dipstick. This
could lead to excessive oil temperature and/or
poor crankcase breather performance. Add oil
through the oil filler pipe as required in order
to maintain level within the safe range.
FIGURE 7: ENGINE OIL FILLING TUBE
FIGURE 8: ENGINE OIL LEVEL DIPSTICK
1.4 POWER PLANT ASSEMBLY REMOVAL
To access the engine or engine-related
components, the vehicle power plant assembly
must be removed as a whole unit by means of a
slide-out cradle. The power plant assembly
includes the engine, transmission (including
retarder if so equipped), air compressor,
alternator and transmission oil cooler.
Remove the power plant assembly as follows:
CAUTION
Tag hoses and cables for identification before
disconnecting in order to facilitate reinstallation.
Plug all openings to prevent dirt from entering
the system.
NOTE
No parts within the EECU are serviceable. If
found defective, replace the EECU as a unit.

Volvo D13 Specifications

Engine Specifications

engine type	Diesel four cycle/in-line direct injection engine
number of cylinders	12.8 L in-line 6
operating range	1400-1800 RPM
peak power rating	435 HP (324 kW)
peak torque rating	1650 Ft-lb (2237 Nm)
low idle	600 rpm
fast idle	2150 rpm
maximum full load revolutions	1900 rpm

Oil Capacity

oil pan capacity low limit	25 quarts/24 liters
oil pan capacity high limit	34 quarts/32 liters
total engine oil capacity with filters	41 quarts/39 liters
