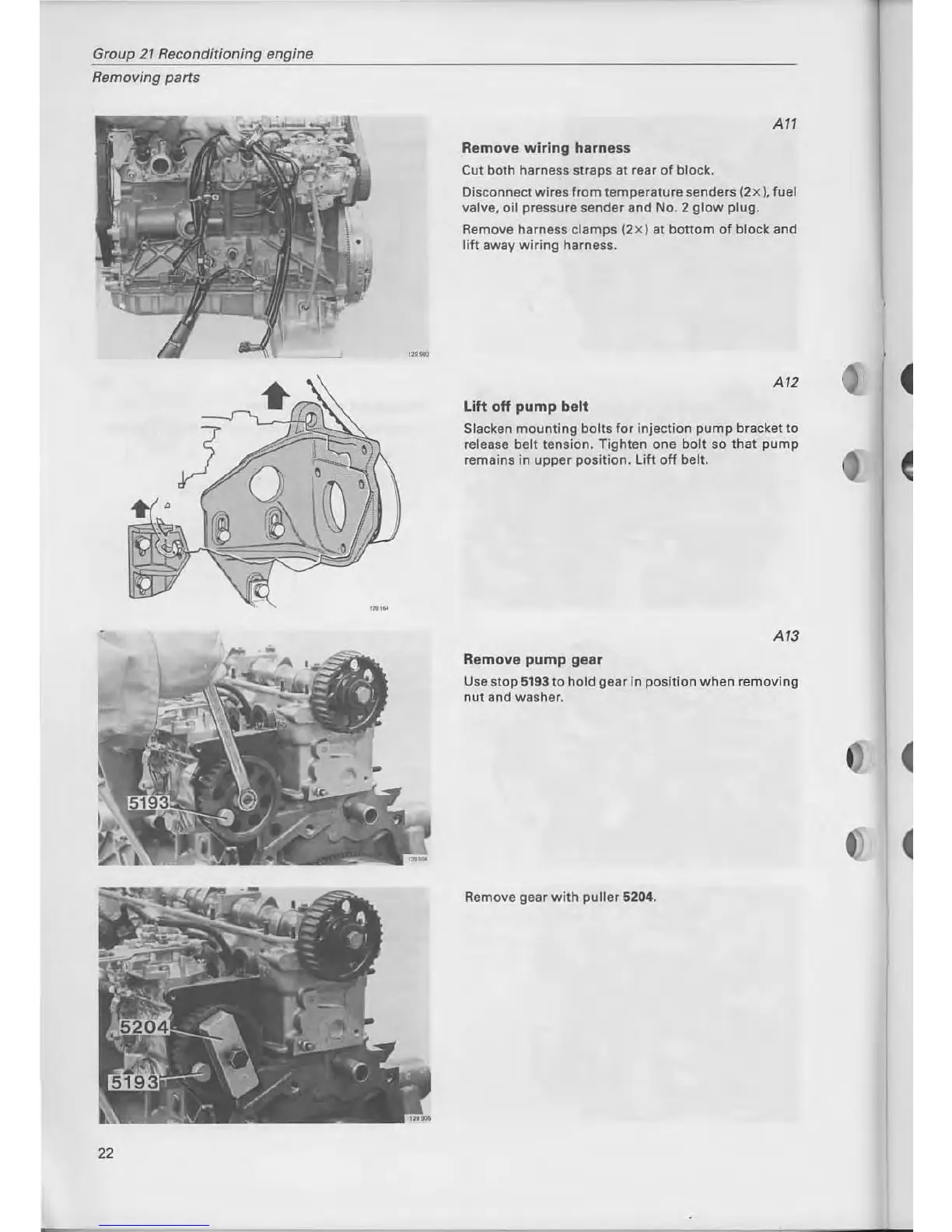

Group 27 Reconditioning engine
Removing parts
, .~
22
A11
Remove wiring harness
Cut both harness straps at rear of block.
Disconnect wires from temperature senders (2 x ). fuel
valve. oil
pressure sender and No. 2 glow plug.
Remove harness damps (2 x ) at bottom of block and
lift away wiring harness.
Af2
lift off pump belt
Slacken mounting bolts for injection pump bracket to
release bel t tension. Tighten one bolt so that pump
remains in upper position. Lift off belt.
A13
Remove pump gear
Use stop 5193 to hold gear in position when removing
nut and washer.
Remove gear
with puller 5204.
