Volvo D20 - Cylinder Head Cleaning and Inspection

Group 21 Reconditioning engine

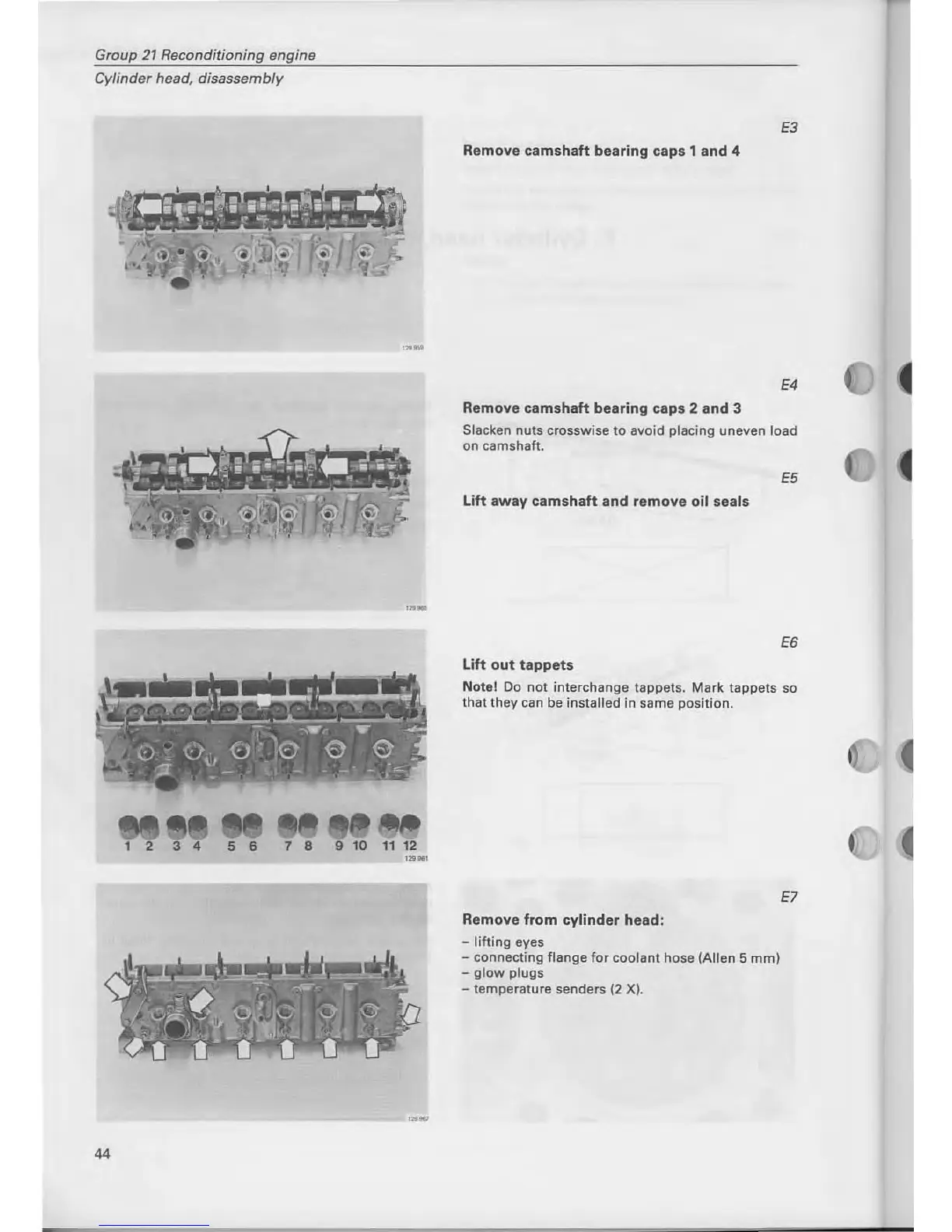

Cylinder head, disassembly
•••
•••
5 6 7 8 9 10 11 12
,m.,
----_ ...
44
E3
Remove camshah bearing caps 1 and 4
E4
Remove camshah bearing caps 2 and 3
Slacken nuts crosswise to avoid placing uneven load
on camshaft.
E5
lih away camshah and rem ove oit sea Is
E6
lih out tappets
Notel Do not interchange tappets. Mark tappets so
that they can be
installed in same position.
Remove from cylinder head:
- lifting eyes
- connecting flange for
coolant hose (Allen 5 mm)
- glow plugs
- temperature senders (2 XI.
E7
